Jointing with shank

PCD diamond router bit designed for grooving, contouring and surfacing operations on CNC machines with manual or mechanical feed. The two straight Z2 cutting edges and the steel body ensure cutting stability, controlled material removal and consistent surface finish.

• PCD cutting edges H 4 mm for long tool life
• Z2 configuration for balanced and productive cutting
• Steel body for robustness and reliability

PCD diamond router bit designed for grooving and contouring operations on CNC machines with manual or mechanical feed. The straight Z1 cutting edge and solid HW body ensure cutting stability, clean finishing and extended tool life.

• PCD cutting edge H 3.5 mm for long service life
• Straight Z1 geometry for controlled cutting
• Solid HW body for rigidity and precision

PCD diamond router bit designed for groove cutting and contouring on CNC machines with mechanical feed. The two straight Z2 cutting edges and solid carbide body provide balanced cutting action, improved stability and consistently high finish quality.

• PCD cutting edges H 3.5 mm for high durability
• Z2 configuration for higher stability and productivity
• Solid carbide body for rigidity and operational precision

PCD diamond router bit designed for contouring operations on compact and technical materials requiring superior edge quality. The alternating positive and negative cutting geometry ensures balanced cutting action and stable machining.

• PCD cutting edges H 3.5 mm for extended tool life
• Alternating positive/negative Z2 geometry for clean edges
• Solid HW body for rigidity and precision

PCD diamond cutter designed for nesting and contouring operations on compact and abrasive materials. The alternating positive and negative cutting edge geometry with chipbreaker provides a combined roughing and finishing action with high edge quality.

• Z2 PCD cutting edges H 3.5 mm with alternating positive/negative geometry
• Chipbreaker geometry for roughing and finishing in a single pass
• Heavy metal HDM body for maximum stability

PCD diamond cutter designed for high-performance CNC nesting and contouring operations. The Z4 configuration with alternating positive and negative cutting edges and chipbreaker ensures efficient material removal, cutting stability and consistent finish even on abrasive technical materials.

• Z4 PCD cutting edges with chipbreaker for high productivity
• Heavy metal HDM body for maximum stability
• Ideal for CNC nesting and precision contouring

PCD helical router bit designed for contouring and grooving on both CNC and manual machines. The Z1+1 layout with two helical sections offers a solid balance between material removal, cutting stability and surface finish, especially on coated panels.

• Z1+1 configuration with positive and negative helix
• PCD diamond insert H 2.5 mm, regrindable
• Ideal for laminated panels and coated MDF

PCD shank cutter Z1+1 with eco PCD tips H2,5mm resharpened up to 3 times two helicoidal wing, firt tip positive all the others negative, plunge tip in DIA steel body or HDM body. Suitable for working on chipboard panels, playwood, laminated, solid wood and MDF.

PCD Z1+1 helical router bit designed for CNC grooving and contouring on panels and wood-based materials. The cost-effective PCD insert H 2.5 mm, regrindable up to three times, combined with the steel body, offers a balanced solution in terms of performance, durability and cost.

• PCD insert H 2.5 mm, regrindable
• Z1+1 geometry with positive and negative helix
• Steel body for stability and reliability

PCD Z1+1 helical router bit designed for CNC contouring applications with shank. The PCD diamond insert H 4.5 mm, regrindable up to eight times, combined with the steel body ensures long tool life, cutting stability and consistent quality even on coated panels.

• PCD insert H 4.5 mm, regrindable up to 8 times
• Z1+1 geometry with positive and negative helix
• Steel body for rigidity and reliability

PCD shank cutter Z1+1 with eco PCD tips H2,5 mm resharpened up to 3 times three helicoidal wing, firt tip positive all the others negative, plunge tip in HW, HW body.

PCD Z2+2 helical router bit designed for shank contouring on CNC machines with mechanical feed. The 4 helical divisions and the pulling geometry with a first positive insert ensure efficient chip evacuation, cutting stability and consistent quality on panels and wood-based materials.

• Z2+2 with 4 helices for productive, stable machining
• PCD insert H 2.5 mm for good tool life and a clean finish
• Special steel body with HW drilling tip

PCD Z2+2 CNC/router bit for shank contouring with mechanical feed, designed for CNC routers and pantographs. The 4 helical divisions and pulling geometry deliver efficient chip evacuation, cutting stability and a clean finish on coated panels and plywood.

• PCD H 4.5 mm with up to 8 regrinds for extended service life
• Z2+2 and 4 helices for productive, stable CNC contouring
• Special steel body with HW drilling tip

Helical PCD CNC router bit developed for contouring and finishing on coated panels and technical materials. The cutting layout combines Z2+2 on the top and bottom with Z1+1 in the central section, ensuring stable cutting, controlled material removal and a clean finish even on abrasive substrates.

• PCD insert H 2.5 mm, regrindable up to 3 times
• Combined Z1+1 / Z2+2 geometry for a stable cut
• Special steel body for rigidity and precision

PCD CNC router bit designed for contouring on coated panels and technical materials. The Z2+2 geometry with 3 helical divisions delivers cutting stability, controlled material removal and a clean finish, even on abrasive substrates.

• PCD insert H 2.5 mm, regrindable up to 3 times
• Z2+2 geometry for stable, precise contouring
• Special steel body for rigidity and reliability

Helical PCD router bit designed for shank contouring on coated panels and technical materials. The Z2+2 geometry with 3 helical divisions provides cutting stability, controlled material removal and a clean finish, even on abrasive substrates.

• PCD insert H 4.5 mm, regrindable up to 8 times
• Z2+2 geometry for stable, precise contouring
• Special steel body for rigidity and reliability

Helical PCD router bit designed for high-performance contouring on coated panels and technical materials. The Z3+3 geometry with 3 helical divisions delivers high material removal rates, cutting stability and a clean finish even on abrasive substrates.

• PCD insert H 4.5 mm, regrindable up to 8 times
• Z3+3 geometry for high-performance CNC contouring
• Special steel body for maximum rigidity

PCD pantograph router bit designed for contouring on pantographs and CNC machines. The Z3+3 configuration and predominantly positive axial geometry promote excellent chip evacuation and a clean finish, even on coated panels.

• PCD inserts H 4.5 mm, regrindable up to 8 times
• Z3+3 geometry for precise, stable contouring
• Special steel body for rigidity and long service life

Helical PCD router bit designed for contouring on pantographs and CNC machines. The 30° axial angle ensures superior edge finishing and excellent surface quality on coated panels.

• PCD inserts H 4.5 mm, regrindable up to 8 times
• Z2+2 geometry for precise, stable contours
• 30° axial angle for high-quality finishes

PCD shank cutter Z2+2 with PCD tips H4,5 mm resharpened up to 8 times four helicoidal wing, firt tip positive all the others negative, plunge tip in PCD, cutting angle 30° steel body. Suitable for working on chipboard panels, playwood, laminated, solid wood and MDF.

Helical CNC diamond PCD router bit designed for contour routing on CNC machines. Predominantly positive axial geometry with a 30° angle ensures efficient chip evacuation toward the shank and superior edge finish.

• PCD inserts H4.5 mm regrindable up to 8 times
• Z2+2 geometry for stable contours
• 30° axial angle for high-quality finishing

PCD CNC router bit Z2+2 with a 45° axial angle, designed for high-precision contouring operations on wood-based panels and derivatives. The use of polycrystalline diamond ensures excellent surface finish and extended tool life even on abrasive materials.

• PCD cutting edge H4.5 mm for long service life
• 45° axial angle for clean and stable finishes
• Ideal for MDF, plywood and coated panels

PCD pantograph router bit H4.5 mm designed for precise CNC contouring on wood-based panels.

• Regrindable PCD cutting edges
• 45° axial angle for clean finishing
• Ideal for MDF and laminated panels

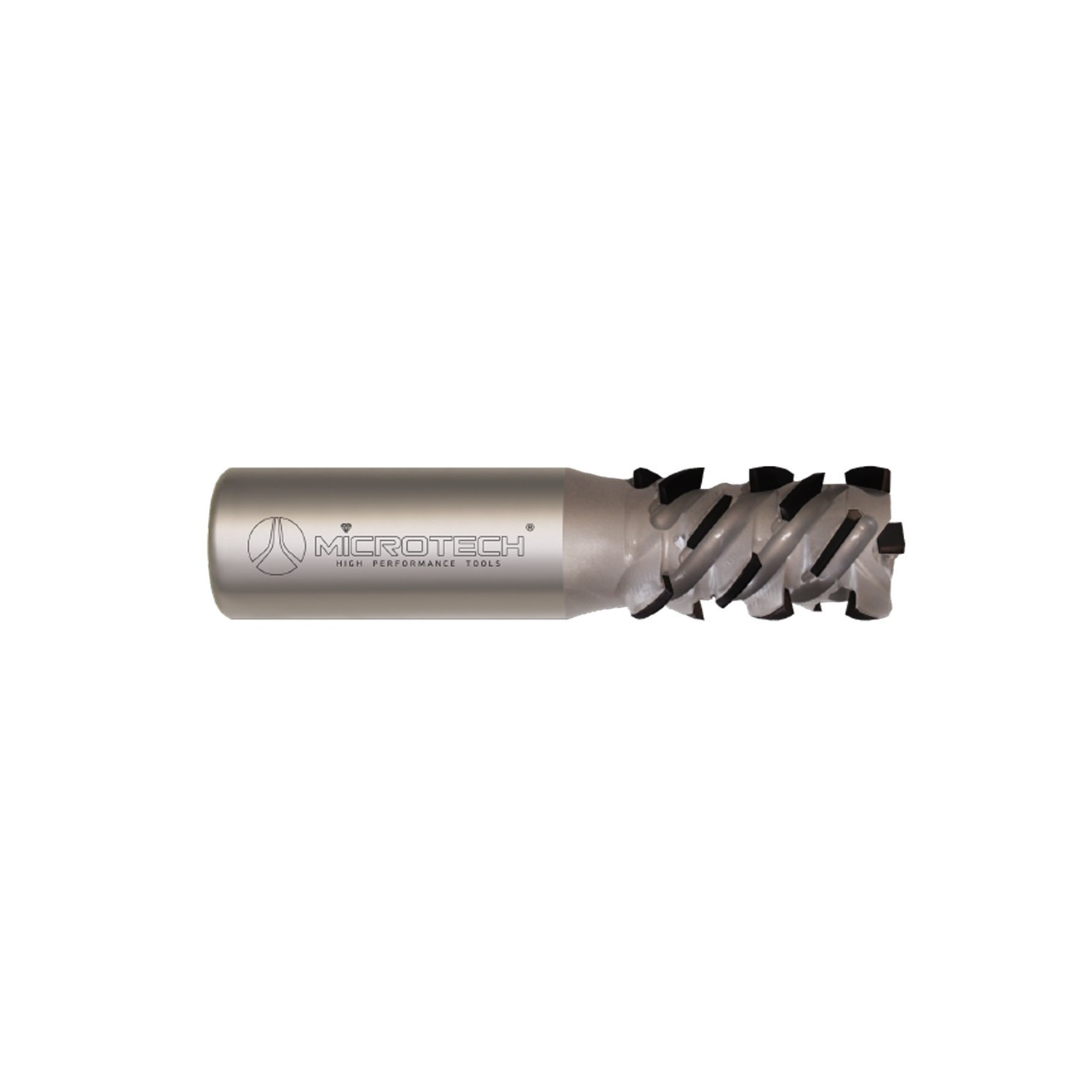

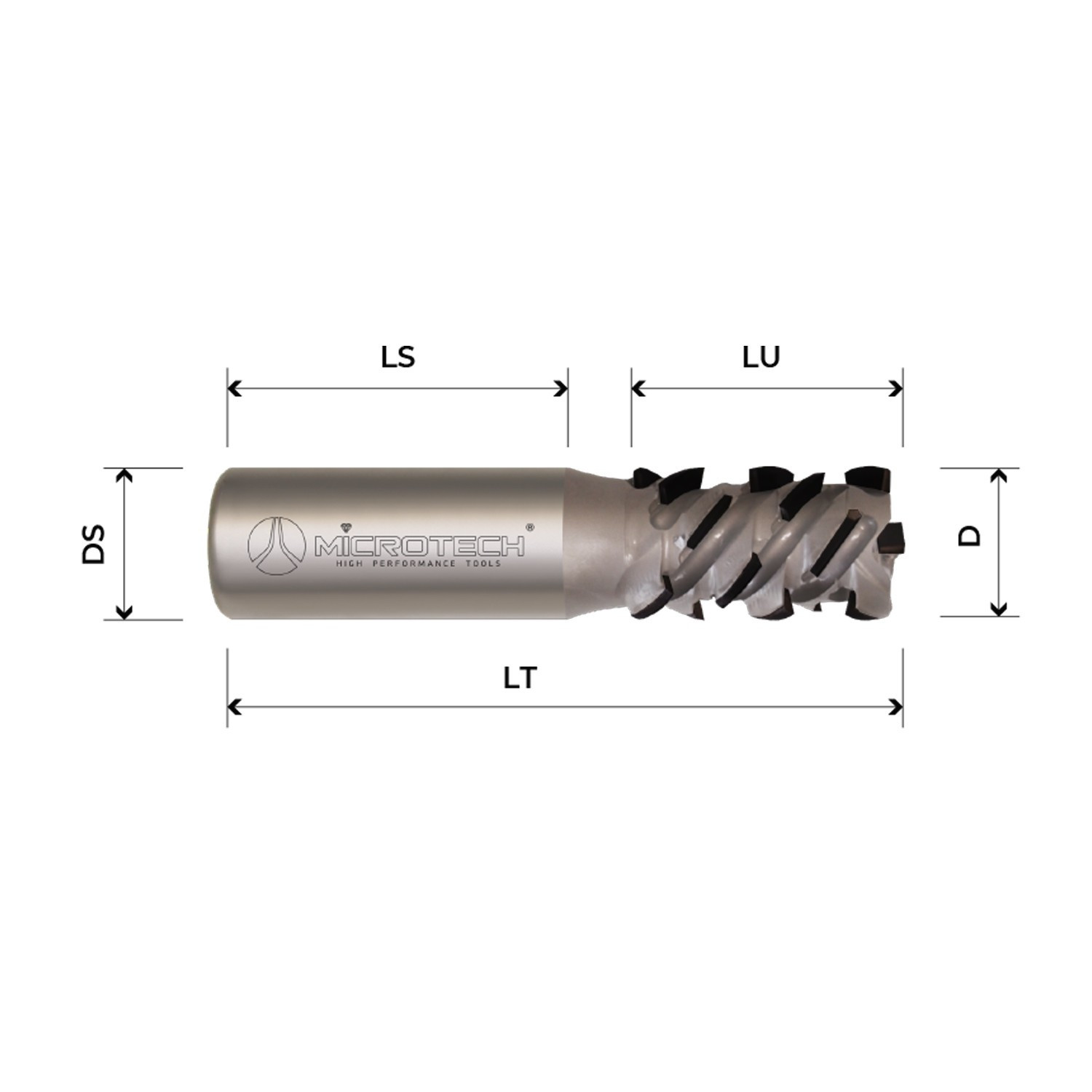

PCD router bit designed for high-precision contouring on coated panels, MDF and plywood. The 54.9° axial angle ensures optimal chip evacuation and clean surfaces even against the grain.

• High-resistance PCD cutting edges H4.5 mm
• Predominantly positive helix for superior finish on delicate panels
• Ideal for CNC routers and pantographs

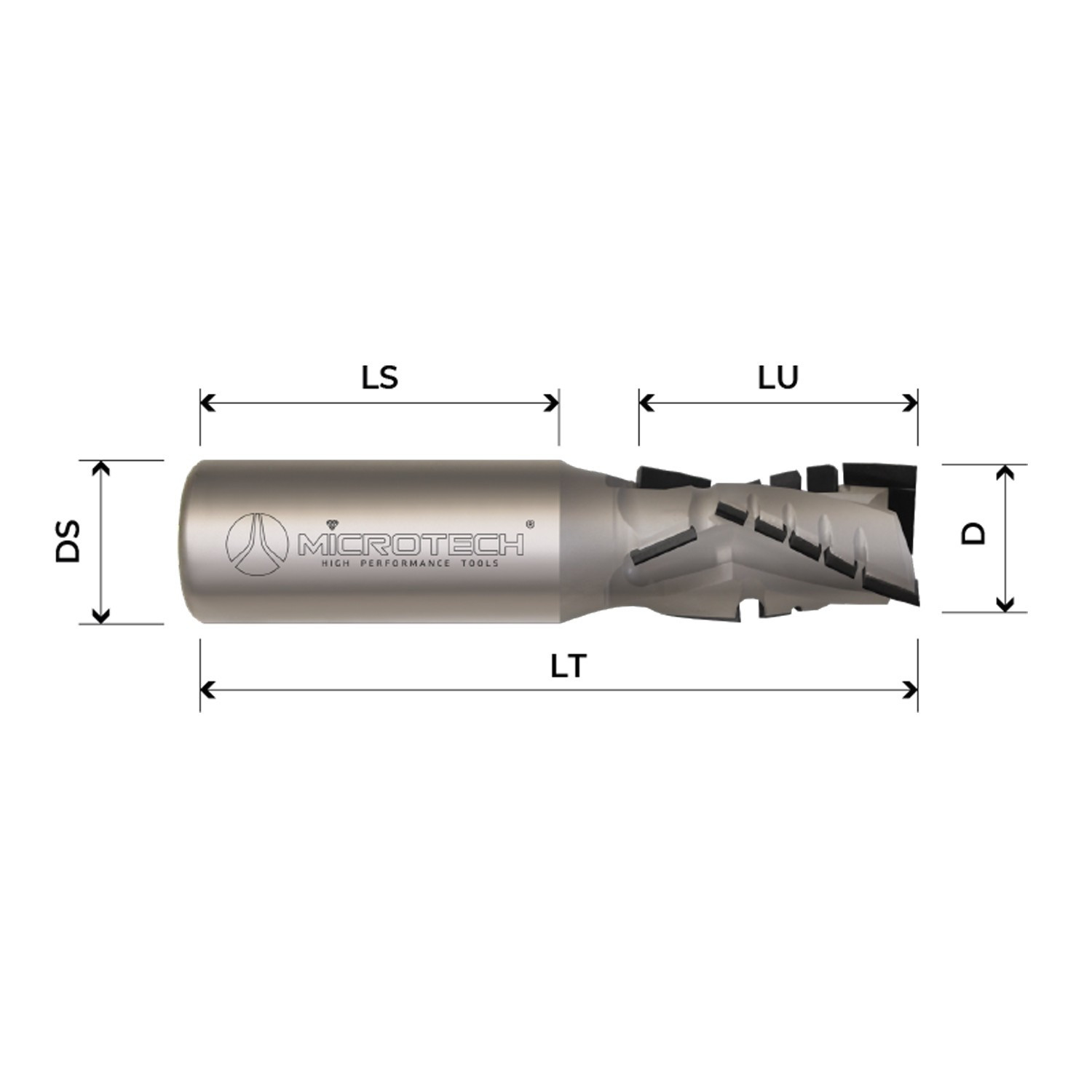

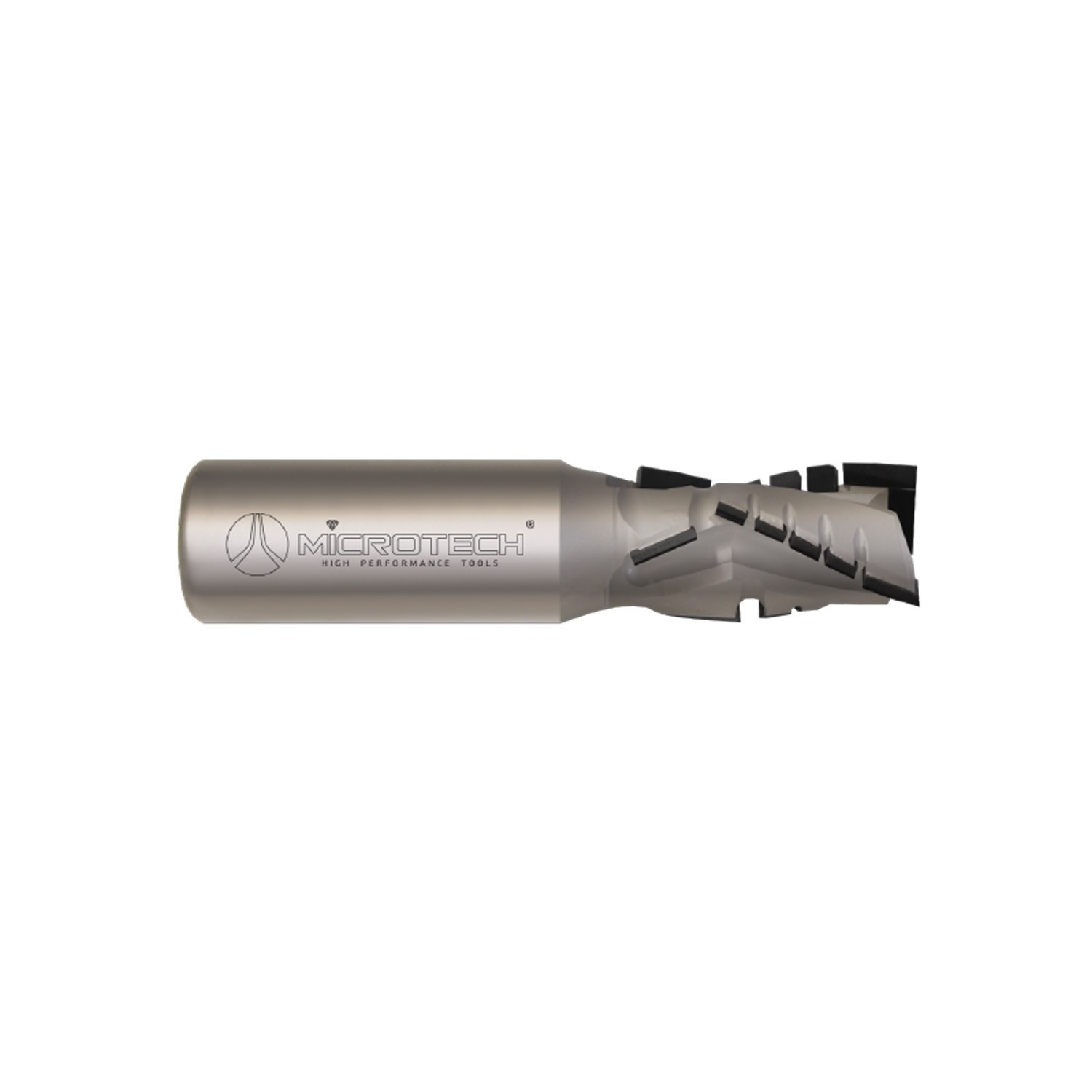

PCD diamond tool for grooving and contour cutting on CNC routers with mechanical feed. Z3+3 geometry and 30° axial angle deliver stable cutting and excellent surface finish on coated and abrasive panels.

• Resharpenable PCD tips H4.5 mm (up to 8)
• Z3+3 with 6 spirals for smooth, precise routing
• Special steel body for rigidity and long service life
