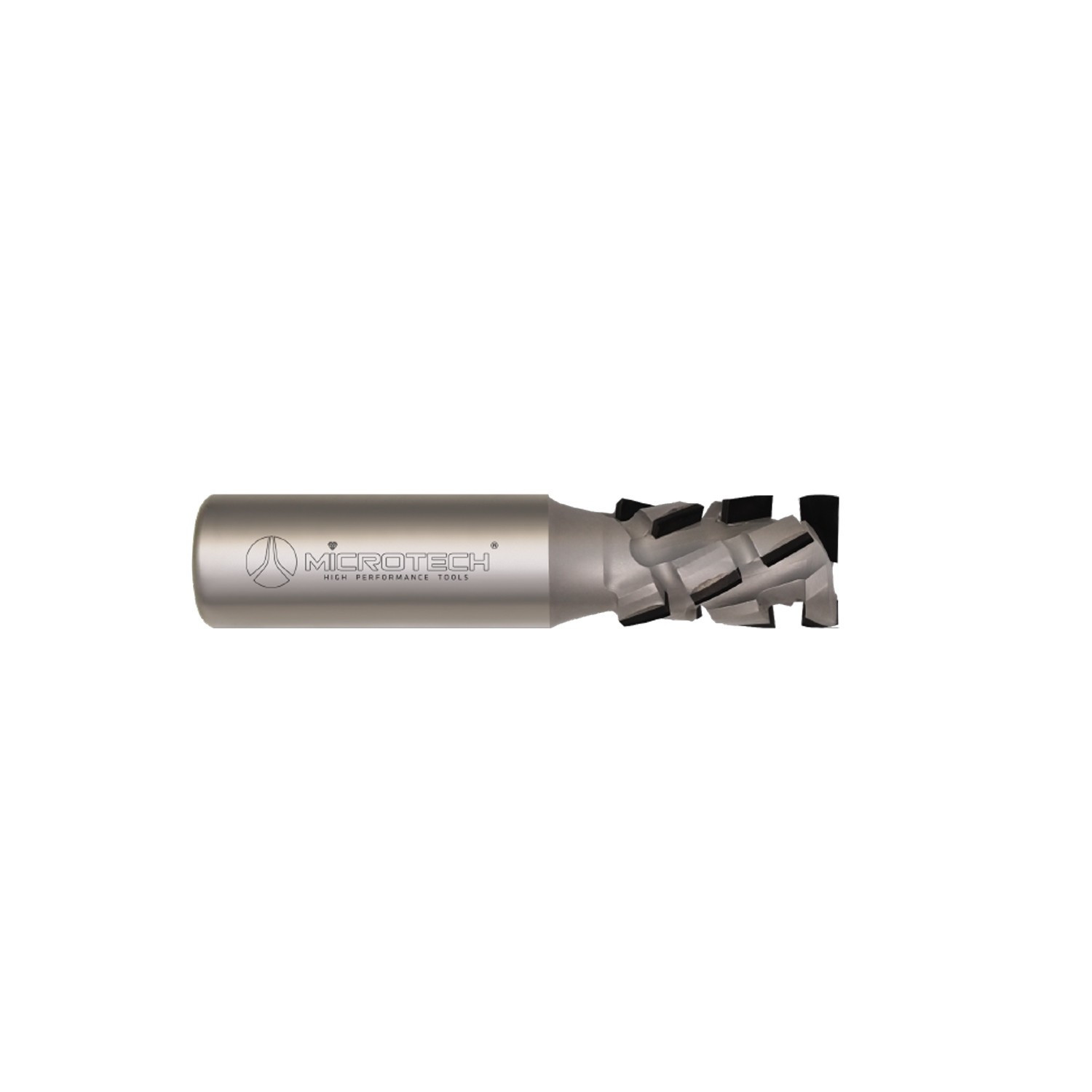

PCD helical diamond router bit H4.5 Z2+2 30° for thin panels with 5mm positive PCD lead

The FPD2057 STARCUT series is a PCD helical diamond router bit with H4.5mm and Z2+2 layout, developed for shank grooves and shank profiling on thin panels with mechanical feed. Its geometry features 4 helical divisions with a 5mm positive pulling lead insert followed by negative inserts, a combination that improves edge entry, reduces chipping risk and keeps the cut stable throughout the operation.

Main features:

• PCD insert H4.5mm resharpenable up to 8 resharpenings

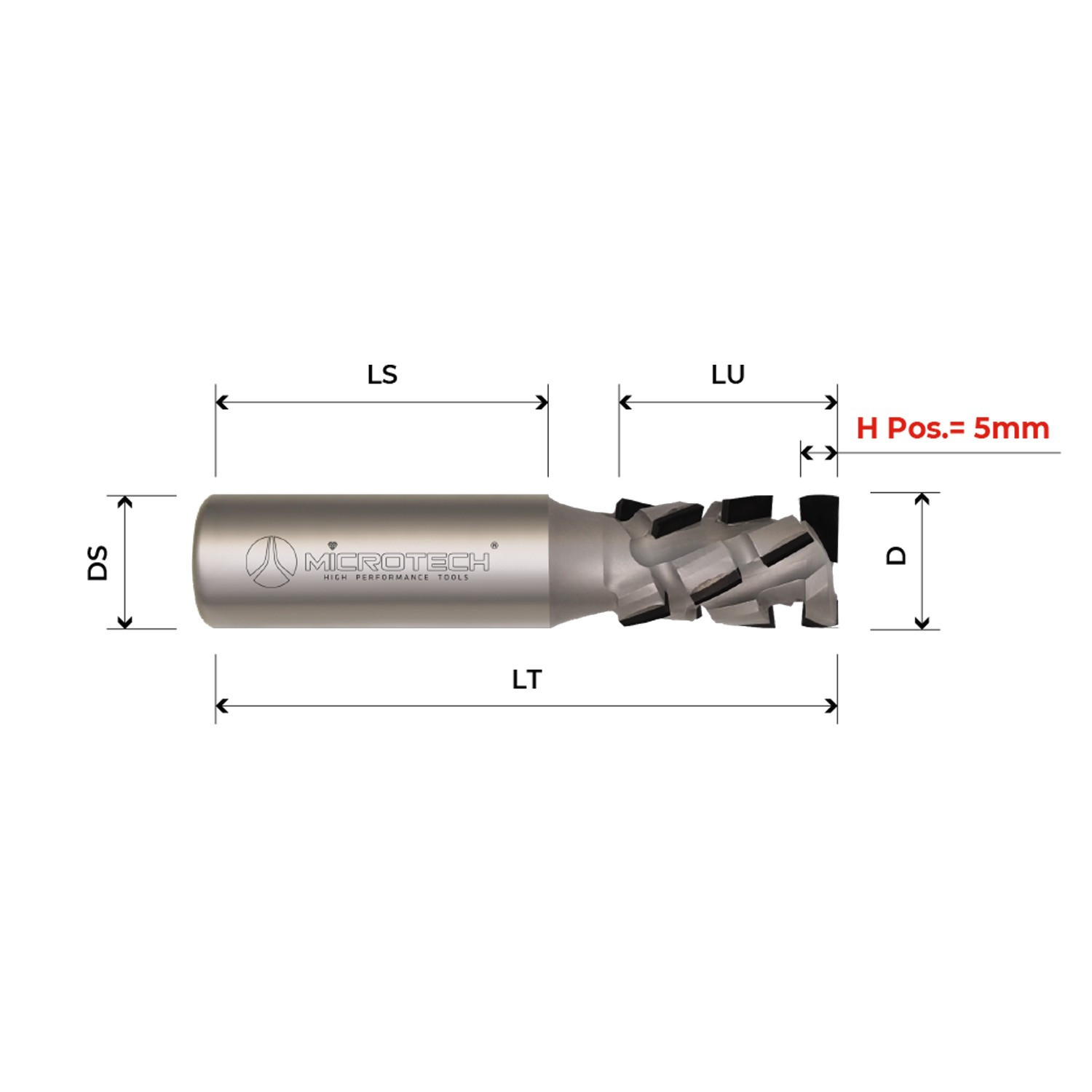

• Z2+2 with 5mm positive lead insert and remaining negative inserts
• 30° axial angle for high quality finish on coated panels
• PCD diamond center cutting tip for accurate, clean entry
• Special steel body for rigidity and consistent precision

Benefits:

Excellent finish on thin and coated panels, smoother cutting and reduced fraying or chipping. The positive negative mix improves edge quality and supports continuous mechanical feed machining.

Suitable for Corian, Fiber cement, Gypsum fiberboard, HPL, Hardwood, Softwood, MDF HDF, Laminated MDF HDF, Double sided laminated MDF HDF, Plastic materials, Plywood, Laminated plywood, Double sided laminated plywood, Laminated chipboard, Double sided laminated chipboard, Lacquered surfaces.
