Jointing with shank

PCD diamond nesting router bit designed for high-productivity CNC machining on MDF, plywood and coated chipboard panels. The Z2+2 geometry and a 25° axial angle ensure efficient chip evacuation and clean finishing even in intensive nesting cycles.

• Specifically designed for CNC nesting operations
• PCD diamond H 3.5 mm for long tool life
• High stability and efficient chip evacuation

PCD shank cutter Z2+2 for nesting, with PCD tips H3,5 mm resharpened up to 3 times, two helicoidal wing, firt tip positive all the others negative, plunge tip in PCD, cutting angle 25°, steel body.

Regrindable PCD diamond router bit with interrupted helix, three divisions and three cutting edges engaged at the top and bottom. Predominantly negative helix, heavy-metal HDM body, PCD height H 3.5 mm. Built for CNC nesting: high feed rates, efficient chip extraction, good finish and low noise thanks to positive/negative cutting edges.

• PCD Z3+3 cutting edges for stable, continuous cutting
• Heavy-metal body for maximum rigidity
• Ideal for high-speed nesting

Re-sharpening shank cutter with split tips on three helicoidal wings, three engaged cutters on top and bottom parts, mainly negative helix, STEEL body, PCD H3,5 mm. Tool suitable for nesting operation, cutters positive/negative, high working speed, good evaquation of chips, excellent finishing and low noise.

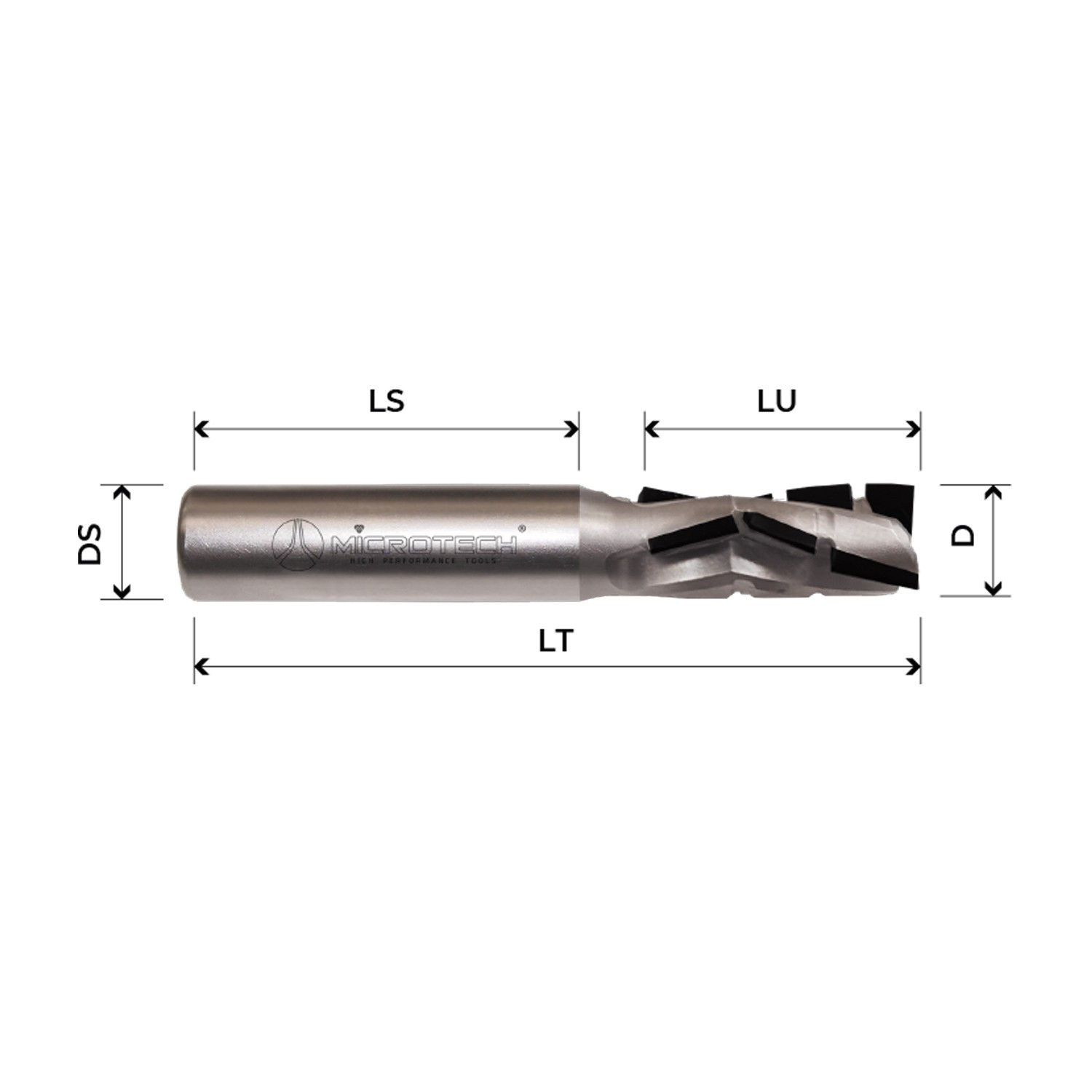

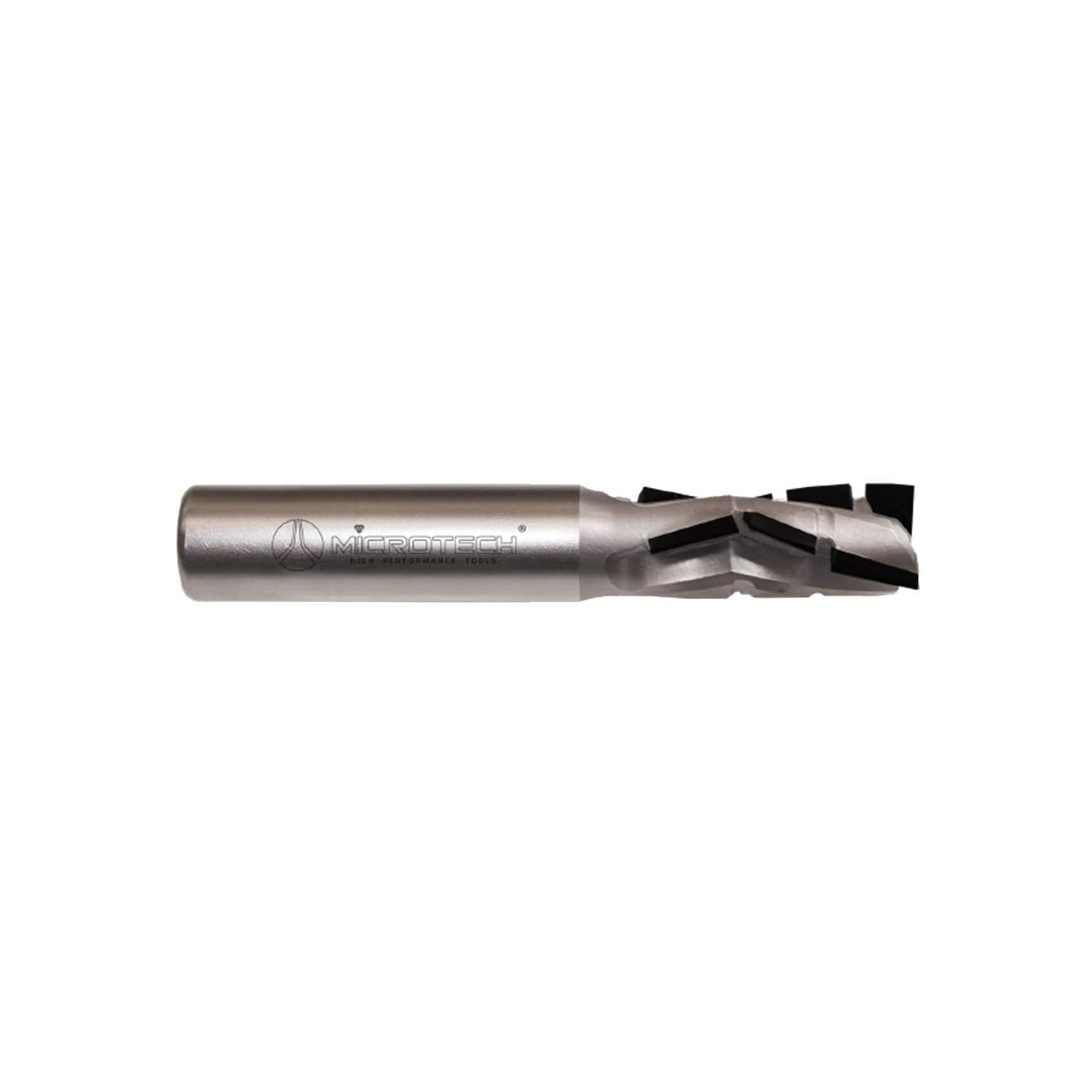

Professional regrindable PCD diamond cutter with interrupted helix and three effective cutting edges, designed for nesting and shank contouring on CNC machining centres. The heavy metal body and predominantly positive helix ensure stability, efficient chip evacuation and consistent surface quality even at high feed rates.

• Z3+3 PCD cutting edges with 3.5 mm height for long service life
• Interrupted helix for efficient chip evacuation
• Heavy metal body for rigidity and cutting accuracy

Re-sharpening shank cutter with split tips on six helicoidal wings, three engaged cutters on top and bottom parts, mainly negative helix, HDM (High density metal) body, PCD 3,5 mm. Tool suitable for nesting operation on chipboard panels laminate, coated or on MDF, OSB, cutters positive/negative, high working speed, good evaquation of chips, excellent finishing and low noise.

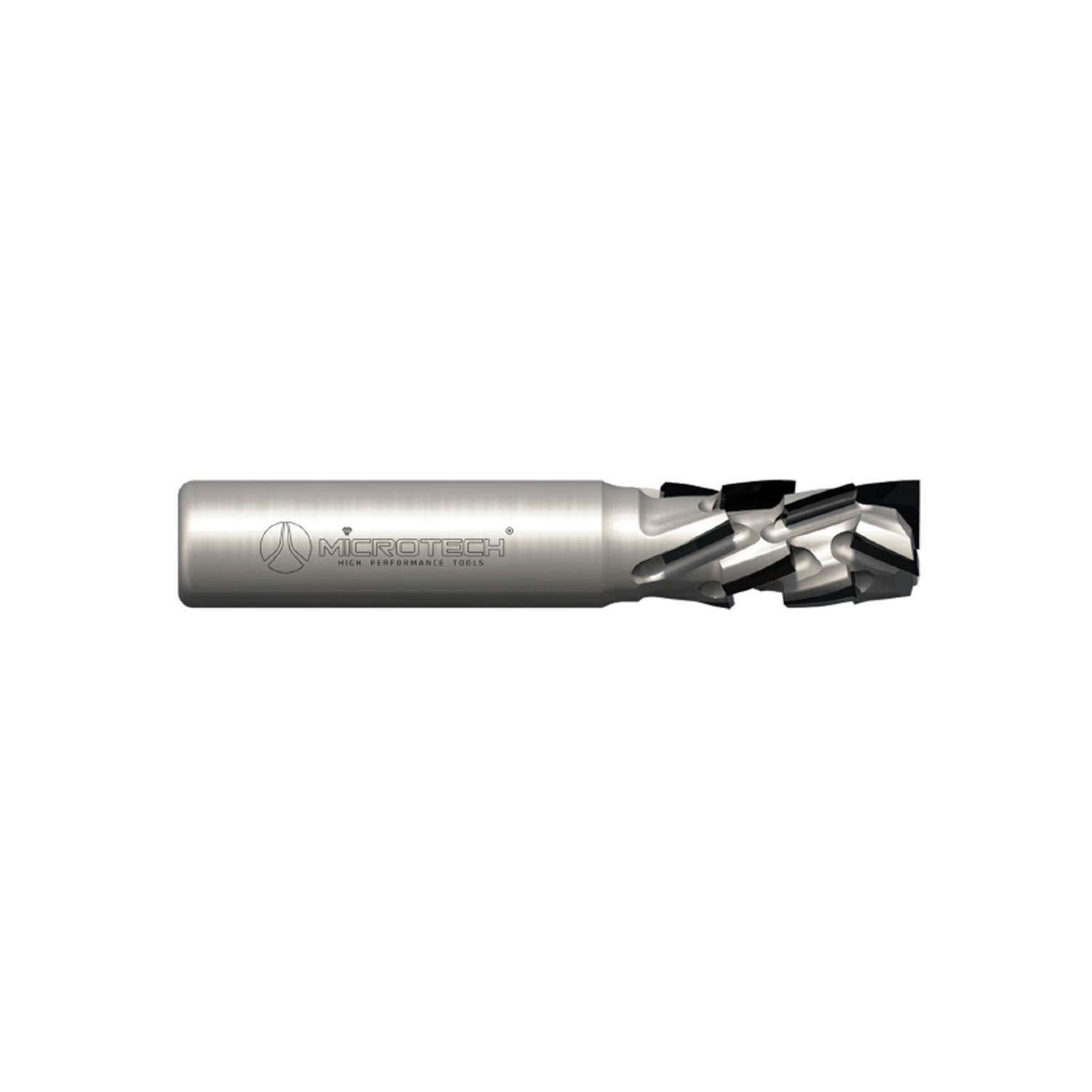

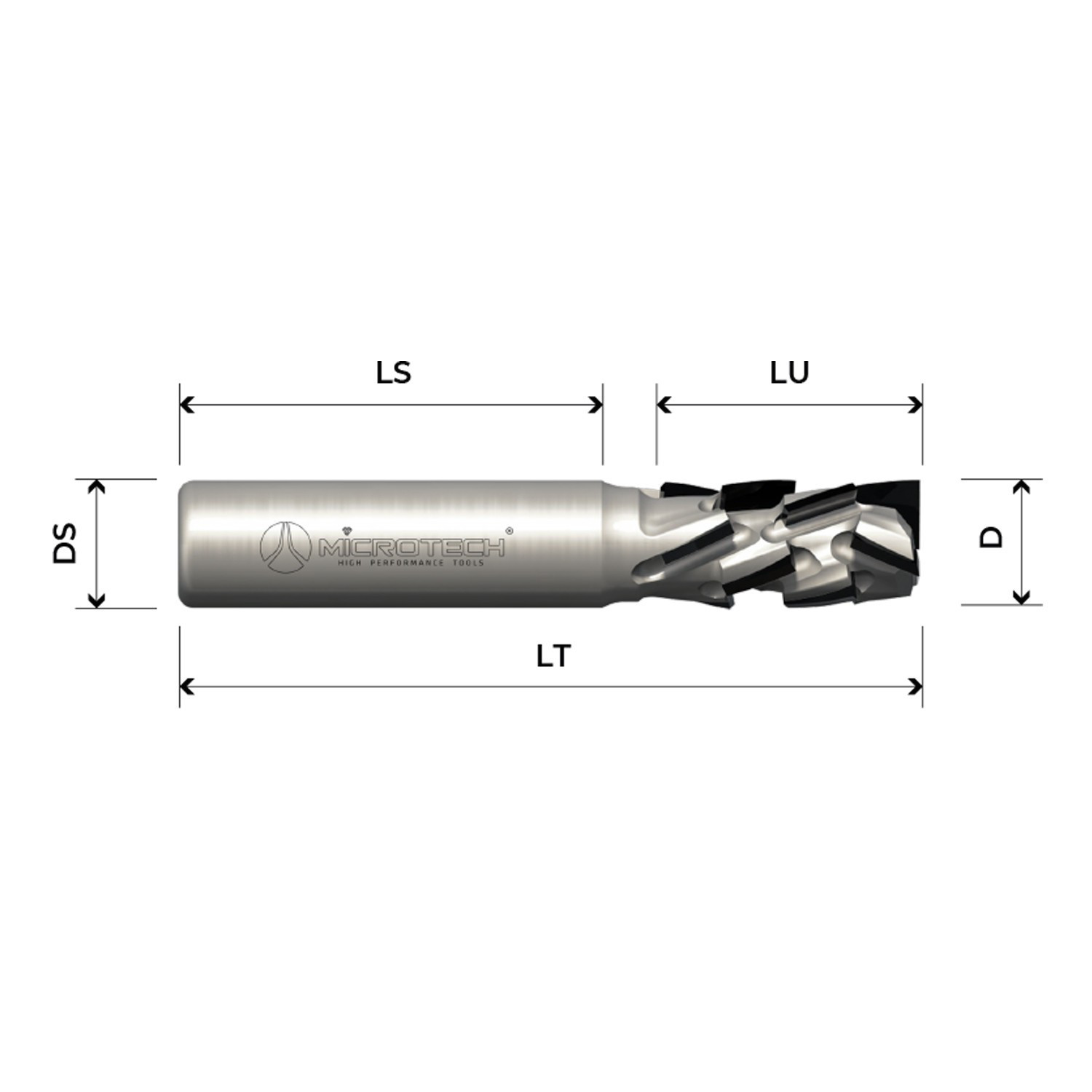

Professional PCD diamond cutter with six-division helix and three effective cutting edges, designed for nesting and shank contouring on CNC machining centres. The predominantly negative axial angle and heavy metal body ensure stability, chip control and consistent surface quality on coated panels.

• Z3 PCD cutting edges with 3.5 mm height for long service life
• Six-division helix with negative angle for controlled finish
• Heavy metal body for rigidity and accuracy

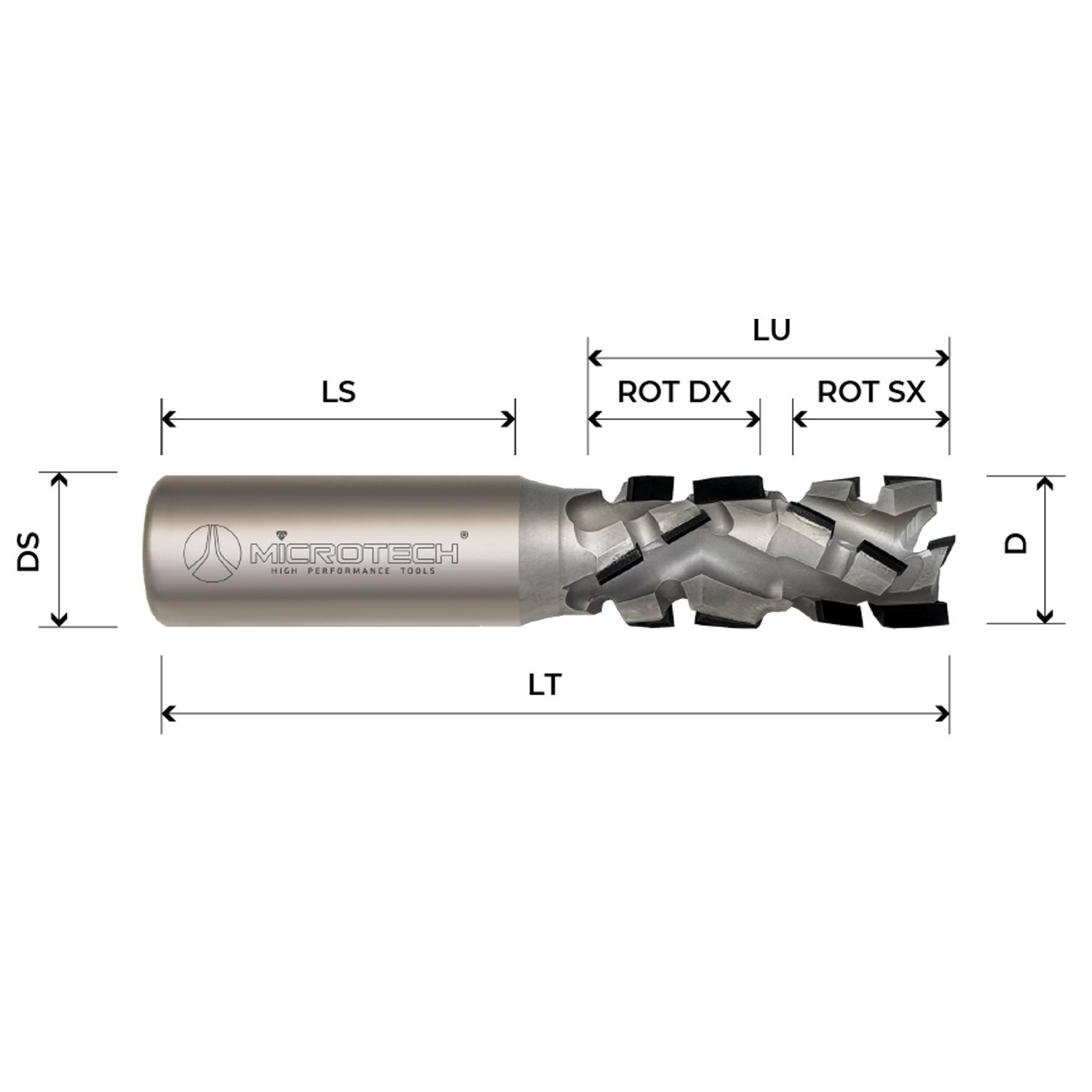

PCD diamond cutter with right/left double rotation designed for contouring laminated panels where high surface quality on both sides is required. The combination of positive and negative cutting edges ensures balanced cutting action, stability and reduced chipping.

• PCD inserts 4.5 mm regrindable up to 8 times
• Right/left double rotation for superior top and bottom finish
• Special steel body for rigidity and precision

PCD diamond cutter with right/left double rotation designed for contouring laminated panels where high surface quality on both sides is required. The helical geometry with balanced cutting edges ensures stable cutting, reduced chipping and smooth machining.

• PCD inserts 4.5 mm regrindable up to 8 times
• Right/left double rotation for superior top and bottom finish
• 3 helical divisions for stable, smooth cutting

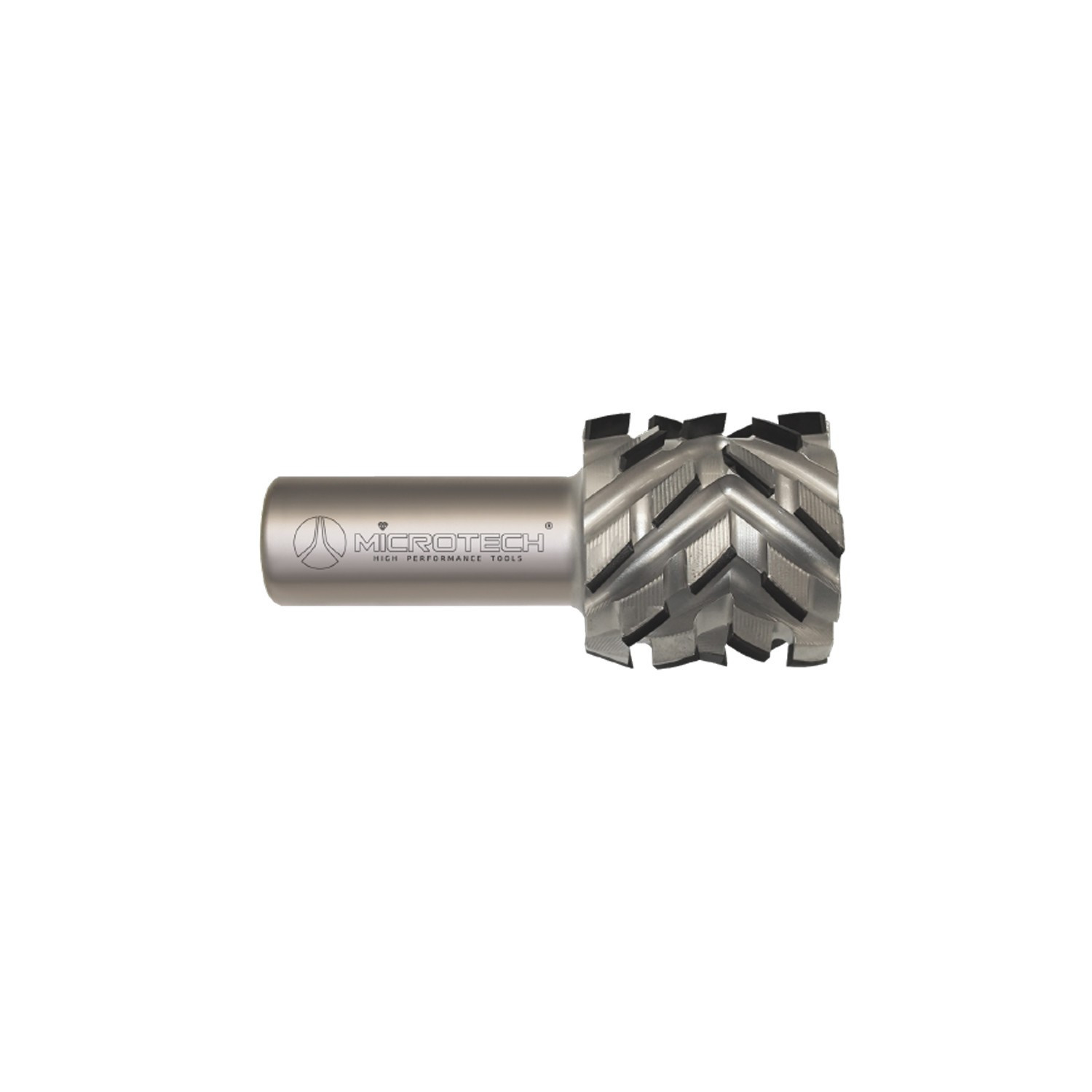

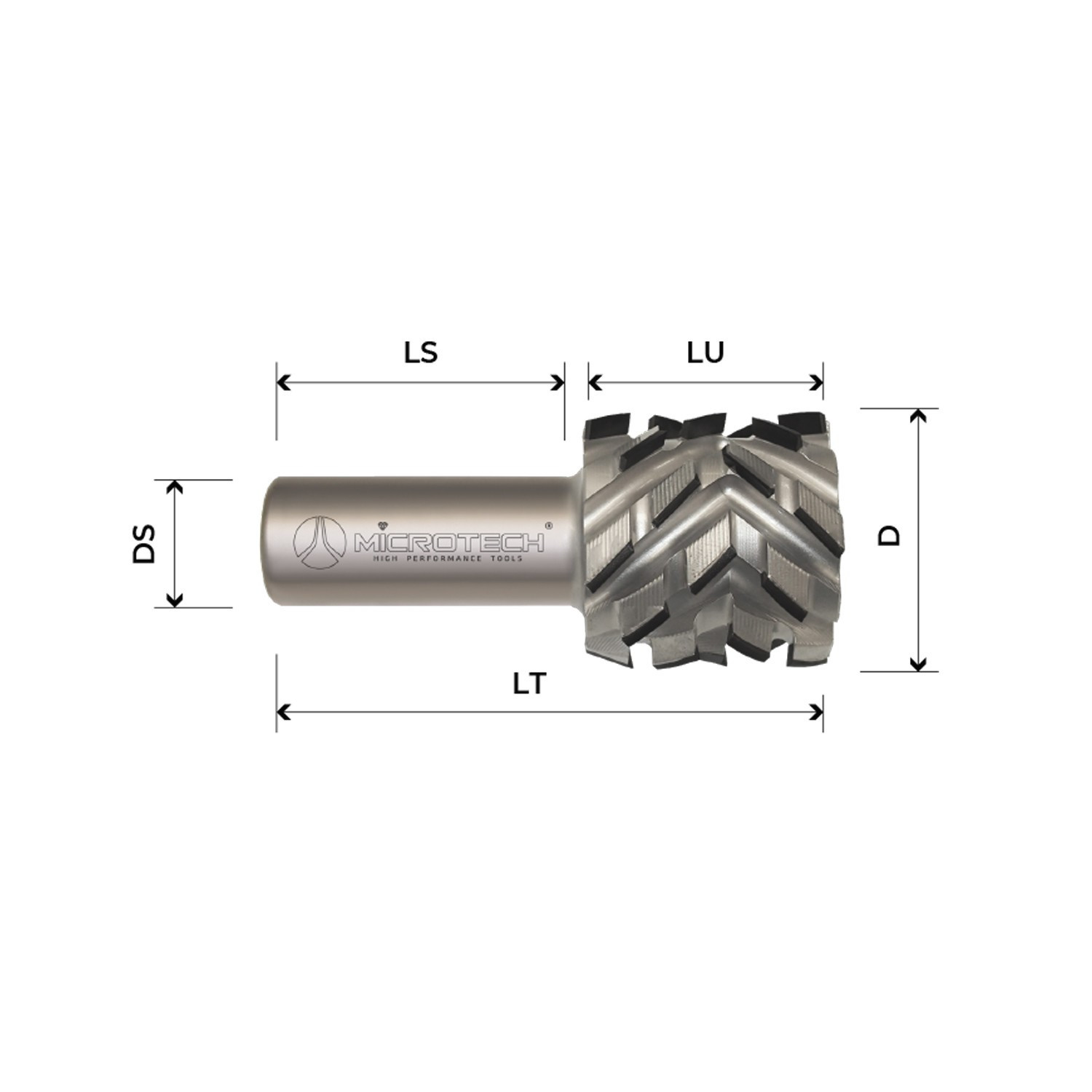

PCD diamond tool developed for edge finishing and trimming on laminated panels where high edge quality is required. The helical layout with centre-converging symmetry and 40° axial angle delivers stable cutting and a uniform surface even in intensive CNC cycles.

• PCD inserts H 4.5 mm regrindable up to 8 times
• 8 helical divisions with symmetric geometry for consistent finish
• Steel body for rigidity and accuracy with mechanical feed

PCD rectifying shank cutter Z3+3 with PCD tips H4,5 mm resharpened up to 6 times, cutting angle 54,9°. Suitable for working on laminated chipboard panels, laminated MDF and laminated playwood.

HW milling cutters Z1 positive. Suitable for routing, cutting and profiling on solid wood, laminated chipboard panels and plastic material.

HW milling cutters Z1 positive. Suitable for routing, cutting and profiling on solid wood, laminated chipboard panels and plastic material.

HW milling cutters Z2 positive. Suitable for routing, cutting and profiling on solid wood, laminated chipboard panels and plastic material.

HW milling cutters Z2 negative. Suitable for routing, cutting and profiling on solid wood, laminated chipboard panels and plastic material.

HW milling cutters Z3 positive. Suitable for routing, cutting and profiling on solid wood, laminated chipboard panels and plastic material.

HW milling cutters Z3 negativo for roughing. Suitable for routing, cutting and profiling on solid wood, laminated chipboard panels and plastic material.

Helicoidal solid carbite router Z2+2 with positive/negative spiral cut. Suitable for routing, cutting and shape the panels on solid wood, chipboard and plastic materials.

Solid carbite high speed router Z2+2 with positive/negative spiral cut. Suitable for nesting operation and also routing, cutting and shape the panels on solid wood, chipboard, MDF and playwood material.

HW milling cutters Z3 positive for roughing.Suitable for routing, cutting and profiling on solid wood, laminated chipboard panels and plastic material.

HW milling cutters Z3 negativo for roughing. Suitable for routing, cutting and profiling on solid wood, laminated chipboard panels and plastic material.

FRESA ELICOIDALE HW POSITIVA D.6X22 SX ATT.6 Z.2 LT.65
