PCD circular saw blade for alternate bevel grooving

Name: PCD circular saw blade for alternate bevel grooving
Brand: VIMA
Price: 214.72 EUR
Availability: InStock

Product Code: LAM1017

Serie: GROOVING WITH BORE

PCD circular blade engineered for grooving applications with alternate bevel sharpening (DX/SX). The H6 PCD tip delivers superior durability and clean cutting results on MDF/HDF, particle board and plywood.

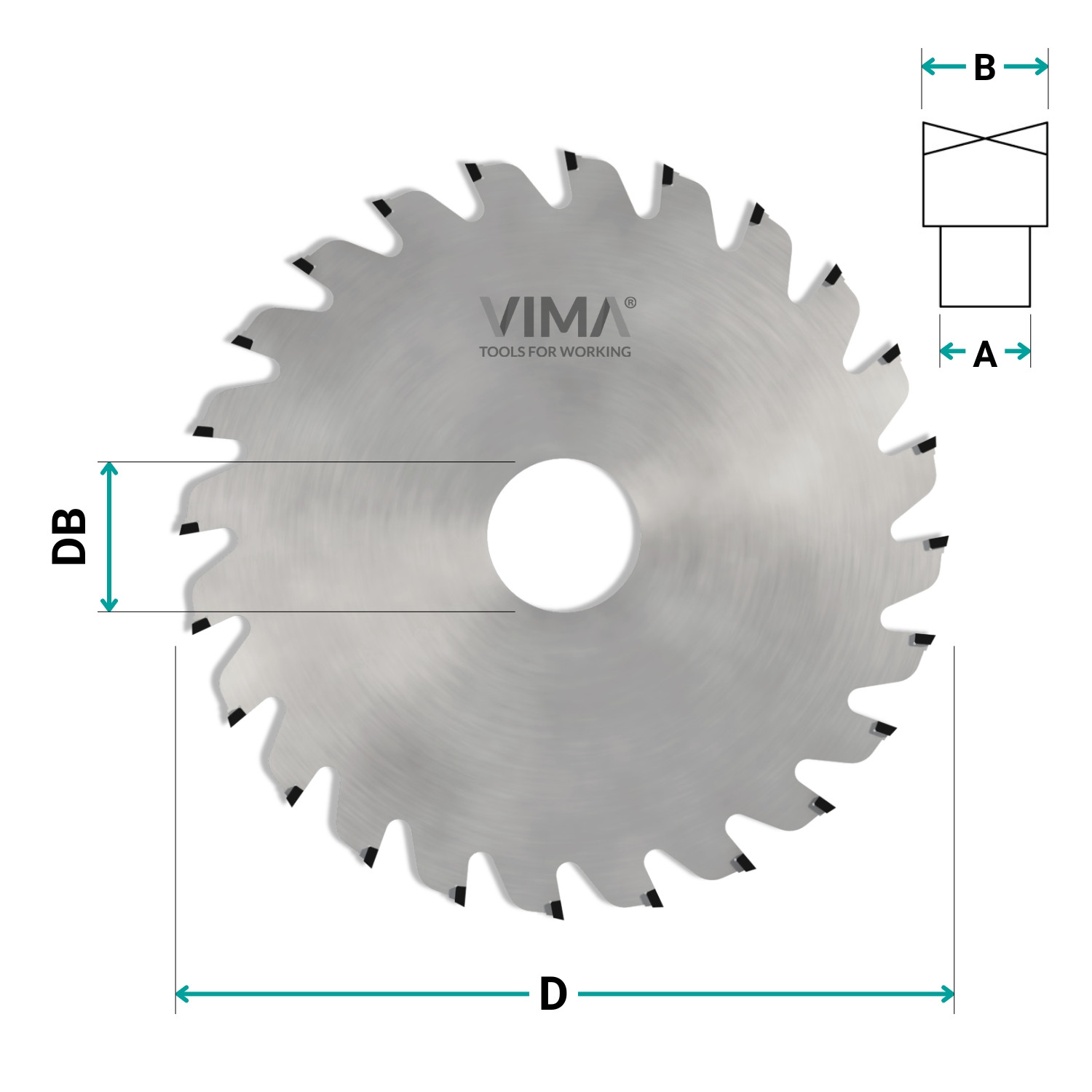

D (Ø)

DB (hole Ø)

B (thicn.)

A (tickn.)

FT / PH

Z TOT.

ALFA

100% Money-Back Guarantee
Fast support via WhatsApp +39 349 7760165
FREE Shipping on all orders over €69 within Italy
Orders placed before 2:00 PM (with items in stock) are shipped the same day

Scroll the TABLE left and right

Reference	D (Ø)	DB (hole Ø)	B (thicn.)	A (tickn.)	FT / PH	Z TOT.	ALFA	Price	Volume discounts	Cart
LAM1017001	100,00	20	3	2,20	-	12	10°	~~€220.00~~ €176.00 Tax excl.	-	cart
LAM1017002	100,00	20	3.2	2,20	-	12	10°	~~€221.00~~ €176.80 Tax excl.	-	cart
LAM1017003	100,00	20	3.5	2,20	-	12	10°	~~€223.00~~ €178.40 Tax excl.	-	cart
LAM1017004	100,00	20	4	2,20	-	12	10°	~~€227.00~~ €181.60 Tax excl.	-	cart
LAM1017005	100,00	20	4.5	3,00	-	12	10°	~~€231.00~~ €184.80 Tax excl.	-	cart
LAM1017006	100,00	20	5	3,00	-	12	10°	~~€234.00~~ €187.20 Tax excl.	-	cart
LAM1017007	100,00	20	6	4,00	-	12	10°	~~€241.00~~ €192.80 Tax excl.	-	cart
LAM1017008	100,00	30	3	2,20	-	12	10°	~~€220.00~~ €176.00 Tax excl.	-	cart
LAM1017009	100,00	30	3.2	2,20	-	12	10°	~~€221.00~~ €176.80 Tax excl.	-	cart
LAM1017010	100,00	30	3.5	2,20	-	12	10°	~~€223.00~~ €178.40 Tax excl.	-	cart
LAM1017011	100,00	30	4	2,20	-	12	10°	~~€227.00~~ €181.60 Tax excl.	-	cart
LAM1017012	100,00	30	4.5	3,00	-	12	10°	~~€231.00~~ €184.80 Tax excl.	-	cart
LAM1017013	100,00	30	5	3,00	-	12	10°	~~€234.00~~ €187.20 Tax excl.	-	cart
LAM1017014	100,00	30	6	4,00	-	12	10°	~~€241.00~~ €192.80 Tax excl.	-	cart
LAM1017015	125,00	20	3	2,20	-	12	10°	~~€220.00~~ €176.00 Tax excl.	-	cart
LAM1017016	125,00	20	3.2	2,20	-	12	10°	~~€221.00~~ €176.80 Tax excl.	-	cart
LAM1017017	125,00	20	3.5	2,20	-	12	10°	~~€223.00~~ €178.40 Tax excl.	-	cart
LAM1017018	125,00	20	4	2,20	-	12	10°	~~€227.00~~ €181.60 Tax excl.	-	cart
LAM1017019	125,00	20	4.5	3,00	-	12	10°	~~€231.00~~ €184.80 Tax excl.	-	cart
LAM1017020	125,00	20	5	3,00	-	12	10°	~~€234.00~~ €187.20 Tax excl.	-	cart
LAM1017021	125,00	20	6	4,00	-	12	10°	~~€241.00~~ €192.80 Tax excl.	-	cart
LAM1017022	125,00	30	3.2	2,20	-	12	10°	~~€221.00~~ €176.80 Tax excl.	-	cart
LAM1017023	125,00	30	3.5	2,20	-	12	10°	~~€223.00~~ €178.40 Tax excl.	-	cart
LAM1017024	125,00	30	4	2,20	-	12	10°	~~€227.00~~ €181.60 Tax excl.	-	cart
LAM1017025	125,00	30	4.5	3,00	-	12	10°	~~€231.00~~ €184.80 Tax excl.	-	cart
LAM1017026	125,00	30	5	3,00	-	12	10°	~~€234.00~~ €187.20 Tax excl.	-	cart
LAM1017027	125,00	30	6	4,00	-	12	10°	~~€241.00~~ €192.80 Tax excl.	-	cart
LAM1017028	125,00	20	3	2,20	-	18	10°	~~€281.00~~ €224.80 Tax excl.	-	cart
LAM1017029	125,00	20	3.2	2,20	-	18	10°	~~€283.00~~ €226.40 Tax excl.	-	cart
LAM1017030	125,00	20	3.5	2,20	-	18	10°	~~€286.00~~ €228.80 Tax excl.	-	cart
LAM1017031	125,00	20	4	2,20	-	18	10°	~~€292.00~~ €233.60 Tax excl.	-	cart
LAM1017032	125,00	20	4.5	3,00	-	18	10°	~~€297.00~~ €237.60 Tax excl.	-	cart
LAM1017033	125,00	20	5	3,00	-	18	10°	~~€302.00~~ €241.60 Tax excl.	-	cart
LAM1017034	125,00	20	6	4,00	-	18	10°	~~€313.00~~ €250.40 Tax excl.	-	cart
LAM1017035	125,00	30	3.2	2,20	-	18	10°	~~€283.00~~ €226.40 Tax excl.	-	cart
LAM1017036	125,00	30	3.5	2,20	-	18	10°	~~€286.00~~ €228.80 Tax excl.	-	cart
LAM1017037	125,00	30	4	2,20	-	18	10°	~~€292.00~~ €233.60 Tax excl.	-	cart
LAM1017038	125,00	30	4.5	3,00	-	18	10°	~~€297.00~~ €237.60 Tax excl.	-	cart
LAM1017039	125,00	30	5	3,00	-	18	10°	~~€302.00~~ €241.60 Tax excl.	-	cart
LAM1017040	125,00	30	6	4,00	-	18	10°	~~€313.00~~ €250.40 Tax excl.	-	cart
LAM1017041	125,00	20	3	2,20	-	24	10°	~~€342.00~~ €273.60 Tax excl.	-	cart
LAM1017042	125,00	20	3.2	2,20	-	24	10°	~~€345.00~~ €276.00 Tax excl.	-	cart
LAM1017043	125,00	20	3.5	2,20	-	24	10°	~~€349.00~~ €279.20 Tax excl.	-	cart
LAM1017044	125,00	20	4	2,20	-	24	10°	~~€356.00~~ €284.80 Tax excl.	-	cart
LAM1017045	125,00	20	4.5	3,00	-	24	10°	~~€363.00~~ €290.40 Tax excl.	-	cart
LAM1017046	125,00	20	5	3,00	-	24	10°	~~€370.00~~ €296.00 Tax excl.	-	cart
LAM1017047	125,00	20	6	4,00	-	24	10°	~~€384.00~~ €307.20 Tax excl.	-	cart
LAM1017048	125,00	30	3.2	2,20	-	24	10°	~~€345.00~~ €276.00 Tax excl.	-	cart
LAM1017049	125,00	30	3.5	2,20	-	24	10°	~~€349.00~~ €279.20 Tax excl.	-	cart

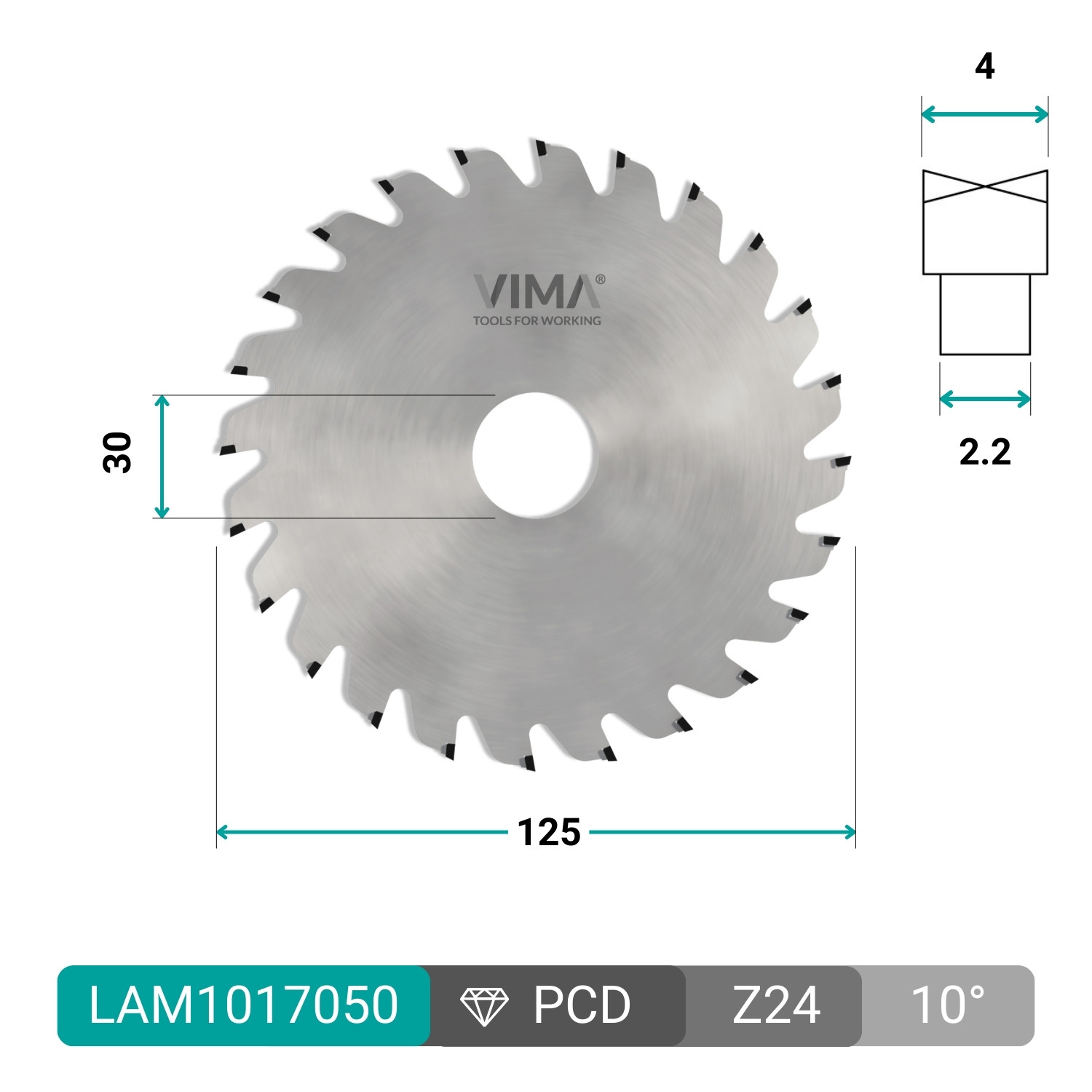

LAM1017050	125,00	30	4	2,20	-	24	10°	~~€356.00~~ €284.80 Tax excl.	-	cart
LAM1017051	125,00	30	4.5	3,00	-	24	10°	~~€363.00~~ €290.40 Tax excl.	-	cart
LAM1017052	125,00	30	5	3,00	-	24	10°	~~€370.00~~ €296.00 Tax excl.	-	cart
LAM1017053	125,00	30	6	4,00	-	24	10°	~~€384.00~~ €307.20 Tax excl.	-	cart
LAM1017054	140,00	20	3.2	2,20	-	24	10°	~~€345.00~~ €276.00 Tax excl.	-	cart
LAM1017055	140,00	20	3.5	2,20	-	24	10°	~~€349.00~~ €279.20 Tax excl.	-	cart
LAM1017056	140,00	20	4	2,20	-	24	10°	~~€356.00~~ €284.80 Tax excl.	-	cart
LAM1017057	140,00	20	4.5	3,00	-	24	10°	~~€363.00~~ €290.40 Tax excl.	-	cart
LAM1017058	140,00	20	5	3,00	-	24	10°	~~€370.00~~ €296.00 Tax excl.	-	cart
LAM1017059	140,00	20	6	4,00	-	24	10°	~~€384.00~~ €307.20 Tax excl.	-	cart
LAM1017060	140,00	30	3.2	2,20	-	24	10°	~~€345.00~~ €276.00 Tax excl.	-	cart
LAM1017061	140,00	30	3.5	2,20	-	24	10°	~~€349.00~~ €279.20 Tax excl.	-	cart
LAM1017062	140,00	30	4	2,20	-	24	10°	~~€356.00~~ €284.80 Tax excl.	-	cart
LAM1017063	140,00	30	4.5	3,00	-	24	10°	~~€363.00~~ €290.40 Tax excl.	-	cart
LAM1017064	140,00	30	5	3,00	-	24	10°	~~€370.00~~ €296.00 Tax excl.	-	cart
LAM1017065	140,00	30	6	4,00	-	24	10°	~~€384.00~~ €307.20 Tax excl.	-	cart

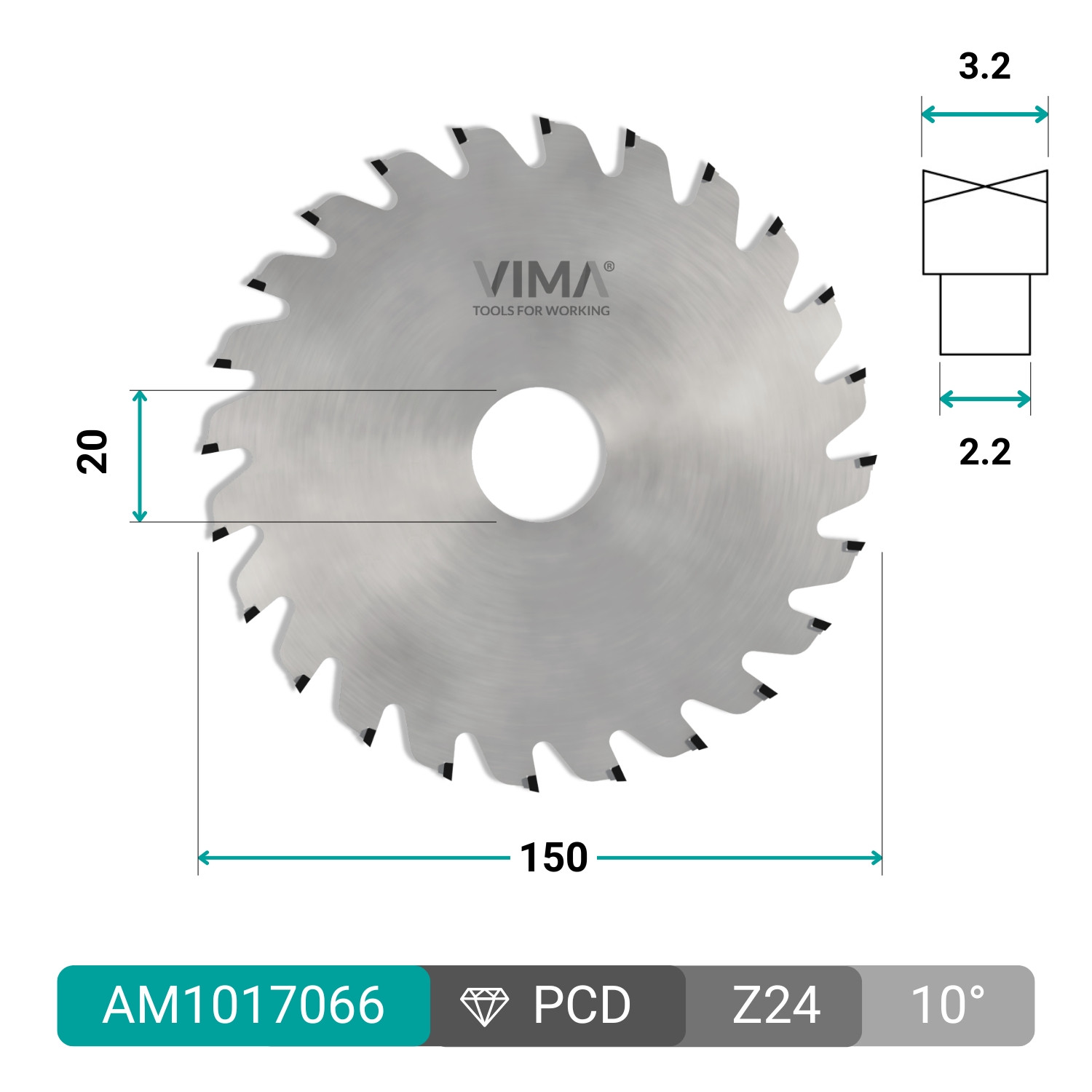

LAM1017066	150,00	20	3.2	2,20	-	24	10°	~~€345.00~~ €276.00 Tax excl.	-	cart
LAM1017067	150,00	20	3.5	2,20	-	24	10°	~~€349.00~~ €279.20 Tax excl.	-	cart

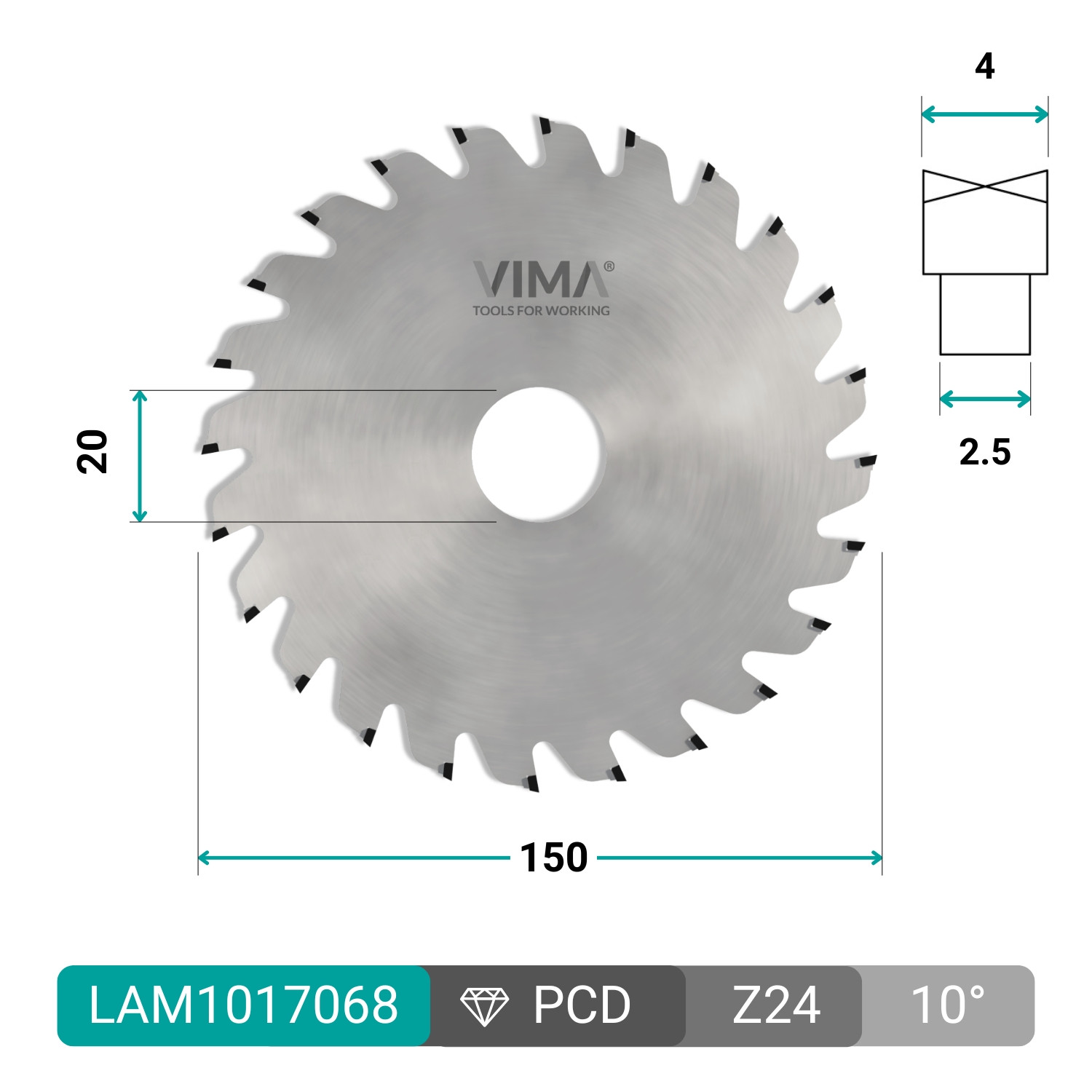

LAM1017068	150,00	20	4	2,50	-	24	10°	~~€356.00~~ €284.80 Tax excl.	-	cart
LAM1017069	150,00	20	4.5	3,00	-	24	10°	~~€363.00~~ €290.40 Tax excl.	-	cart
LAM1017070	150,00	20	5	3,00	-	24	10°	~~€370.00~~ €296.00 Tax excl.	-	cart
LAM1017071	150,00	20	6	4,00	-	24	10°	~~€384.00~~ €307.20 Tax excl.	-	cart
LAM1017072	150,00	30	3.2	2,20	-	24	10°	~~€345.00~~ €276.00 Tax excl.	-	cart
LAM1017073	150,00	30	3.5	2,20	-	24	10°	~~€349.00~~ €279.20 Tax excl.	-	cart
LAM1017074	150,00	30	4	2,50	-	24	10°	~~€356.00~~ €284.80 Tax excl.	-	cart
LAM1017075	150,00	30	4.5	3,00	-	24	10°	~~€363.00~~ €290.40 Tax excl.	-	cart
LAM1017076	150,00	30	5	3,00	-	24	10°	~~€370.00~~ €296.00 Tax excl.	-	cart
LAM1017077	150,00	30	6	4,00	-	24	10°	~~€384.00~~ €307.20 Tax excl.	-	cart
LAM1017078	150,00	20	3.2	2,20	-	36	10°	~~€468.00~~ €374.40 Tax excl.	-	cart
LAM1017079	150,00	20	3.5	2,20	-	36	10°	~~€474.00~~ €379.20 Tax excl.	-	cart
LAM1017080	150,00	20	4	2,50	-	36	10°	~~€485.00~~ €388.00 Tax excl.	-	cart
LAM1017081	150,00	20	4.5	3,00	-	36	10°	~~€496.00~~ €396.80 Tax excl.	-	cart
LAM1017082	150,00	20	5	3,00	-	36	10°	~~€506.00~~ €404.80 Tax excl.	-	cart
LAM1017083	150,00	20	6	4,00	-	36	10°	~~€527.00~~ €421.60 Tax excl.	-	cart
LAM1017084	150,00	30	3.2	2,20	-	36	10°	~~€468.00~~ €374.40 Tax excl.	-	cart
LAM1017085	150,00	30	3.5	2,20	-	36	10°	~~€474.00~~ €379.20 Tax excl.	-	cart
LAM1017086	150,00	30	4	2,50	-	36	10°	~~€485.00~~ €388.00 Tax excl.	-	cart
LAM1017087	150,00	30	4.5	3,00	-	36	10°	~~€496.00~~ €396.80 Tax excl.	-	cart
LAM1017088	150,00	30	5	3,00	-	36	10°	~~€506.00~~ €404.80 Tax excl.	-	cart
LAM1017089	150,00	30	6	4,00	-	36	10°	~~€527.00~~ €421.60 Tax excl.	-	cart
LAM1017090	180,00	20	3.2	2,20	-	24	10°	~~€345.00~~ €276.00 Tax excl.	-	cart
LAM1017091	180,00	20	3.5	2,20	-	24	10°	~~€349.00~~ €279.20 Tax excl.	-	cart
LAM1017092	180,00	20	4	2,50	-	24	10°	~~€356.00~~ €284.80 Tax excl.	-	cart
LAM1017093	180,00	20	4.5	3,00	-	24	10°	~~€363.00~~ €290.40 Tax excl.	-	cart
LAM1017094	180,00	20	5	3,00	-	24	10°	~~€370.00~~ €296.00 Tax excl.	-	cart
LAM1017095	180,00	20	6	4,00	-	24	10°	~~€384.00~~ €307.20 Tax excl.	-	cart
LAM1017096	180,00	30	3.2	2,20	-	24	10°	~~€345.00~~ €276.00 Tax excl.	-	cart
LAM1017097	180,00	30	3.5	2,20	-	24	10°	~~€349.00~~ €279.20 Tax excl.	-	cart
LAM1017098	180,00	30	4	2,50	-	24	10°	~~€356.00~~ €284.80 Tax excl.	-	cart
LAM1017099	180,00	30	4.5	3,00	-	24	10°	~~€363.00~~ €290.40 Tax excl.	-	cart

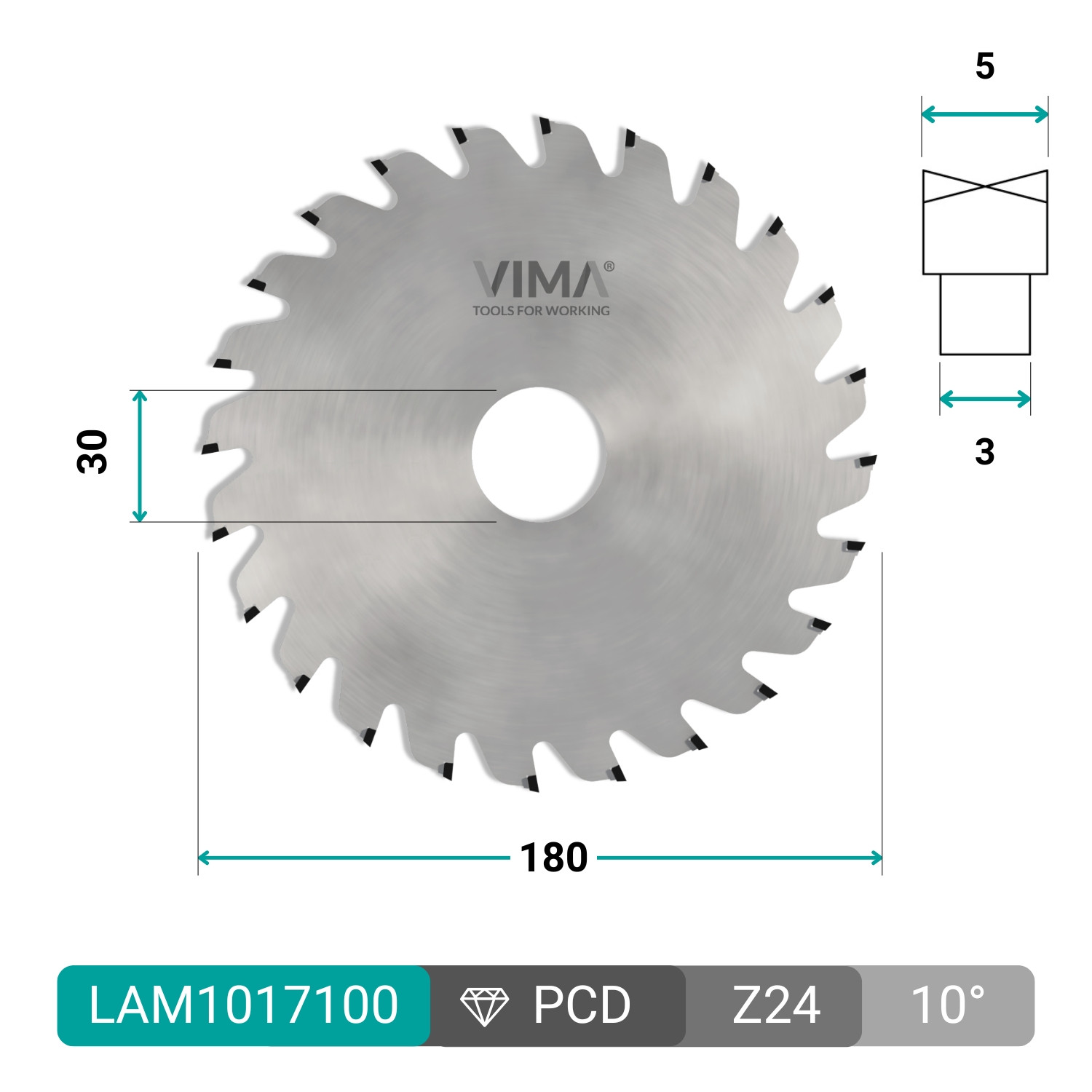

LAM1017100	180,00	30	5	3,00	-	24	10°	~~€370.00~~ €296.00 Tax excl.	-	cart
LAM1017101	180,00	30	6	4,00	-	24	10°	~~€384.00~~ €307.20 Tax excl.	-	cart
LAM1017102	180,00	20	3.2	2,20	-	36	10°	~~€468.00~~ €374.40 Tax excl.	-	cart
LAM1017103	180,00	20	3.5	2,20	-	36	10°	~~€474.00~~ €379.20 Tax excl.	-	cart
LAM1017104	180,00	20	4	2,50	-	36	10°	~~€485.00~~ €388.00 Tax excl.	-	cart
LAM1017105	180,00	20	4.5	3,00	-	36	10°	~~€496.00~~ €396.80 Tax excl.	-	cart
LAM1017106	180,00	20	5	3,00	-	36	10°	~~€506.00~~ €404.80 Tax excl.	-	cart
LAM1017107	180,00	20	6	4,00	-	36	10°	~~€527.00~~ €421.60 Tax excl.	-	cart
LAM1017108	180,00	30	3.2	2,20	-	36	10°	~~€468.00~~ €374.40 Tax excl.	-	cart
LAM1017109	180,00	30	3.5	2,20	-	36	10°	~~€474.00~~ €379.20 Tax excl.	-	cart
LAM1017110	180,00	30	4	2,50	-	36	10°	~~€485.00~~ €388.00 Tax excl.	-	cart
LAM1017111	180,00	30	4.5	3,00	-	36	10°	~~€496.00~~ €396.80 Tax excl.	-	cart
LAM1017112	180,00	30	5	3,00	-	36	10°	~~€506.00~~ €404.80 Tax excl.	-	cart
LAM1017113	180,00	30	6	4,00	-	36	10°	~~€527.00~~ €421.60 Tax excl.	-	cart
LAM1017114	200,00	20	3.2	2,20	-	24	10°	~~€345.00~~ €276.00 Tax excl.	-	cart
LAM1017115	200,00	20	3.5	2,20	-	24	10°	~~€349.00~~ €279.20 Tax excl.	-	cart
LAM1017116	200,00	20	4	2,50	-	24	10°	~~€356.00~~ €284.80 Tax excl.	-	cart
LAM1017117	200,00	20	4.5	3,00	-	24	10°	~~€363.00~~ €290.40 Tax excl.	-	cart
LAM1017118	200,00	20	5	3,00	-	24	10°	~~€370.00~~ €296.00 Tax excl.	-	cart
LAM1017119	200,00	20	6	4,00	-	24	10°	~~€384.00~~ €307.20 Tax excl.	-	cart
LAM1017120	200,00	30	3.2	2,20	-	24	10°	~~€345.00~~ €276.00 Tax excl.	-	cart
LAM1017121	200,00	30	3.5	2,20	-	24	10°	~~€349.00~~ €279.20 Tax excl.	-	cart
LAM1017122	200,00	30	4	2,50	-	24	10°	~~€356.00~~ €284.80 Tax excl.	-	cart
LAM1017123	200,00	30	4.5	3,00	-	24	10°	~~€363.00~~ €290.40 Tax excl.	-	cart
LAM1017124	200,00	30	5	3,00	-	24	10°	~~€370.00~~ €296.00 Tax excl.	-	cart
LAM1017125	200,00	30	6	4,00	-	24	10°	~~€384.00~~ €307.20 Tax excl.	-	cart
LAM1017126	200,00	20	3.2	2,20	-	36	10°	~~€468.00~~ €374.40 Tax excl.	-	cart
LAM1017127	200,00	20	3.5	2,20	-	36	10°	~~€474.00~~ €379.20 Tax excl.	-	cart
LAM1017128	200,00	20	4	2,50	-	36	10°	~~€485.00~~ €388.00 Tax excl.	-	cart
LAM1017129	200,00	20	4.5	3,00	-	36	10°	~~€496.00~~ €396.80 Tax excl.	-	cart
LAM1017130	200,00	20	5	3,00	-	36	10°	~~€506.00~~ €404.80 Tax excl.	-	cart
LAM1017131	200,00	20	6	4,00	-	36	10°	~~€527.00~~ €421.60 Tax excl.	-	cart
LAM1017132	200,00	30	3.2	2,20	-	36	10°	~~€468.00~~ €374.40 Tax excl.	-	cart
LAM1017133	200,00	30	3.5	2,20	-	36	10°	~~€474.00~~ €379.20 Tax excl.	-	cart
LAM1017134	200,00	30	4	2,50	-	36	10°	~~€485.00~~ €388.00 Tax excl.	-	cart
LAM1017135	200,00	30	4.5	3,00	-	36	10°	~~€496.00~~ €396.80 Tax excl.	-	cart
LAM1017136	200,00	30	5	3,00	-	36	10°	~~€506.00~~ €404.80 Tax excl.	-	cart

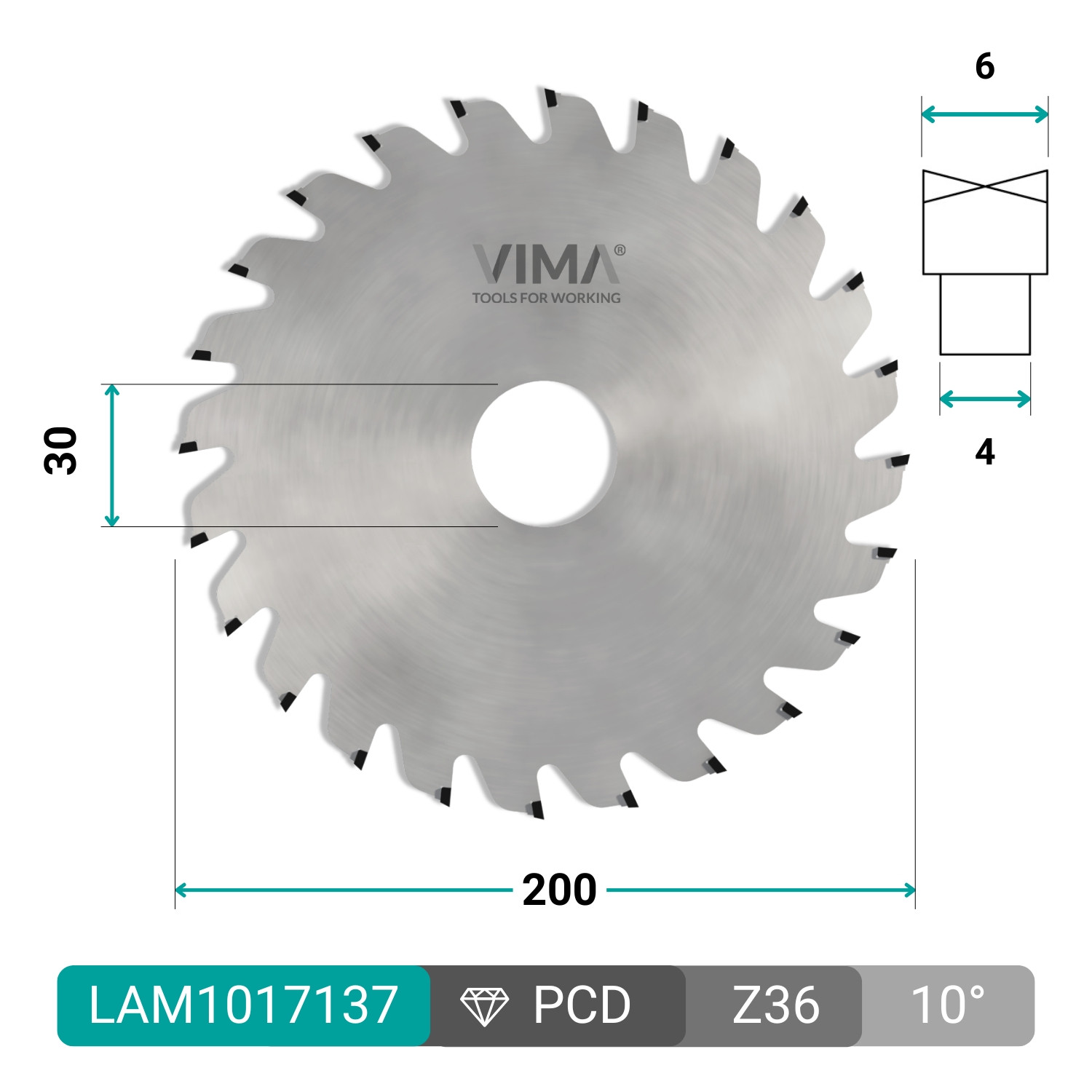

LAM1017137	200,00	30	6	4,00	-	36	10°	~~€527.00~~ €421.60 Tax excl.	-	cart

VAT included if applicable. EU customers registered in VIES and non-EU customers will see prices excluding VAT after registration and approval by an administrator.

WhatsApp support +39 349 7760165 Products available in stock, H24 shipping. Delivery is estimated to arrive in 3/5/10 days.

WhatsApp support +39 349 7760165

Products available in stock, H24 shipping

Delivery is estimated to arrive in 3/5/10 days

Description
Product Details

Description

The LAM1017 GROOVINGCUT 6 is a PCD circular blade designed for alternate bevel grooving, ensuring precise and stable cutting performance on CNC machines, circular saws and panel saws. The WZ tooth geometry and positive rake angle allow smooth feed, reduced vibration and optimal chip evacuation. The PCD H6 diamond tip guarantees exceptional wear resistance and extended tool life.

Main features:

H6 PCD cutting edge with extreme durability
Alternate bevel DX/SX sharpening for controlled groove cutting
WZ tooth geometry for smooth and consistent cuts
Positive rake angle for efficient feed
Perfect for deep grooving and intensive machining
Industrial-grade construction Made in Italy

Benefits:

Provides long-lasting precision, clean finishing and minimal maintenance even on abrasive boards. Ideal for industrial panel processing and high-performance woodworking.

Suitable materials: MDF/HDF, laminated MDF/HDF, particle board, laminated particle board, plywood, laminated plywood, hardwood and softwood.

Product Details

BrandVIMA

ReferenceLAM1017001

Data sheet

H PCD	H 6MM
CUTTING TYPE	DIA
SHARPENING GEOMETRY	WZ
FEEDING SYSTEM	MAN MEC
TYPE OF PROCESSING	GROOVING CUTTER
CUTTING ANGLE	POSITIVE
WORKABLE MATERIALS	Hard wood Light wood MDF HDF MDF HDF double-sided laminated Particle board Particle board double face laminate Plywood Plywood double face laminate

Specific References

mpn	LAM1017001

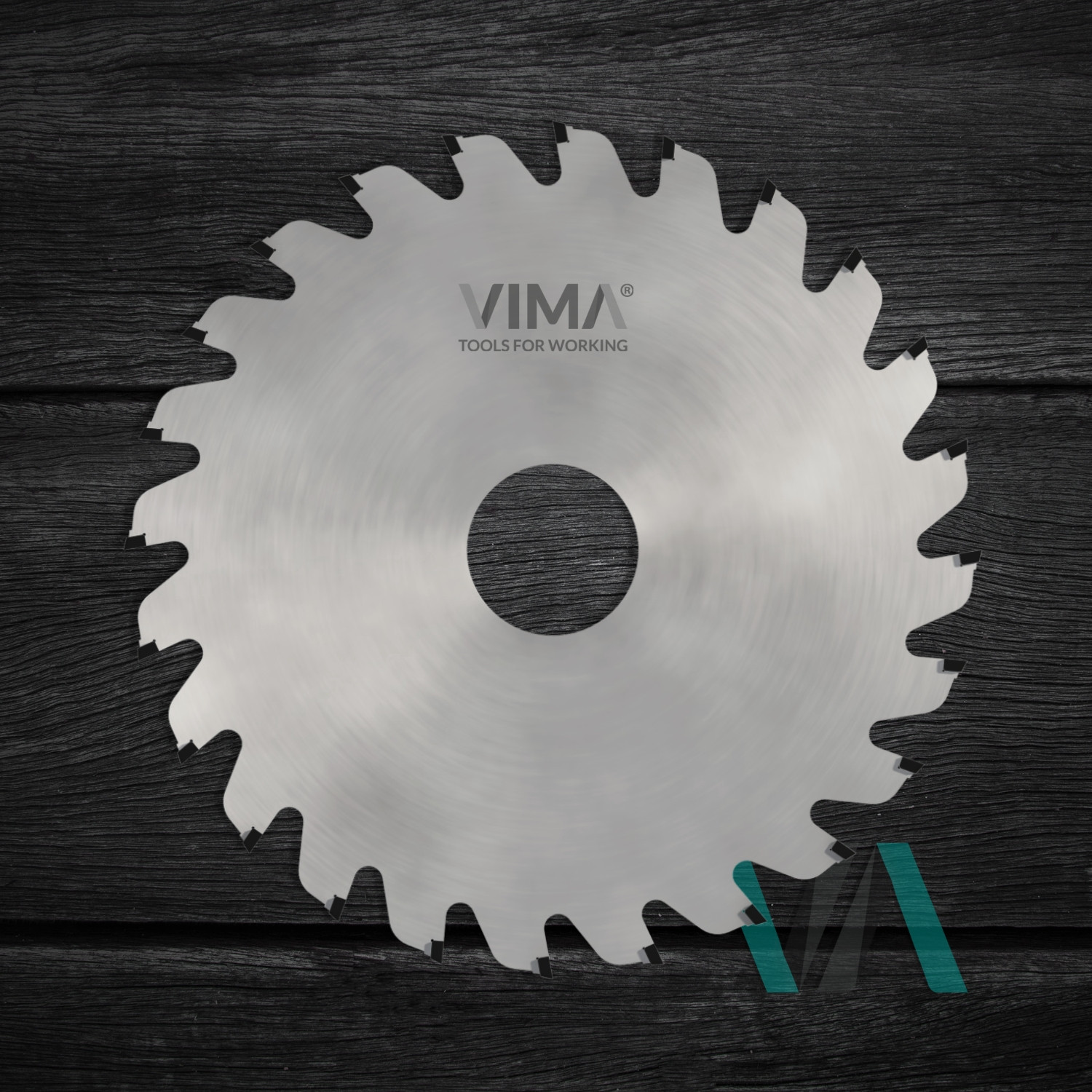

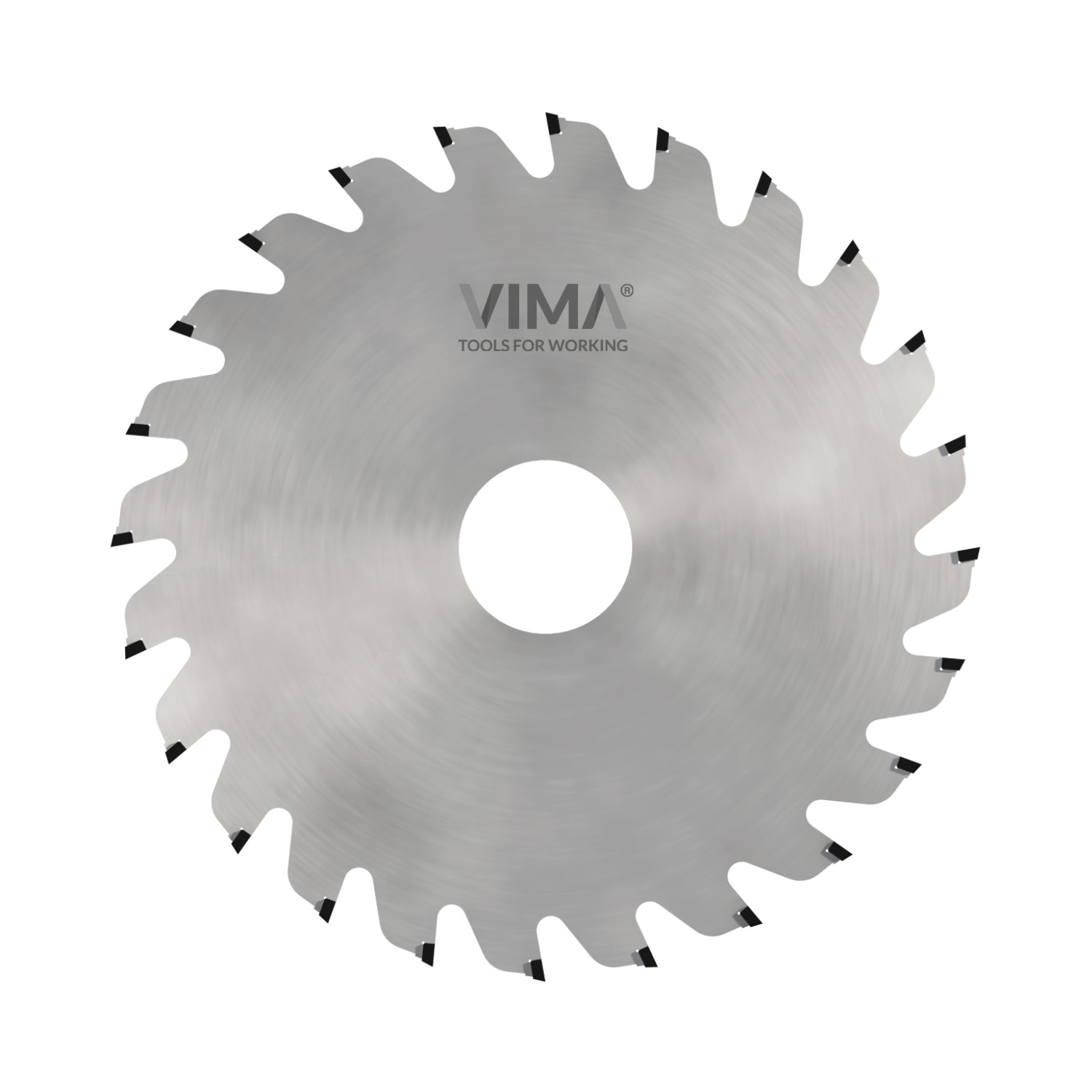

PCD circular saw blade for alternate bevel grooving

Related Products

FREE SHIPPING

100% Secure Payments

Professional Assistance

WhatsApp Support

Fast 24h Shipping

Subscribe to our Newsletter

24/7 Support

+39 349 7760165

Sign in

Megamenu

Your cart
