Hoja circular PCD para ranuras con diente alternado

Código de producto: LAM1017

Serie: GROOVINGCUT

Hoja circular PCD diseñada para ranuras con afilado alternado DX/SX. El filo PCD H6 ofrece alta durabilidad y cortes limpios en MDF/HDF, aglomerado y contrachapado.

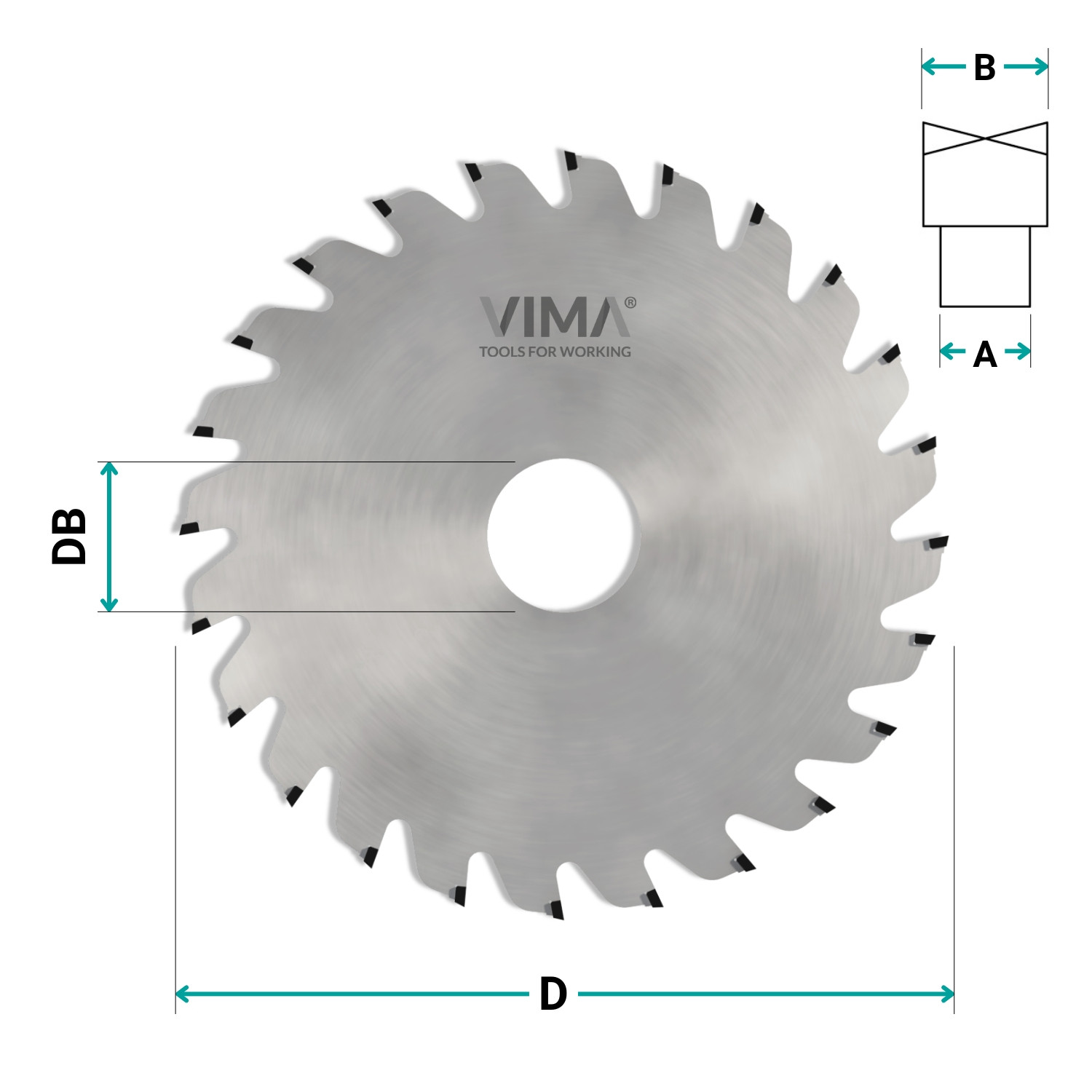

D (Ø)

DB (Ø foro)

B (spess.)

A (spess.)

FT / PH

Z TOT.

ALFA

Garantía 100 % de devolución de dinero
Atención rápida por WhatsApp +39 349 7760165
ENVÍO GRATUITO en pedidos superiores a 69 € dentro de Italia
Los pedidos realizados antes de las 14:00 h (si hay stock) se envían el mismo día

Desplaza la tabla hacia la izquierda y la derecha

Referencia	D (Ø)	DB (Ø foro)	B (spess.)	A (spess.)	FT / PH	Z TOT.	ALFA	Precio	Descuentos por volumen	Carrito
LAM1017001	100,00	20	3	2,20	-	12	10°	~~220,00 €~~ 154,00 €	-	Carrito
LAM1017002	100,00	20	3.2	2,20	-	12	10°	~~221,00 €~~ 154,70 €	-	Carrito
LAM1017003	100,00	20	3.5	2,20	-	12	10°	~~223,00 €~~ 156,10 €	-	Carrito
LAM1017004	100,00	20	4	2,20	-	12	10°	~~227,00 €~~ 158,90 €	-	Carrito
LAM1017005	100,00	20	4.5	3,00	-	12	10°	~~231,00 €~~ 161,70 €	-	Carrito
LAM1017006	100,00	20	5	3,00	-	12	10°	~~234,00 €~~ 163,80 €	-	Carrito
LAM1017007	100,00	20	6	4,00	-	12	10°	~~241,00 €~~ 168,70 €	-	Carrito
LAM1017008	100,00	30	3	2,20	-	12	10°	~~220,00 €~~ 154,00 €	-	Carrito
LAM1017009	100,00	30	3.2	2,20	-	12	10°	~~221,00 €~~ 154,70 €	-	Carrito
LAM1017010	100,00	30	3.5	2,20	-	12	10°	~~223,00 €~~ 156,10 €	-	Carrito
LAM1017011	100,00	30	4	2,20	-	12	10°	~~227,00 €~~ 158,90 €	-	Carrito
LAM1017012	100,00	30	4.5	3,00	-	12	10°	~~231,00 €~~ 161,70 €	-	Carrito
LAM1017013	100,00	30	5	3,00	-	12	10°	~~234,00 €~~ 163,80 €	-	Carrito
LAM1017014	100,00	30	6	4,00	-	12	10°	~~241,00 €~~ 168,70 €	-	Carrito
LAM1017015	125,00	20	3	2,20	-	12	10°	~~220,00 €~~ 154,00 €	-	Carrito
LAM1017016	125,00	20	3.2	2,20	-	12	10°	~~221,00 €~~ 154,70 €	-	Carrito
LAM1017017	125,00	20	3.5	2,20	-	12	10°	~~223,00 €~~ 156,10 €	-	Carrito
LAM1017018	125,00	20	4	2,20	-	12	10°	~~227,00 €~~ 158,90 €	-	Carrito
LAM1017019	125,00	20	4.5	3,00	-	12	10°	~~231,00 €~~ 161,70 €	-	Carrito
LAM1017020	125,00	20	5	3,00	-	12	10°	~~234,00 €~~ 163,80 €	-	Carrito
LAM1017021	125,00	20	6	4,00	-	12	10°	~~241,00 €~~ 168,70 €	-	Carrito
LAM1017022	125,00	30	3.2	2,20	-	12	10°	~~221,00 €~~ 154,70 €	-	Carrito
LAM1017023	125,00	30	3.5	2,20	-	12	10°	~~223,00 €~~ 156,10 €	-	Carrito
LAM1017024	125,00	30	4	2,20	-	12	10°	~~227,00 €~~ 158,90 €	-	Carrito
LAM1017025	125,00	30	4.5	3,00	-	12	10°	~~231,00 €~~ 161,70 €	-	Carrito
LAM1017026	125,00	30	5	3,00	-	12	10°	~~234,00 €~~ 163,80 €	-	Carrito
LAM1017027	125,00	30	6	4,00	-	12	10°	~~241,00 €~~ 168,70 €	-	Carrito
LAM1017028	125,00	20	3	2,20	-	18	10°	~~281,00 €~~ 196,70 €	-	Carrito
LAM1017029	125,00	20	3.2	2,20	-	18	10°	~~283,00 €~~ 198,10 €	-	Carrito
LAM1017030	125,00	20	3.5	2,20	-	18	10°	~~286,00 €~~ 200,20 €	-	Carrito
LAM1017031	125,00	20	4	2,20	-	18	10°	~~292,00 €~~ 204,40 €	-	Carrito
LAM1017032	125,00	20	4.5	3,00	-	18	10°	~~297,00 €~~ 207,90 €	-	Carrito
LAM1017033	125,00	20	5	3,00	-	18	10°	~~302,00 €~~ 211,40 €	-	Carrito
LAM1017034	125,00	20	6	4,00	-	18	10°	~~313,00 €~~ 219,10 €	-	Carrito
LAM1017035	125,00	30	3.2	2,20	-	18	10°	~~283,00 €~~ 198,10 €	-	Carrito
LAM1017036	125,00	30	3.5	2,20	-	18	10°	~~286,00 €~~ 200,20 €	-	Carrito
LAM1017037	125,00	30	4	2,20	-	18	10°	~~292,00 €~~ 204,40 €	-	Carrito
LAM1017038	125,00	30	4.5	3,00	-	18	10°	~~297,00 €~~ 207,90 €	-	Carrito
LAM1017039	125,00	30	5	3,00	-	18	10°	~~302,00 €~~ 211,40 €	-	Carrito
LAM1017040	125,00	30	6	4,00	-	18	10°	~~313,00 €~~ 219,10 €	-	Carrito
LAM1017041	125,00	20	3	2,20	-	24	10°	~~342,00 €~~ 239,40 €	-	Carrito
LAM1017042	125,00	20	3.2	2,20	-	24	10°	~~345,00 €~~ 241,50 €	-	Carrito
LAM1017043	125,00	20	3.5	2,20	-	24	10°	~~349,00 €~~ 244,30 €	-	Carrito
LAM1017044	125,00	20	4	2,20	-	24	10°	~~356,00 €~~ 249,20 €	-	Carrito
LAM1017045	125,00	20	4.5	3,00	-	24	10°	~~363,00 €~~ 254,10 €	-	Carrito
LAM1017046	125,00	20	5	3,00	-	24	10°	~~370,00 €~~ 259,00 €	-	Carrito
LAM1017047	125,00	20	6	4,00	-	24	10°	~~384,00 €~~ 268,80 €	-	Carrito
LAM1017048	125,00	30	3.2	2,20	-	24	10°	~~345,00 €~~ 241,50 €	-	Carrito
LAM1017049	125,00	30	3.5	2,20	-	24	10°	~~349,00 €~~ 244,30 €	-	Carrito
LAM1017050	125,00	30	4	2,20	-	24	10°	~~356,00 €~~ 249,20 €	-	Carrito
LAM1017051	125,00	30	4.5	3,00	-	24	10°	~~363,00 €~~ 254,10 €	-	Carrito
LAM1017052	125,00	30	5	3,00	-	24	10°	~~370,00 €~~ 259,00 €	-	Carrito
LAM1017053	125,00	30	6	4,00	-	24	10°	~~384,00 €~~ 268,80 €	-	Carrito
LAM1017054	140,00	20	3.2	2,20	-	24	10°	~~345,00 €~~ 241,50 €	-	Carrito
LAM1017055	140,00	20	3.5	2,20	-	24	10°	~~349,00 €~~ 244,30 €	-	Carrito
LAM1017056	140,00	20	4	2,20	-	24	10°	~~356,00 €~~ 249,20 €	-	Carrito
LAM1017057	140,00	20	4.5	3,00	-	24	10°	~~363,00 €~~ 254,10 €	-	Carrito
LAM1017058	140,00	20	5	3,00	-	24	10°	~~370,00 €~~ 259,00 €	-	Carrito
LAM1017059	140,00	20	6	4,00	-	24	10°	~~384,00 €~~ 268,80 €	-	Carrito
LAM1017060	140,00	30	3.2	2,20	-	24	10°	~~345,00 €~~ 241,50 €	-	Carrito
LAM1017061	140,00	30	3.5	2,20	-	24	10°	~~349,00 €~~ 244,30 €	-	Carrito
LAM1017062	140,00	30	4	2,20	-	24	10°	~~356,00 €~~ 249,20 €	-	Carrito
LAM1017063	140,00	30	4.5	3,00	-	24	10°	~~363,00 €~~ 254,10 €	-	Carrito
LAM1017064	140,00	30	5	3,00	-	24	10°	~~370,00 €~~ 259,00 €	-	Carrito
LAM1017065	140,00	30	6	4,00	-	24	10°	~~384,00 €~~ 268,80 €	-	Carrito
LAM1017066	150,00	20	3.2	2,20	-	24	10°	~~345,00 €~~ 241,50 €	-	Carrito
LAM1017067	150,00	20	3.5	2,20	-	24	10°	~~349,00 €~~ 244,30 €	-	Carrito
LAM1017068	150,00	20	4	2,50	-	24	10°	~~356,00 €~~ 249,20 €	-	Carrito
LAM1017069	150,00	20	4.5	3,00	-	24	10°	~~363,00 €~~ 254,10 €	-	Carrito
LAM1017070	150,00	20	5	3,00	-	24	10°	~~370,00 €~~ 259,00 €	-	Carrito
LAM1017071	150,00	20	6	4,00	-	24	10°	~~384,00 €~~ 268,80 €	-	Carrito
LAM1017072	150,00	30	3.2	2,20	-	24	10°	~~345,00 €~~ 241,50 €	-	Carrito
LAM1017073	150,00	30	3.5	2,20	-	24	10°	~~349,00 €~~ 244,30 €	-	Carrito
LAM1017074	150,00	30	4	2,50	-	24	10°	~~356,00 €~~ 249,20 €	-	Carrito
LAM1017075	150,00	30	4.5	3,00	-	24	10°	~~363,00 €~~ 254,10 €	-	Carrito
LAM1017076	150,00	30	5	3,00	-	24	10°	~~370,00 €~~ 259,00 €	-	Carrito
LAM1017077	150,00	30	6	4,00	-	24	10°	~~384,00 €~~ 268,80 €	-	Carrito
LAM1017078	150,00	20	3.2	2,20	-	36	10°	~~468,00 €~~ 327,60 €	-	Carrito
LAM1017079	150,00	20	3.5	2,20	-	36	10°	~~474,00 €~~ 331,80 €	-	Carrito
LAM1017080	150,00	20	4	2,50	-	36	10°	~~485,00 €~~ 339,50 €	-	Carrito
LAM1017081	150,00	20	4.5	3,00	-	36	10°	~~496,00 €~~ 347,20 €	-	Carrito
LAM1017082	150,00	20	5	3,00	-	36	10°	~~506,00 €~~ 354,20 €	-	Carrito
LAM1017083	150,00	20	6	4,00	-	36	10°	~~527,00 €~~ 368,90 €	-	Carrito
LAM1017084	150,00	30	3.2	2,20	-	36	10°	~~468,00 €~~ 327,60 €	-	Carrito
LAM1017085	150,00	30	3.5	2,20	-	36	10°	~~474,00 €~~ 331,80 €	-	Carrito
LAM1017086	150,00	30	4	2,50	-	36	10°	~~485,00 €~~ 339,50 €	-	Carrito
LAM1017087	150,00	30	4.5	3,00	-	36	10°	~~496,00 €~~ 347,20 €	-	Carrito
LAM1017088	150,00	30	5	3,00	-	36	10°	~~506,00 €~~ 354,20 €	-	Carrito
LAM1017089	150,00	30	6	4,00	-	36	10°	~~527,00 €~~ 368,90 €	-	Carrito
LAM1017090	180,00	20	3.2	2,20	-	24	10°	~~345,00 €~~ 241,50 €	-	Carrito
LAM1017091	180,00	20	3.5	2,20	-	24	10°	~~349,00 €~~ 244,30 €	-	Carrito

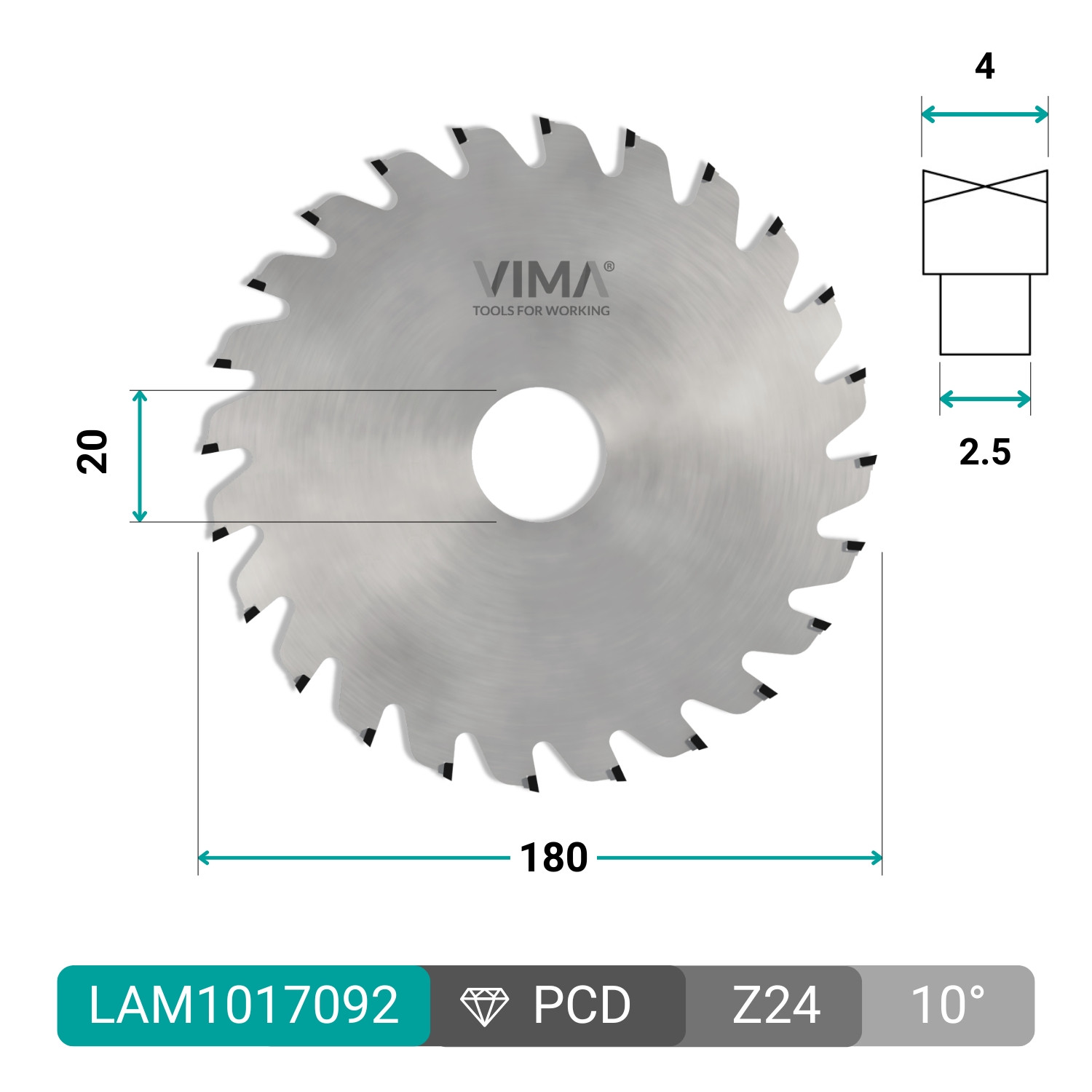

LAM1017092	180,00	20	4	2,50	-	24	10°	~~356,00 €~~ 249,20 €	-	Carrito
LAM1017093	180,00	20	4.5	3,00	-	24	10°	~~363,00 €~~ 254,10 €	-	Carrito
LAM1017094	180,00	20	5	3,00	-	24	10°	~~370,00 €~~ 259,00 €	-	Carrito
LAM1017095	180,00	20	6	4,00	-	24	10°	~~384,00 €~~ 268,80 €	-	Carrito

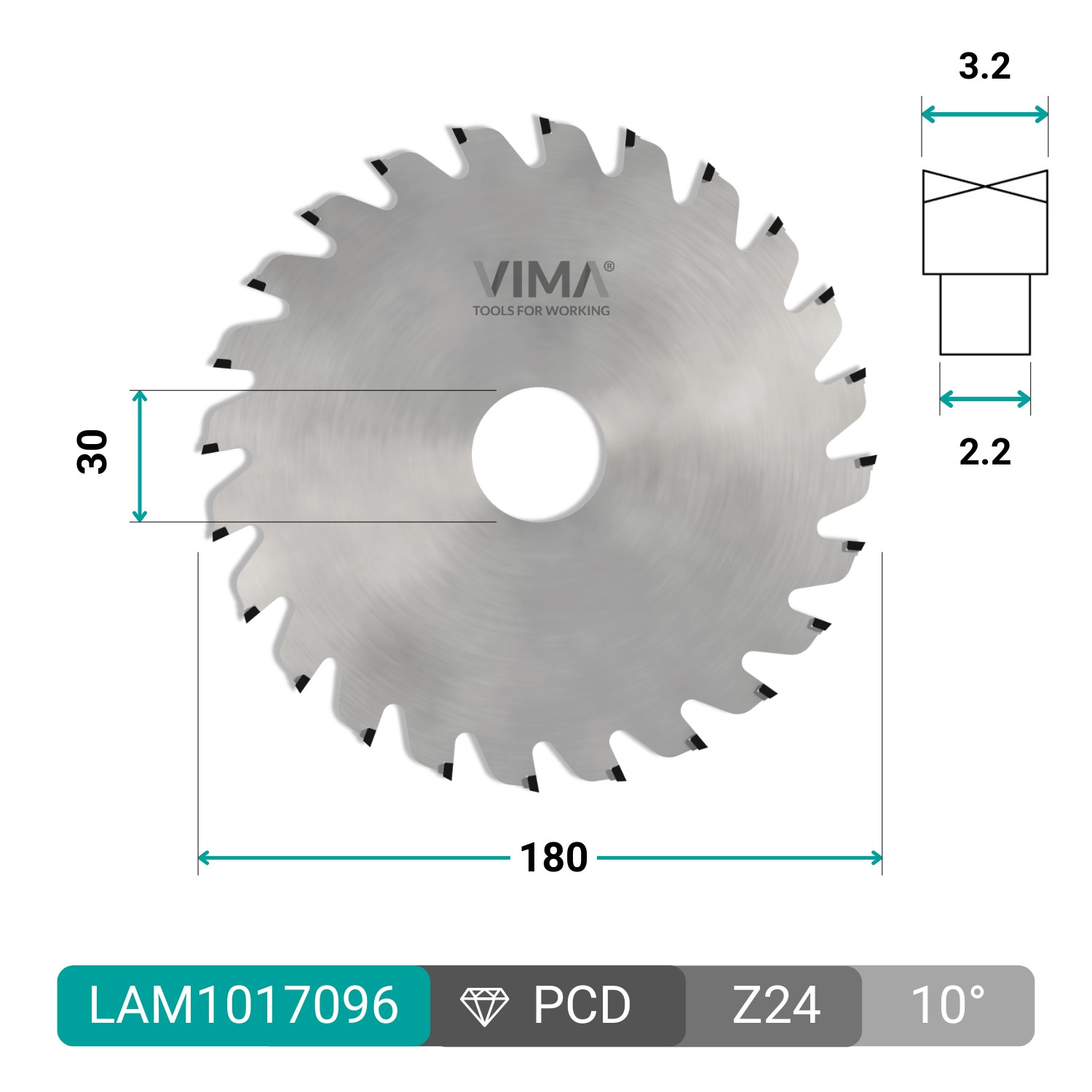

LAM1017096	180,00	30	3.2	2,20	-	24	10°	~~345,00 €~~ 241,50 €	-	Carrito
LAM1017097	180,00	30	3.5	2,20	-	24	10°	~~349,00 €~~ 244,30 €	-	Carrito
LAM1017098	180,00	30	4	2,50	-	24	10°	~~356,00 €~~ 249,20 €	-	Carrito
LAM1017099	180,00	30	4.5	3,00	-	24	10°	~~363,00 €~~ 254,10 €	-	Carrito
LAM1017100	180,00	30	5	3,00	-	24	10°	~~370,00 €~~ 259,00 €	-	Carrito
LAM1017101	180,00	30	6	4,00	-	24	10°	~~384,00 €~~ 268,80 €	-	Carrito
LAM1017102	180,00	20	3.2	2,20	-	36	10°	~~468,00 €~~ 327,60 €	-	Carrito
LAM1017103	180,00	20	3.5	2,20	-	36	10°	~~474,00 €~~ 331,80 €	-	Carrito
LAM1017104	180,00	20	4	2,50	-	36	10°	~~485,00 €~~ 339,50 €	-	Carrito

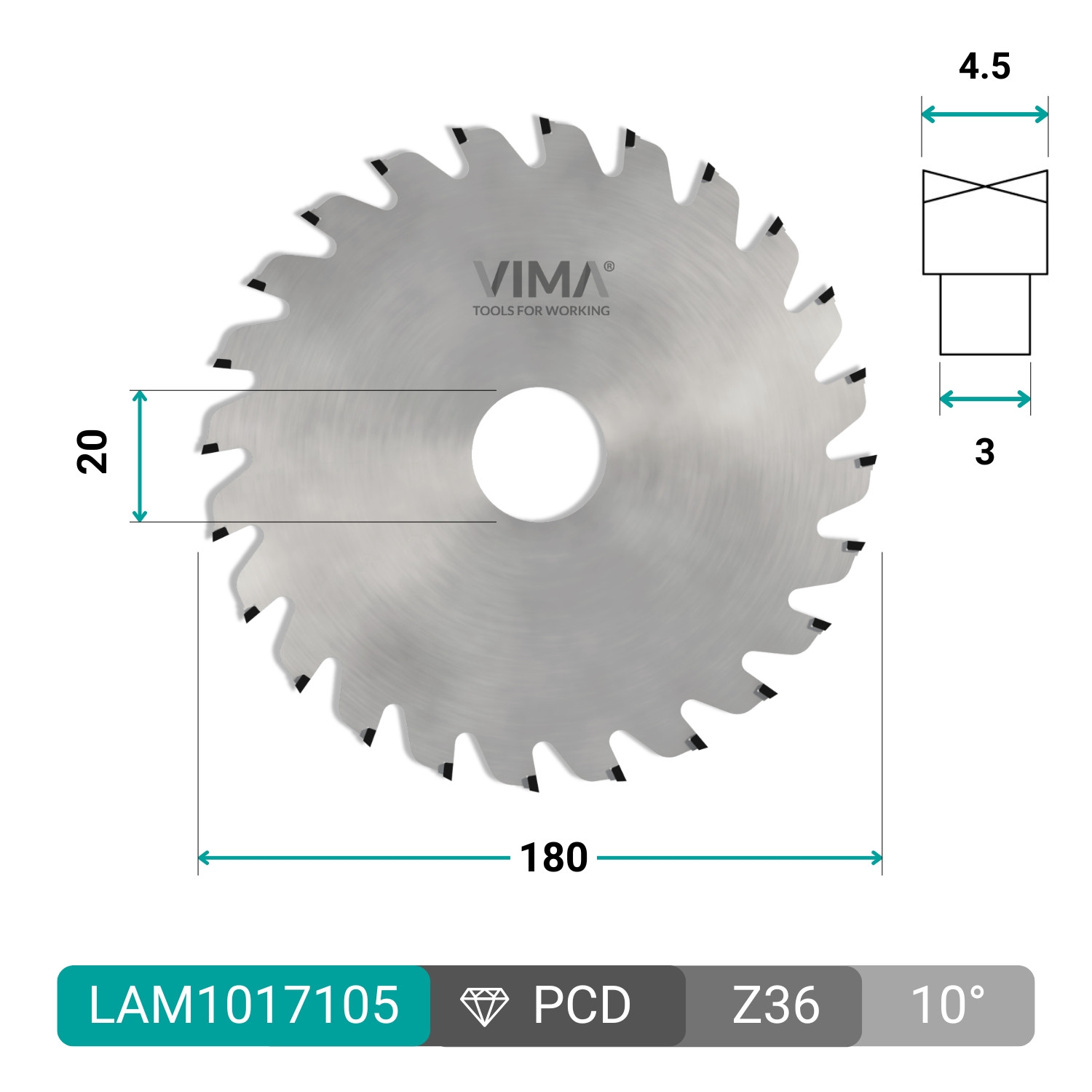

LAM1017105	180,00	20	4.5	3,00	-	36	10°	~~496,00 €~~ 347,20 €	-	Carrito
LAM1017106	180,00	20	5	3,00	-	36	10°	~~506,00 €~~ 354,20 €	-	Carrito
LAM1017107	180,00	20	6	4,00	-	36	10°	~~527,00 €~~ 368,90 €	-	Carrito
LAM1017108	180,00	30	3.2	2,20	-	36	10°	~~468,00 €~~ 327,60 €	-	Carrito
LAM1017109	180,00	30	3.5	2,20	-	36	10°	~~474,00 €~~ 331,80 €	-	Carrito
LAM1017110	180,00	30	4	2,50	-	36	10°	~~485,00 €~~ 339,50 €	-	Carrito
LAM1017111	180,00	30	4.5	3,00	-	36	10°	~~496,00 €~~ 347,20 €	-	Carrito
LAM1017112	180,00	30	5	3,00	-	36	10°	~~506,00 €~~ 354,20 €	-	Carrito
LAM1017113	180,00	30	6	4,00	-	36	10°	~~527,00 €~~ 368,90 €	-	Carrito
LAM1017114	200,00	20	3.2	2,20	-	24	10°	~~345,00 €~~ 241,50 €	-	Carrito
LAM1017115	200,00	20	3.5	2,20	-	24	10°	~~349,00 €~~ 244,30 €	-	Carrito
LAM1017116	200,00	20	4	2,50	-	24	10°	~~356,00 €~~ 249,20 €	-	Carrito
LAM1017117	200,00	20	4.5	3,00	-	24	10°	~~363,00 €~~ 254,10 €	-	Carrito
LAM1017118	200,00	20	5	3,00	-	24	10°	~~370,00 €~~ 259,00 €	-	Carrito
LAM1017119	200,00	20	6	4,00	-	24	10°	~~384,00 €~~ 268,80 €	-	Carrito
LAM1017120	200,00	30	3.2	2,20	-	24	10°	~~345,00 €~~ 241,50 €	-	Carrito
LAM1017121	200,00	30	3.5	2,20	-	24	10°	~~349,00 €~~ 244,30 €	-	Carrito
LAM1017122	200,00	30	4	2,50	-	24	10°	~~356,00 €~~ 249,20 €	-	Carrito
LAM1017123	200,00	30	4.5	3,00	-	24	10°	~~363,00 €~~ 254,10 €	-	Carrito
LAM1017124	200,00	30	5	3,00	-	24	10°	~~370,00 €~~ 259,00 €	-	Carrito
LAM1017125	200,00	30	6	4,00	-	24	10°	~~384,00 €~~ 268,80 €	-	Carrito
LAM1017126	200,00	20	3.2	2,20	-	36	10°	~~468,00 €~~ 327,60 €	-	Carrito
LAM1017127	200,00	20	3.5	2,20	-	36	10°	~~474,00 €~~ 331,80 €	-	Carrito
LAM1017128	200,00	20	4	2,50	-	36	10°	~~485,00 €~~ 339,50 €	-	Carrito
LAM1017129	200,00	20	4.5	3,00	-	36	10°	~~496,00 €~~ 347,20 €	-	Carrito
LAM1017130	200,00	20	5	3,00	-	36	10°	~~506,00 €~~ 354,20 €	-	Carrito
LAM1017131	200,00	20	6	4,00	-	36	10°	~~527,00 €~~ 368,90 €	-	Carrito
LAM1017132	200,00	30	3.2	2,20	-	36	10°	~~468,00 €~~ 327,60 €	-	Carrito
LAM1017133	200,00	30	3.5	2,20	-	36	10°	~~474,00 €~~ 331,80 €	-	Carrito

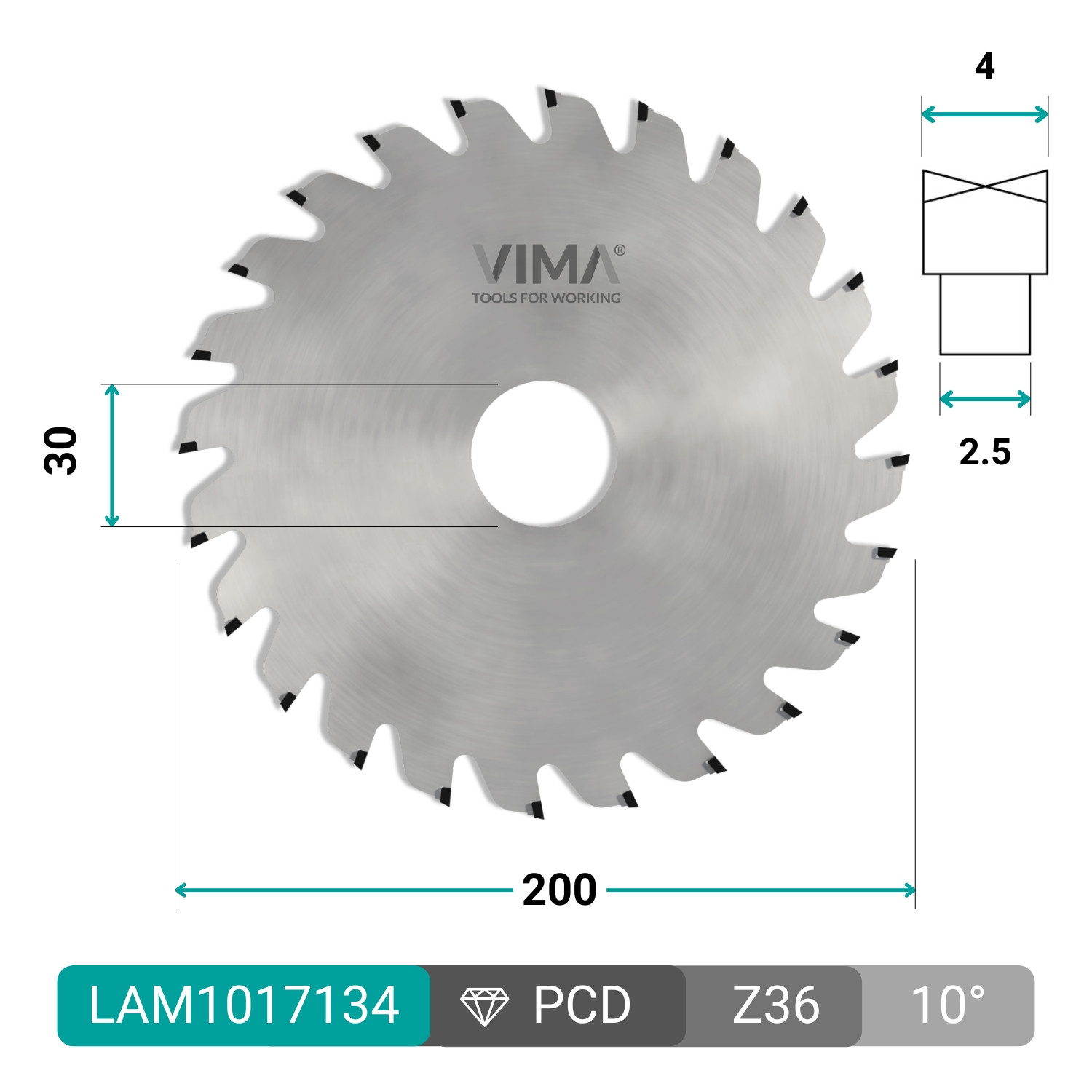

LAM1017134	200,00	30	4	2,50	-	36	10°	~~485,00 €~~ 339,50 €	-	Carrito
LAM1017135	200,00	30	4.5	3,00	-	36	10°	~~496,00 €~~ 347,20 €	-	Carrito
LAM1017136	200,00	30	5	3,00	-	36	10°	~~506,00 €~~ 354,20 €	-	Carrito
LAM1017137	200,00	30	6	4,00	-	36	10°	~~527,00 €~~ 368,90 €	-	Carrito

IVA incluido, si procede. Los clientes de la UE registrados en el sistema VIES y los de fuera de la UE verán los precios sin IVA tras el registro y la validación por parte de un administrador.

Soporte WhatsApp +39 349 7760165 Producto disponible en stock, envío en 24 h. En producción – entrega estimada en 3 / 5 / 10 días laborables.

Soporte WhatsApp +39 349 7760165

Producto disponible en stock, envío en 24 h.

En producción – entrega estimada en 3 / 5 / 10 días laborables.

Descripción
Detalles del producto

Descripción

La LAM1017 GROOVINGCUT 6 es una hoja circular PCD con bisel alternado, ideal para ranurados precisos y estables en CNC, sierras circulares y seccionadoras. La geometría WZ y el ángulo positivo garantizan una alimentación suave, baja vibración y buena expulsión de viruta. La punta diamantada PCD H6 asegura excelente resistencia al desgaste.

Características principales:

Punta PCD H6 de larga duración
Afilado alternado DX/SX para ranuras controladas
Geometría WZ para cortes constantes
Ángulo positivo para mejor avance
Perfecta para ranuras profundas e intensivas
Construcción industrial Made in Italy

Ventajas:

Cortes limpios, alta durabilidad y menos mantenimiento. Ideal para industria del mueble y procesado de tableros.

Apta para MDF/HDF, MDF/HDF laminado, aglomerado, aglomerado laminado doble cara, contrachapado, contrachapado laminado, madera dura y blanda.

Detalles del producto

ReferenciaLAM1017001

Ficha técnica

H PCD	H 6MM
TIPOLOGIA TAGLIENTE	DIA
GEOMETRIA DI AFFILATURA	WZ
TIPOLOGIA AVANZAMENTO	MAN MEC
TIPOLOGIA DI LAVORAZIONE	RANURADO CON AGUJERO
ANGOLO DI TAGLIO	POSITIVO
MATERIALES TRABAJABLES	Aglomerado Aglomerado laminado a doble cara Contrachapado Contrachapado laminado a doble cara MDF HDF MDF HDF laminado a doble cara Madera dura Madera ligera

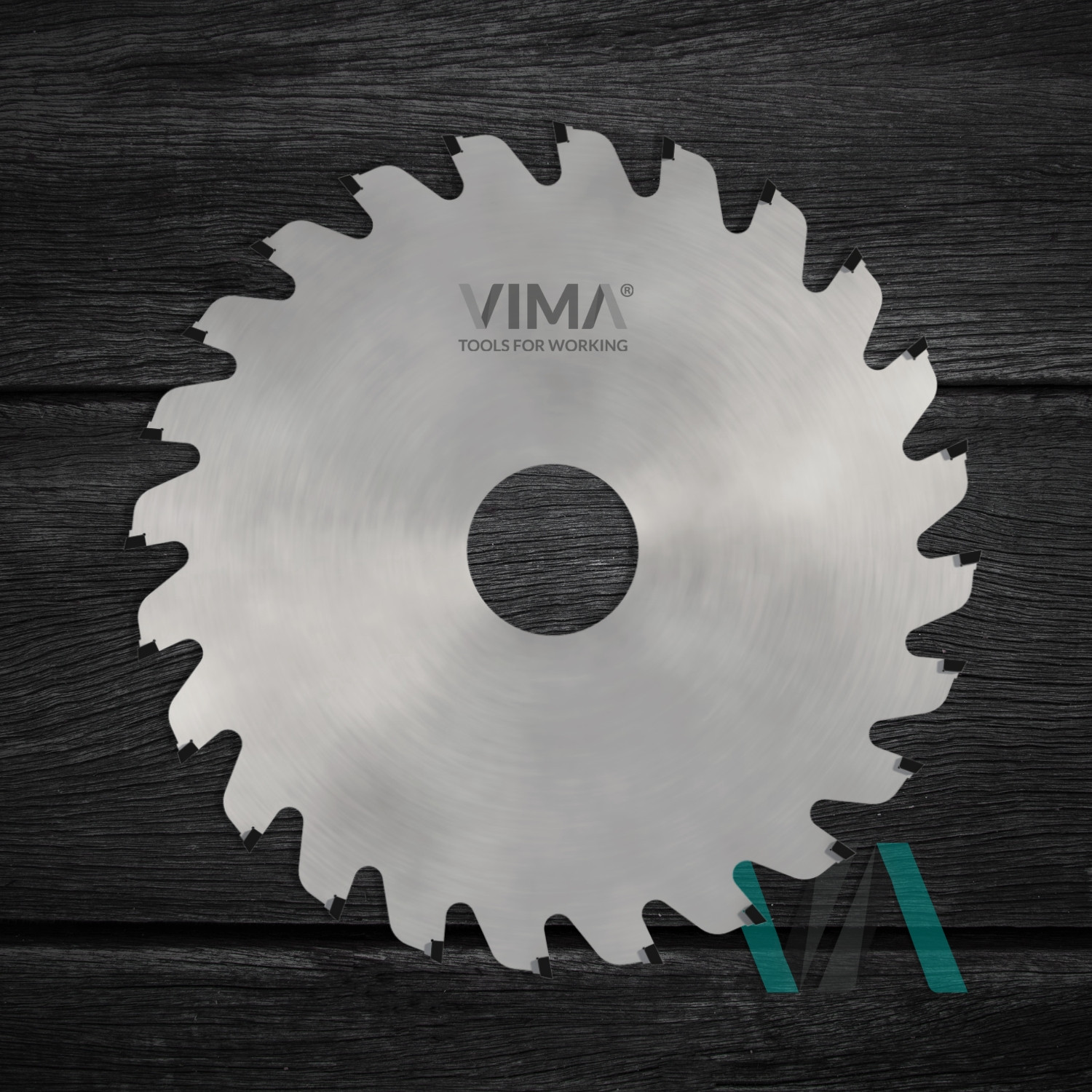

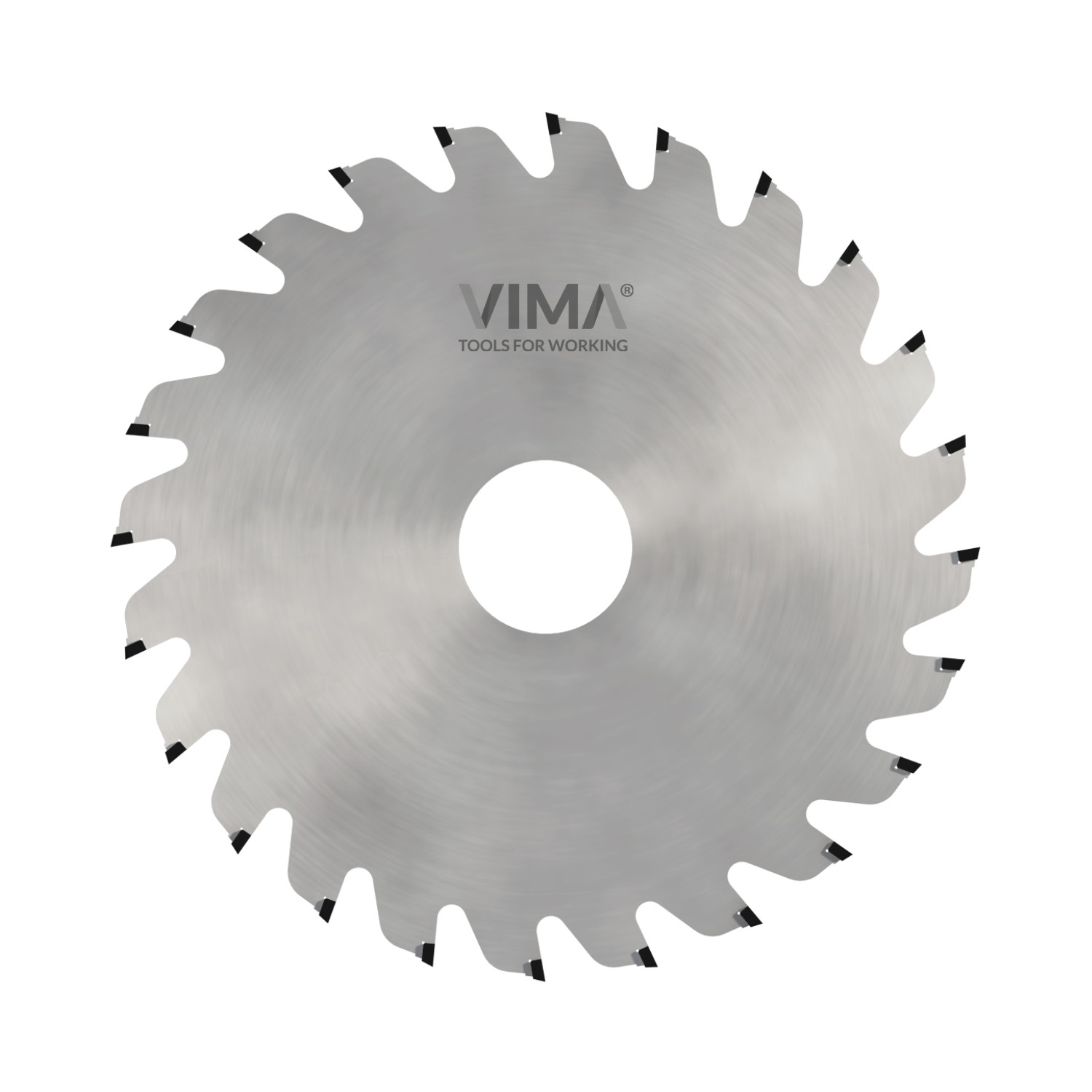

Hoja circular PCD para ranuras con diente alternado

Productos similares

ENVÍO GRATUITO

Pagos 100 % seguros

Asistencia profesional

Asistencia WhatsApp

Envíos rápidos 24h

Suscríbete a nuestra Newsletter

Soporte 24/7

+39 349 7760165

Iniciar sesión

Megamenu

Tu carrito
