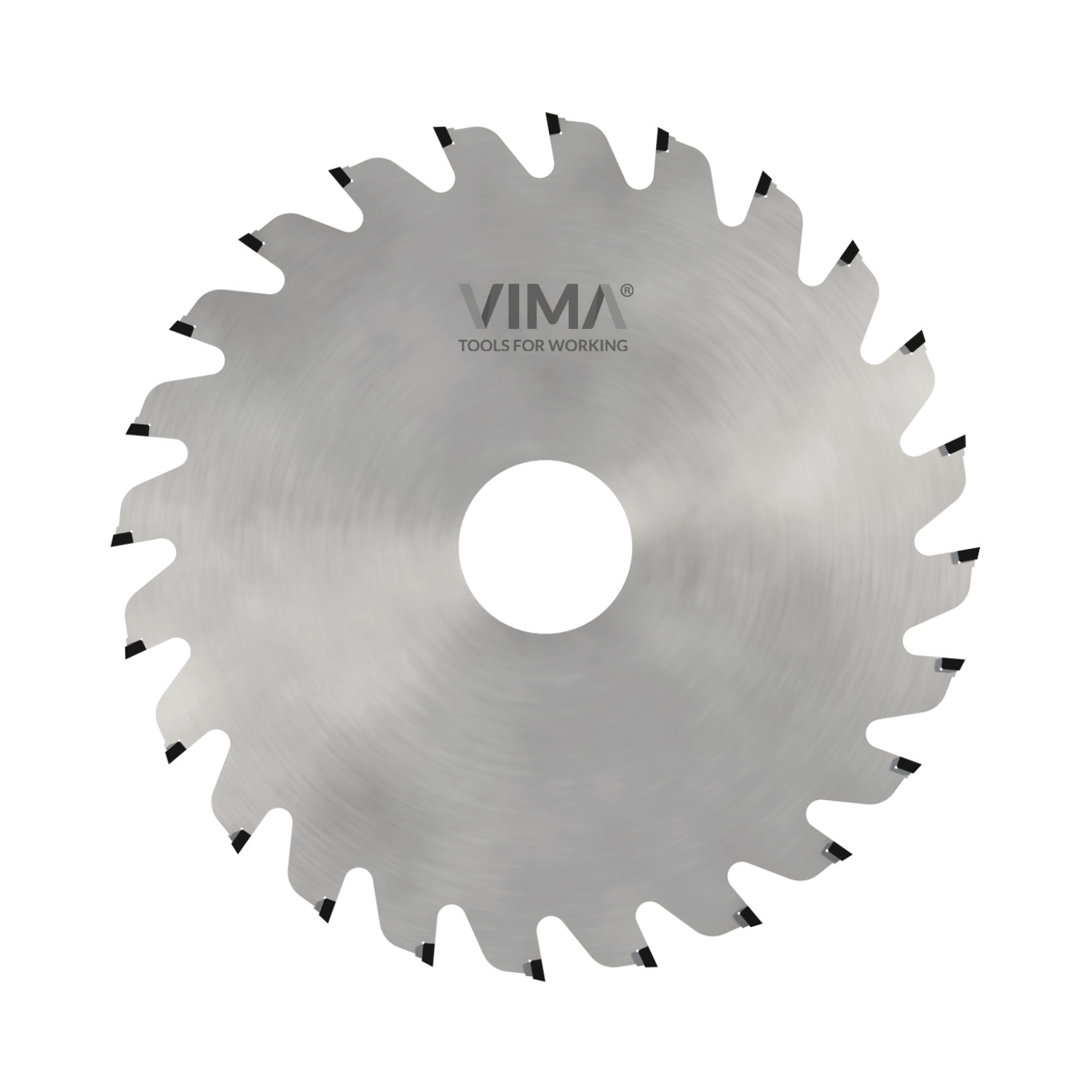

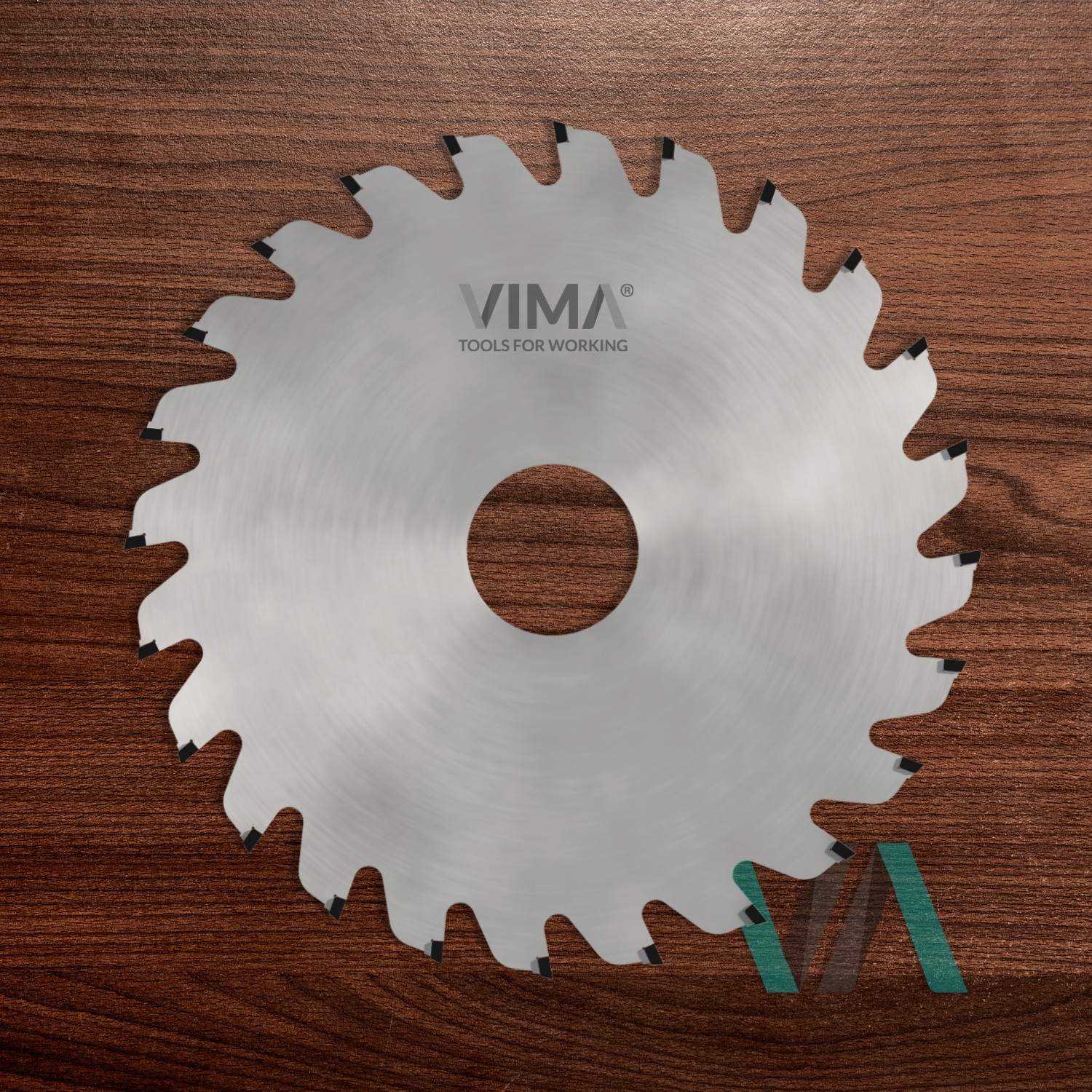

PCD circular blade for flat grooving

Product Code: LAM1016

Serie: GROOVING WITH BORE

PCD circular blade engineered for accurate flat grooving on CNC machines and panel saws. The H6 PCD tip ensures exceptional durability, clean cutting and reduced vibration on MDF/HDF, chipboard and plywood.

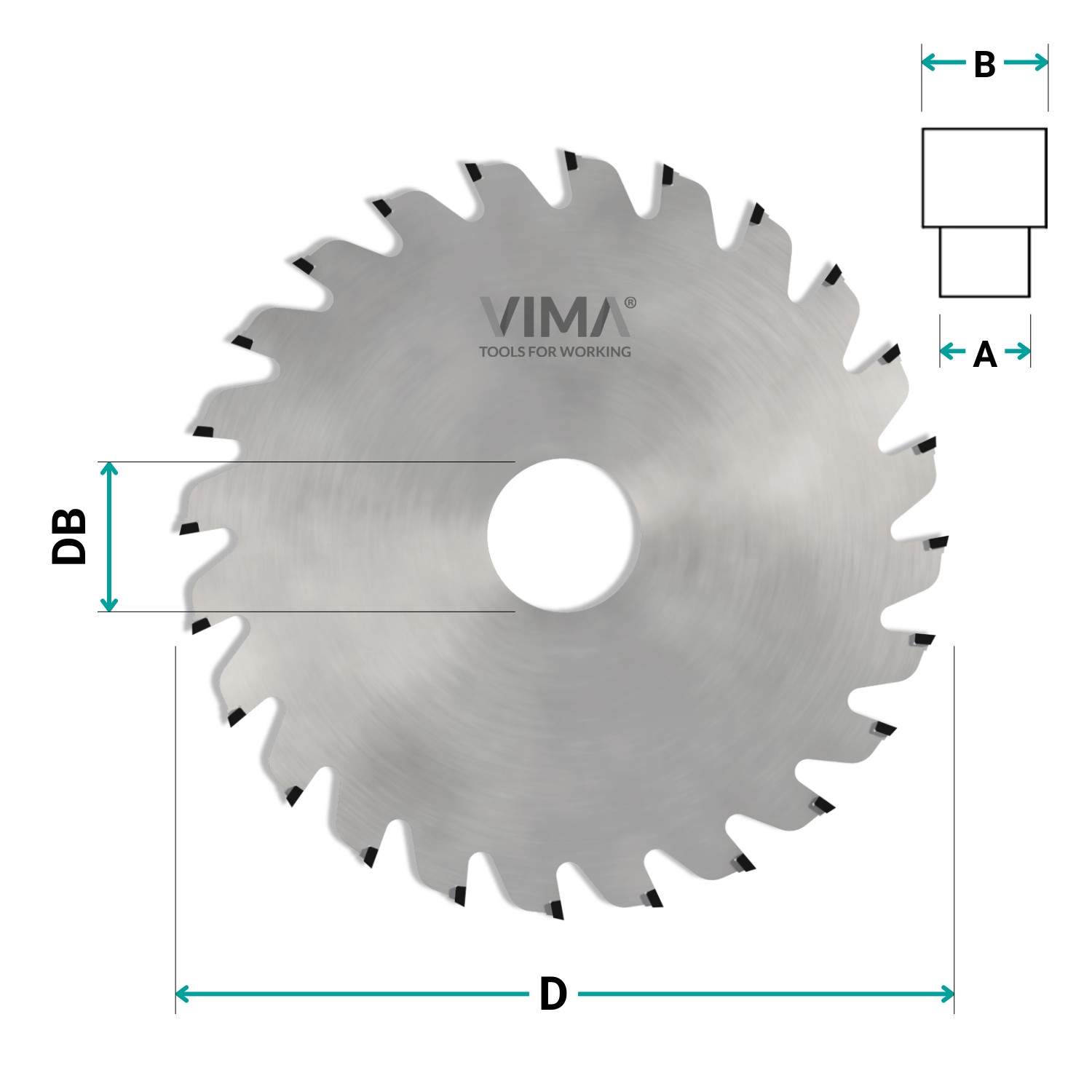

D (Ø)

DB (hole Ø)

B (thicn.)

A (tickn.)

FT / PH

Z TOT.

ALFA

100% Money-Back Guarantee
Fast support via WhatsApp +39 349 7760165
FREE Shipping on all orders over €69 within Italy
Orders placed before 2:00 PM (with items in stock) are shipped the same day

Scroll the TABLE left and right

Reference	D (Ø)	DB (hole Ø)	B (thicn.)	A (tickn.)	FT / PH	Z TOT.	ALFA	Price	Volume discounts	Cart
LAM1016018	125,00	20	4	2,20	-	12	10°	~~€205.00~~ €143.50	-	cart
LAM1016019	125,00	20	4.5	3,00	-	12	10°	~~€208.00~~ €145.60	-	cart
LAM1016020	125,00	20	5	3,00	-	12	10°	~~€212.00~~ €148.40	-	cart
LAM1016021	125,00	20	6	4,00	-	12	10°	~~€219.00~~ €153.30	-	cart
LAM1016022	125,00	30	3.2	2,20	-	12	10°	~~€199.00~~ €139.30	-	cart
LAM1016023	125,00	30	3.5	2,20	-	12	10°	~~€201.00~~ €140.70	-	cart
LAM1016024	125,00	30	4	2,20	-	12	10°	~~€205.00~~ €143.50	-	cart
LAM1016025	125,00	30	4.5	3,00	-	12	10°	~~€208.00~~ €145.60	-	cart
LAM1016026	125,00	30	5	3,00	-	12	10°	~~€212.00~~ €148.40	-	cart
LAM1016027	125,00	30	6	4,00	-	12	10°	~~€219.00~~ €153.30	-	cart
LAM1016028	125,00	20	3	2,20	-	18	10°	~~€247.00~~ €172.90	-	cart
LAM1016029	125,00	20	3.2	2,20	-	18	10°	~~€249.00~~ €174.30	-	cart
LAM1016030	125,00	20	3.5	2,20	-	18	10°	~~€253.00~~ €177.10	-	cart
LAM1016031	125,00	20	4	2,20	-	18	10°	~~€258.00~~ €180.60	-	cart
LAM1016032	125,00	20	4.5	3,00	-	18	10°	~~€263.00~~ €184.10	-	cart

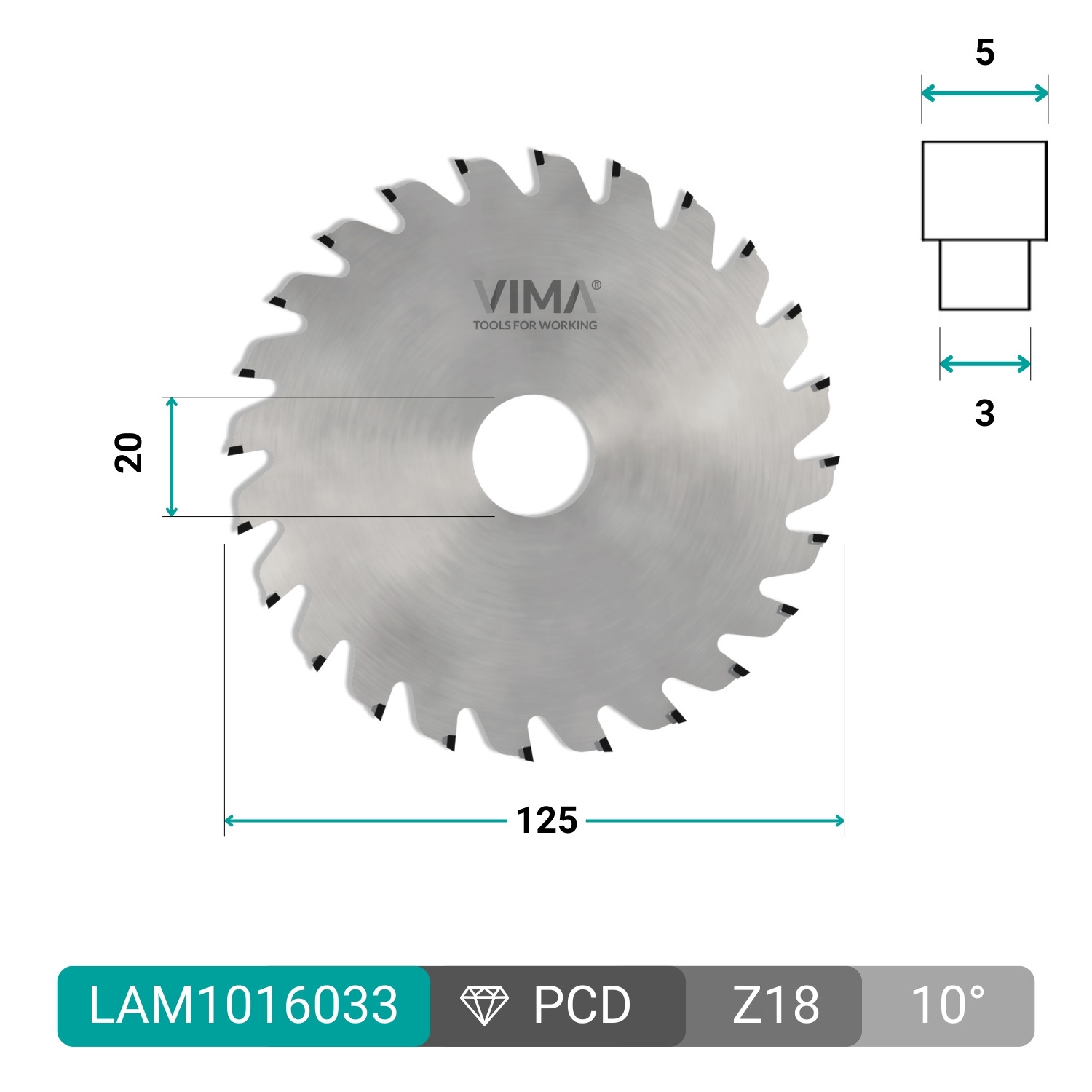

LAM1016033	125,00	20	5	3,00	-	18	10°	~~€269.00~~ €188.30	-	cart
LAM1016034	125,00	20	6	4,00	-	18	10°	~~€279.00~~ €195.30	-	cart
LAM1016035	125,00	30	3.2	2,20	-	18	10°	~~€249.00~~ €174.30	-	cart
LAM1016036	125,00	30	3.5	2,20	-	18	10°	~~€253.00~~ €177.10	-	cart
LAM1016037	125,00	30	4	2,20	-	18	10°	~~€258.00~~ €180.60	-	cart
LAM1016038	125,00	30	4.5	3,00	-	18	10°	~~€263.00~~ €184.10	-	cart
LAM1016039	125,00	30	5	3,00	-	18	10°	~~€269.00~~ €188.30	-	cart
LAM1016040	125,00	30	6	4,00	-	18	10°	~~€279.00~~ €195.30	-	cart
LAM1016041	125,00	20	3	2,20	-	24	10°	~~€297.00~~ €207.90	-	cart
LAM1016042	125,00	20	3.2	2,20	-	24	10°	~~€300.00~~ €210.00	-	cart
LAM1016043	125,00	20	3.5	2,20	-	24	10°	~~€304.00~~ €212.80	-	cart
LAM1016044	125,00	20	4	2,20	-	24	10°	~~€311.00~~ €217.70	-	cart
LAM1016045	125,00	20	4.5	3,00	-	24	10°	~~€318.00~~ €222.60	-	cart
LAM1016046	125,00	20	5	3,00	-	24	10°	~~€325.00~~ €227.50	-	cart

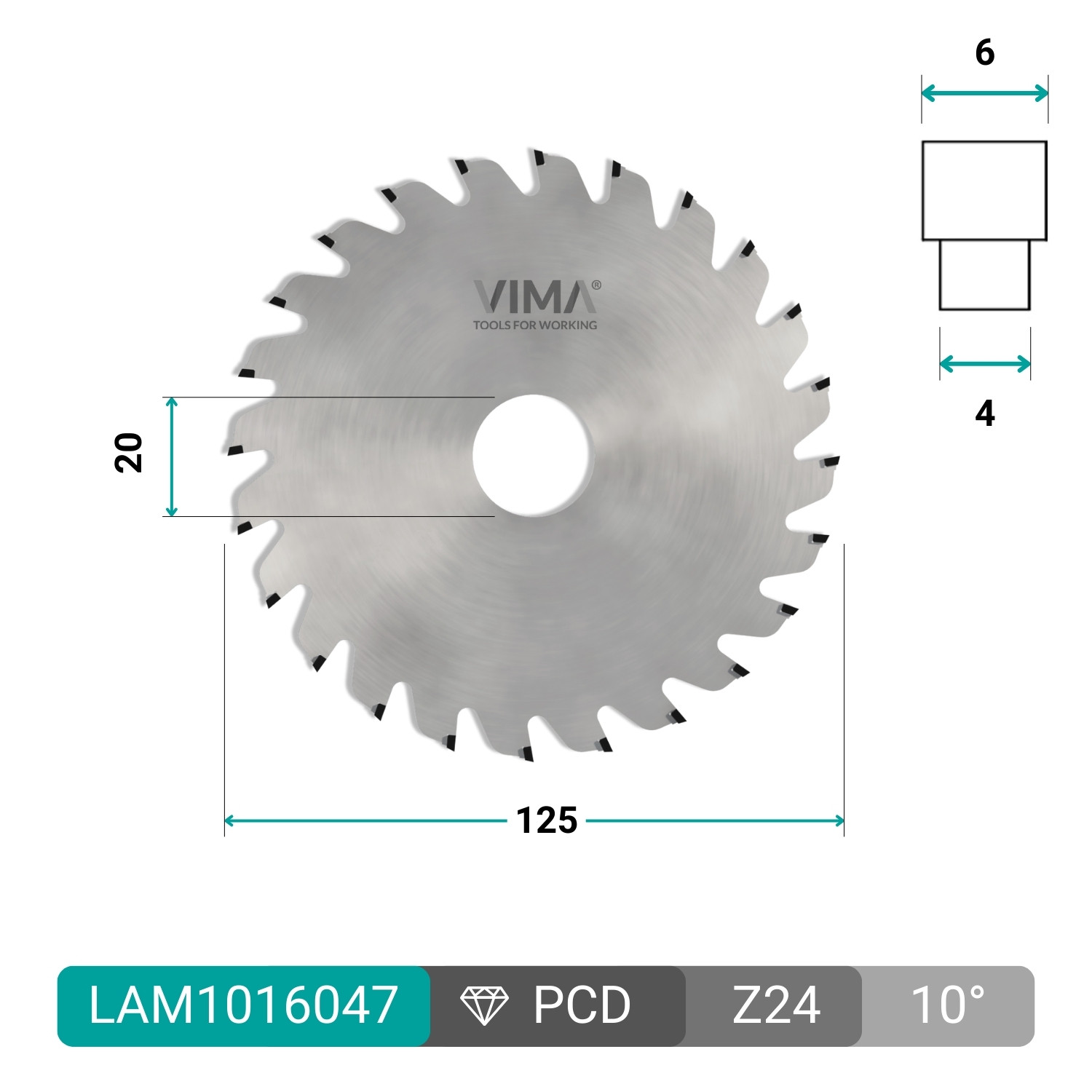

LAM1016047	125,00	20	6	4,00	-	24	10°	~~€339.00~~ €237.30	-	cart
LAM1016048	125,00	30	3.2	2,20	-	24	10°	~~€300.00~~ €210.00	-	cart
LAM1016049	125,00	30	3.5	2,20	-	24	10°	~~€304.00~~ €212.80	-	cart
LAM1016050	125,00	30	4	2,20	-	24	10°	~~€311.00~~ €217.70	-	cart
LAM1016051	125,00	30	4.5	3,00	-	24	10°	~~€318.00~~ €222.60	-	cart
LAM1016052	125,00	30	5	3,00	-	24	10°	~~€325.00~~ €227.50	-	cart
LAM1016053	125,00	30	6	4,00	-	24	10°	~~€339.00~~ €237.30	-	cart
LAM1016054	140,00	20	3.2	2,20	-	24	10°	~~€300.00~~ €210.00	-	cart
LAM1016055	140,00	20	3.5	2,20	-	24	10°	~~€304.00~~ €212.80	-	cart
LAM1016056	140,00	20	4	2,20	-	24	10°	~~€311.00~~ €217.70	-	cart
LAM1016057	140,00	20	4.5	3,00	-	24	10°	~~€318.00~~ €222.60	-	cart
LAM1016058	140,00	20	5	3,00	-	24	10°	~~€325.00~~ €227.50	-	cart
LAM1016059	140,00	20	6	4,00	-	24	10°	~~€339.00~~ €237.30	-	cart
LAM1016060	140,00	30	3.2	2,20	-	24	10°	~~€300.00~~ €210.00	-	cart
LAM1016061	140,00	30	3.5	2,20	-	24	10°	~~€304.00~~ €212.80	-	cart
LAM1016062	140,00	30	4	2,20	-	24	10°	~~€311.00~~ €217.70	-	cart
LAM1016063	140,00	30	4.5	3,00	-	24	10°	~~€318.00~~ €222.60	-	cart
LAM1016064	140,00	30	5	3,00	-	24	10°	~~€325.00~~ €227.50	-	cart
LAM1016065	140,00	30	6	4,00	-	24	10°	~~€339.00~~ €237.30	-	cart
LAM1016066	150,00	20	3.2	2,20	-	24	10°	~~€300.00~~ €210.00	-	cart
LAM1016067	150,00	20	3.5	2,20	-	24	10°	~~€304.00~~ €212.80	-	cart
LAM1016068	150,00	20	4	2,50	-	24	10°	~~€311.00~~ €217.70	-	cart
LAM1016069	150,00	20	4.5	3,00	-	24	10°	~~€318.00~~ €222.60	-	cart
LAM1016070	150,00	20	5	3,00	-	24	10°	~~€325.00~~ €227.50	-	cart
LAM1016071	150,00	20	6	4,00	-	24	10°	~~€339.00~~ €237.30	-	cart
LAM1016072	150,00	30	3.2	2,20	-	24	10°	~~€300.00~~ €210.00	-	cart
LAM1016073	150,00	30	3.5	2,20	-	24	10°	~~€304.00~~ €212.80	-	cart
LAM1016074	150,00	30	4	2,50	-	24	10°	~~€311.00~~ €217.70	-	cart
LAM1016075	150,00	30	4.5	3,00	-	24	10°	~~€318.00~~ €222.60	-	cart
LAM1016076	150,00	30	5	3,00	-	24	10°	~~€325.00~~ €227.50	-	cart
LAM1016077	150,00	30	6	4,00	-	24	10°	~~€339.00~~ €237.30	-	cart
LAM1016078	150,00	20	3.2	2,20	-	36	10°	~~€401.00~~ €280.70	-	cart
LAM1016079	150,00	20	3.5	2,20	-	36	10°	~~€407.00~~ €284.90	-	cart
LAM1016080	150,00	20	4	2,50	-	36	10°	~~€418.00~~ €292.60	-	cart
LAM1016081	150,00	20	4.5	3,00	-	36	10°	~~€428.00~~ €299.60	-	cart
LAM1016082	150,00	20	5	3,00	-	36	10°	~~€439.00~~ €307.30	-	cart

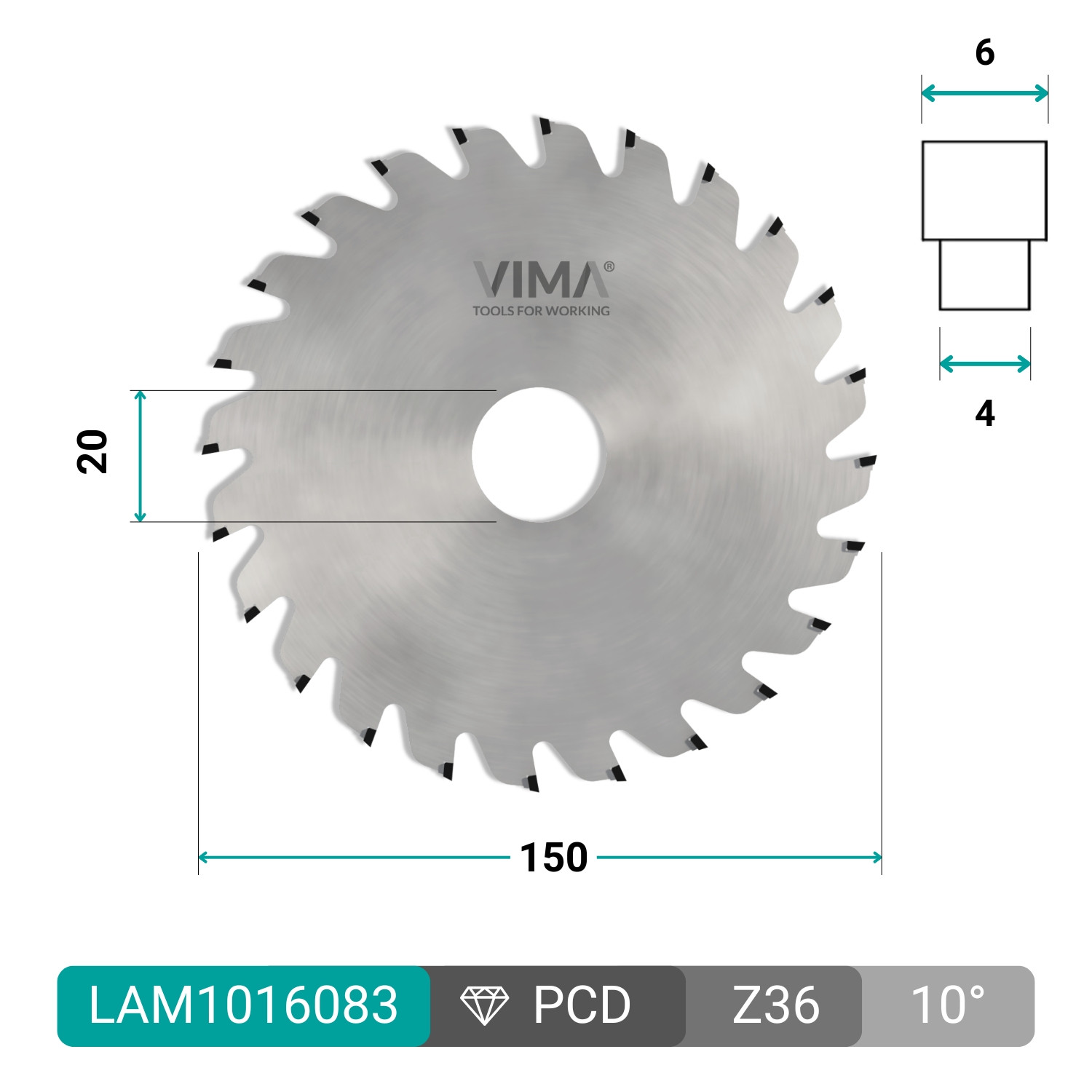

LAM1016083	150,00	20	6	4,00	-	36	10°	~~€460.00~~ €322.00	-	cart
LAM1016084	150,00	30	3.2	2,20	-	36	10°	~~€401.00~~ €280.70	-	cart
LAM1016085	150,00	30	3.5	2,20	-	36	10°	~~€407.00~~ €284.90	-	cart
LAM1016086	150,00	30	4	2,50	-	36	10°	~~€418.00~~ €292.60	-	cart

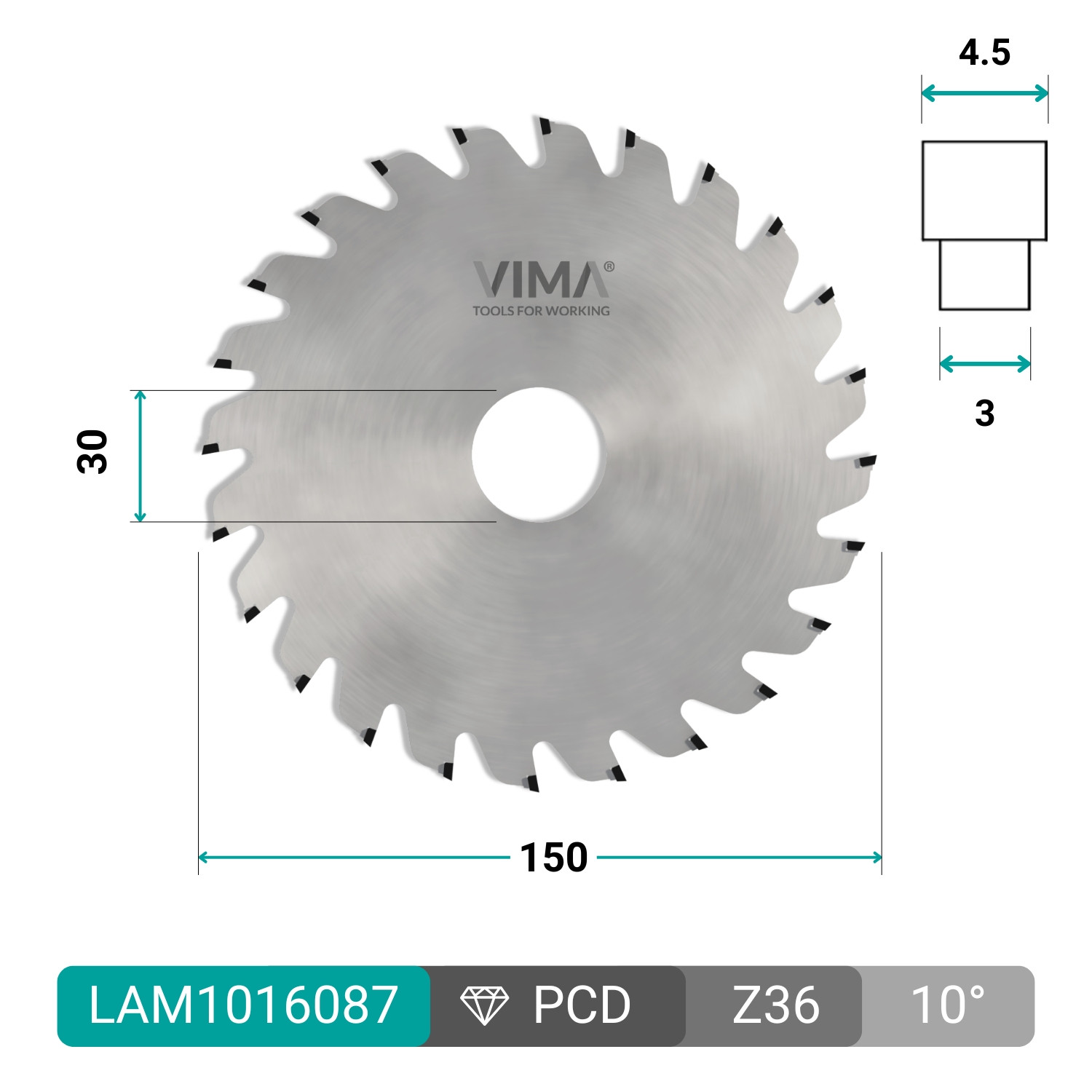

LAM1016087	150,00	30	4.5	3,00	-	36	10°	~~€428.00~~ €299.60	-	cart
LAM1016088	150,00	30	5	3,00	-	36	10°	~~€439.00~~ €307.30	-	cart
LAM1016089	150,00	30	6	4,00	-	36	10°	~~€460.00~~ €322.00	-	cart
LAM1016090	180,00	20	3.2	2,20	-	24	10°	~~€300.00~~ €210.00	-	cart
LAM1016091	180,00	20	3.5	2,20	-	24	10°	~~€304.00~~ €212.80	-	cart
LAM1016092	180,00	20	4	2,50	-	24	10°	~~€311.00~~ €217.70	-	cart
LAM1016093	180,00	20	4.5	3,00	-	24	10°	~~€318.00~~ €222.60	-	cart
LAM1016094	180,00	20	5	3,00	-	24	10°	~~€325.00~~ €227.50	-	cart
LAM1016095	180,00	20	6	4,00	-	24	10°	~~€339.00~~ €237.30	-	cart
LAM1016096	180,00	30	3.2	2,20	-	24	10°	~~€300.00~~ €210.00	-	cart
LAM1016097	180,00	30	3.5	2,20	-	24	10°	~~€304.00~~ €212.80	-	cart
LAM1016098	180,00	30	4	2,50	-	24	10°	~~€311.00~~ €217.70	-	cart
LAM1016099	180,00	30	4.5	3,00	-	24	10°	~~€318.00~~ €222.60	-	cart
LAM1016100	180,00	30	5	3,00	-	24	10°	~~€325.00~~ €227.50	-	cart
LAM1016101	180,00	30	6	4,00	-	24	10°	~~€339.00~~ €237.30	-	cart
LAM1016102	180,00	20	3.2	2,20	-	36	10°	~~€401.00~~ €280.70	-	cart
LAM1016103	180,00	20	3.5	2,20	-	36	10°	~~€407.00~~ €284.90	-	cart

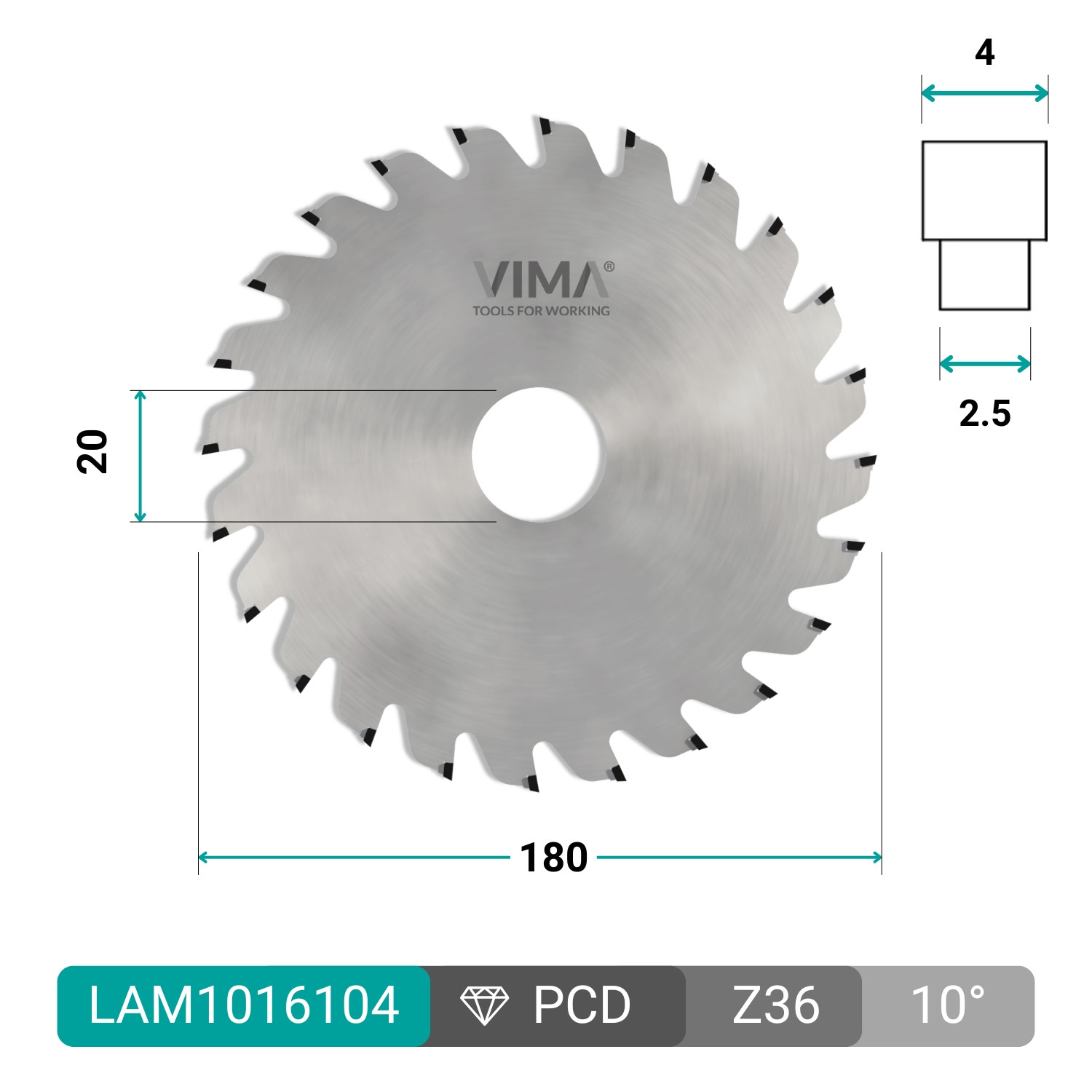

LAM1016104	180,00	20	4	2,50	-	36	10°	~~€418.00~~ €292.60	-	cart
LAM1016105	180,00	20	4.5	3,00	-	36	10°	~~€428.00~~ €299.60	-	cart
LAM1016106	180,00	20	5	3,00	-	36	10°	~~€439.00~~ €307.30	-	cart
LAM1016107	180,00	20	6	4,00	-	36	10°	~~€460.00~~ €322.00	-	cart
LAM1016108	180,00	30	3.2	2,20	-	36	10°	~~€401.00~~ €280.70	-	cart
LAM1016109	180,00	30	3.5	2,20	-	36	10°	~~€407.00~~ €284.90	-	cart
LAM1016110	180,00	30	4	2,50	-	36	10°	~~€418.00~~ €292.60	-	cart
LAM1016111	180,00	30	4.5	3,00	-	36	10°	~~€428.00~~ €299.60	-	cart
LAM1016112	180,00	30	5	3,00	-	36	10°	~~€439.00~~ €307.30	-	cart
LAM1016113	180,00	30	6	4,00	-	36	10°	~~€460.00~~ €322.00	-	cart
LAM1016114	200,00	20	3.2	2,20	-	24	10°	~~€300.00~~ €210.00	-	cart
LAM1016115	200,00	20	3.5	2,20	-	24	10°	~~€304.00~~ €212.80	-	cart
LAM1016116	200,00	20	4	2,50	-	24	10°	~~€311.00~~ €217.70	-	cart
LAM1016117	200,00	20	4.5	3,00	-	24	10°	~~€318.00~~ €222.60	-	cart
LAM1016118	200,00	20	5	3,00	-	24	10°	~~€325.00~~ €227.50	-	cart
LAM1016119	200,00	20	6	4,00	-	24	10°	~~€339.00~~ €237.30	-	cart
LAM1016120	200,00	30	3.2	2,20	-	24	10°	~~€300.00~~ €210.00	-	cart
LAM1016121	200,00	30	3.5	2,20	-	24	10°	~~€304.00~~ €212.80	-	cart

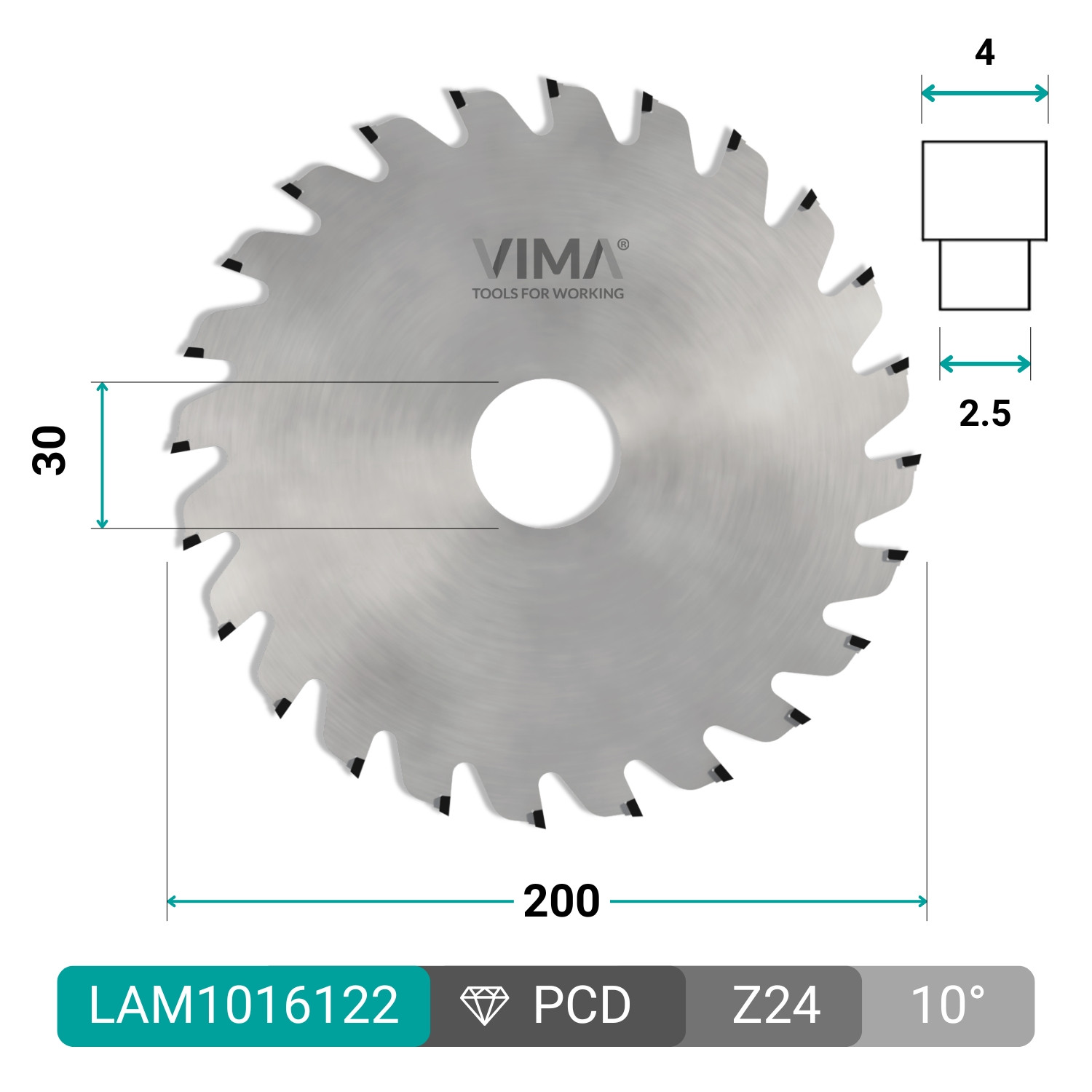

LAM1016122	200,00	30	4	2,50	-	24	10°	~~€311.00~~ €217.70	-	cart
LAM1016123	200,00	30	4.5	3,00	-	24	10°	~~€318.00~~ €222.60	-	cart
LAM1016124	200,00	30	5	3,00	-	24	10°	~~€325.00~~ €227.50	-	cart

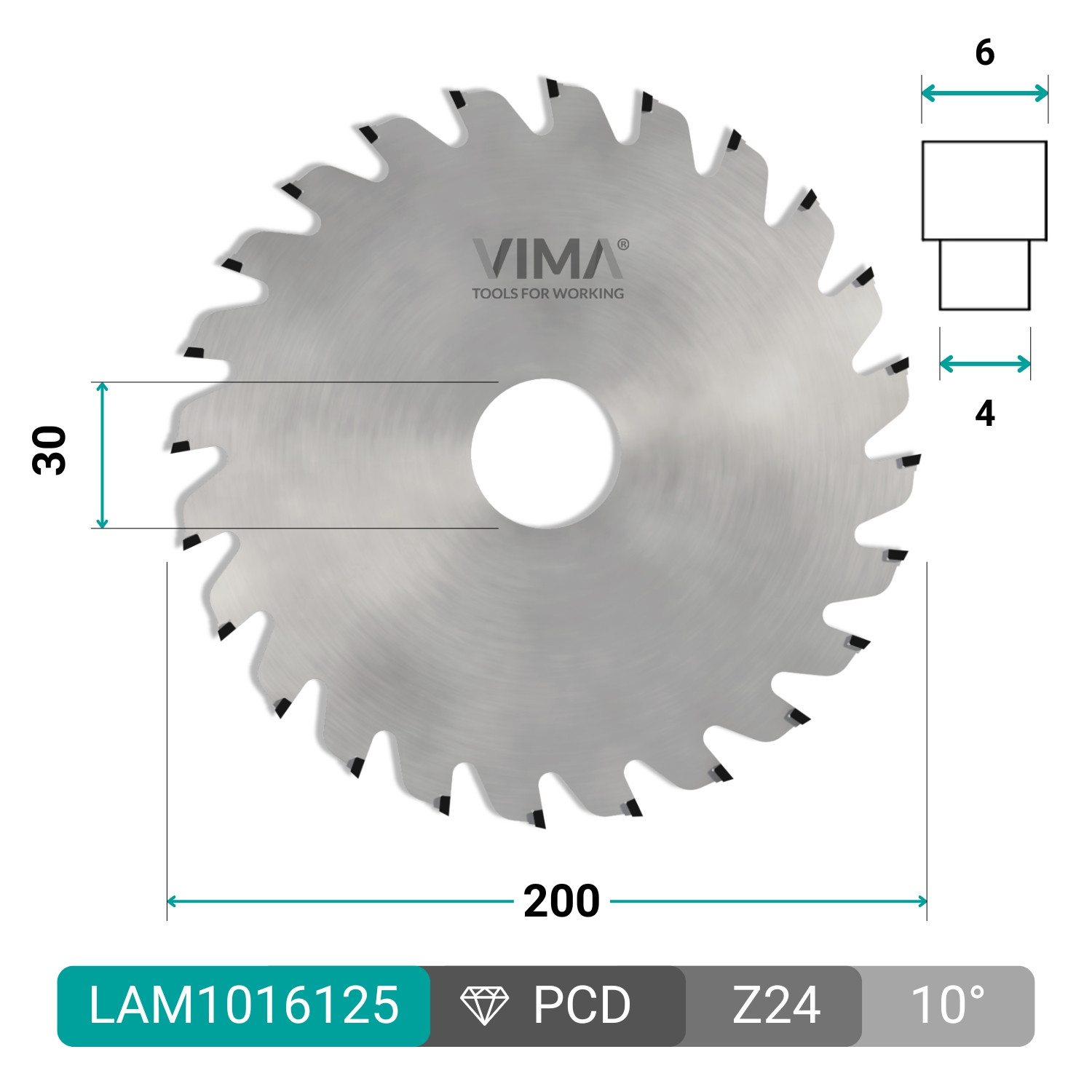

LAM1016125	200,00	30	6	4,00	-	24	10°	~~€339.00~~ €237.30	-	cart
LAM1016126	200,00	20	3.2	2,20	-	36	10°	~~€401.00~~ €280.70	-	cart
LAM1016127	200,00	20	3.5	2,20	-	36	10°	~~€407.00~~ €284.90	-	cart
LAM1016128	200,00	20	4	2,50	-	36	10°	~~€418.00~~ €292.60	-	cart
LAM1016129	200,00	20	4.5	3,00	-	36	10°	~~€428.00~~ €299.60	-	cart
LAM1016130	200,00	20	5	3,00	-	36	10°	~~€439.00~~ €307.30	-	cart
LAM1016131	200,00	20	6	4,00	-	36	10°	~~€460.00~~ €322.00	-	cart
LAM1016132	200,00	30	3.2	2,20	-	36	10°	~~€401.00~~ €280.70	-	cart
LAM1016133	200,00	30	3.5	2,20	-	36	10°	~~€407.00~~ €284.90	-	cart
LAM1016134	200,00	30	4	2,50	-	36	10°	~~€418.00~~ €292.60	-	cart

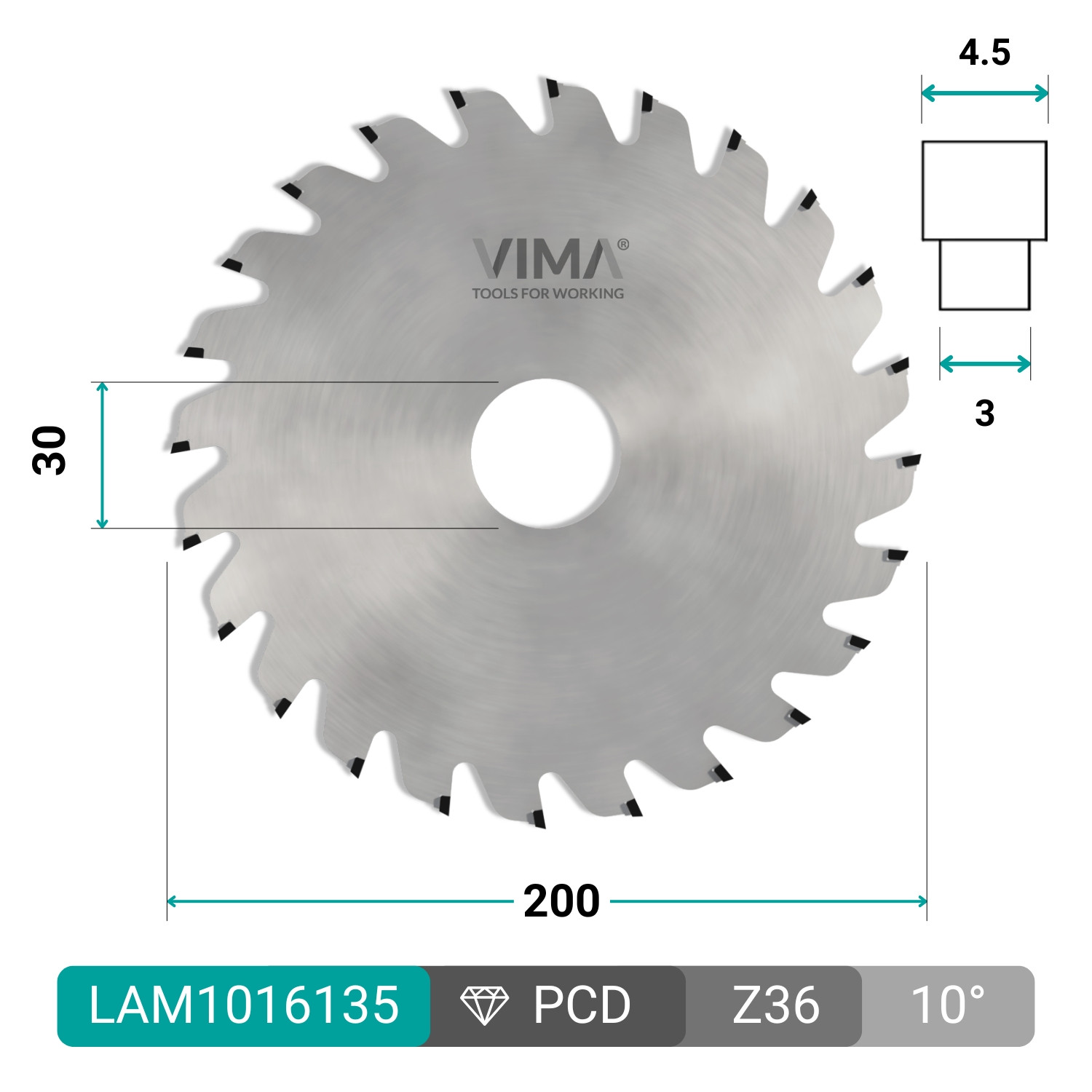

LAM1016135	200,00	30	4.5	3,00	-	36	10°	~~€428.00~~ €299.60	-	cart
LAM1016136	200,00	30	5	3,00	-	36	10°	~~€439.00~~ €307.30	-	cart
LAM1016137	200,00	30	6	4,00	-	36	10°	~~€460.00~~ €322.00	-	cart
LAM1016001	100,00	20	3	2,20	-	12	10°	~~€198.00~~ €138.60	-	cart
LAM1016002	100,00	20	3.2	2,20	-	12	10°	~~€199.00~~ €139.30	-	cart
LAM1016003	100,00	20	3.5	2,20	-	12	10°	~~€201.00~~ €140.70	-	cart
LAM1016004	100,00	20	4	2,20	-	12	10°	~~€205.00~~ €143.50	-	cart
LAM1016005	100,00	20	4.5	3,00	-	12	10°	~~€208.00~~ €145.60	-	cart
LAM1016006	100,00	20	5	3,00	-	12	10°	~~€212.00~~ €148.40	-	cart
LAM1016007	100,00	20	6	4,00	-	12	10°	~~€219.00~~ €153.30	-	cart
LAM1016008	100,00	30	3	2,20	-	12	10°	~~€198.00~~ €138.60	-	cart
LAM1016009	100,00	30	3.2	2,20	-	12	10°	~~€199.00~~ €139.30	-	cart
LAM1016010	100,00	30	3.5	2,20	-	12	10°	~~€201.00~~ €140.70	-	cart
LAM1016011	100,00	30	4	2,20	-	12	10°	~~€205.00~~ €143.50	-	cart
LAM1016012	100,00	30	4.5	3,00	-	12	10°	~~€208.00~~ €145.60	-	cart
LAM1016013	100,00	30	5	3,00	-	12	10°	~~€212.00~~ €148.40	-	cart
LAM1016014	100,00	30	6	4,00	-	12	10°	~~€219.00~~ €153.30	-	cart
LAM1016015	125,00	20	3	2,20	-	12	10°	~~€198.00~~ €138.60	-	cart
LAM1016016	125,00	20	3.2	2,20	-	12	10°	~~€199.00~~ €139.30	-	cart
LAM1016017	125,00	20	3.5	2,20	-	12	10°	~~€201.00~~ €140.70	-	cart

VAT included if applicable. EU customers registered in VIES and non-EU customers will see prices excluding VAT after registration and approval by an administrator.

WhatsApp support +39 349 7760165 Products available in stock, H24 shipping. Delivery is estimated to arrive in 3/5/10 days.

WhatsApp support +39 349 7760165

Products available in stock, H24 shipping

Delivery is estimated to arrive in 3/5/10 days

Description
Product Details

Description

The LAM1016 GROOVINGCUT 5 is a PCD (polycrystalline diamond) circular grooving blade designed for flat grooves with high precision and long-lasting performance. The H6 PCD tip provides exceptional wear resistance and consistent cutting quality, while the FZ tooth geometry enables smooth feed and optimal chip evacuation during intensive machining.

Main features:

H6 PCD cutting edge for extended tool life
FZ tooth geometry for smooth and controlled cuts
Positive rake angle for improved feed
Designed for flat grooving on CNC and panel saws
Excellent performance on abrasive boards
Industrial-grade construction Made in Italy

Benefits:

Delivers superior durability, clean edges and minimal maintenance. Ideal for furniture production, industrial machining and high-volume processing of engineered wood panels.

Suitable materials: MDF/HDF, double-laminated MDF/HDF, chipboard, laminated chipboard, plywood, laminated plywood, hardwood and softwood.

Product Details

ReferenceLAM1016018

Data sheet

H PCD	H 6MM
CUTTING TYPE	DIA
SHARPENING GEOMETRY	FZ
FEEDING SYSTEM	MAN MEC
TYPE OF PROCESSING	GROOVING CUTTER
CUTTING ANGLE	POSITIVE
WORKABLE MATERIALS	Hard wood Light wood MDF HDF MDF HDF double-sided laminated Particle board Particle board double face laminate Plywood Plywood double face laminate
