VIMA tool for working

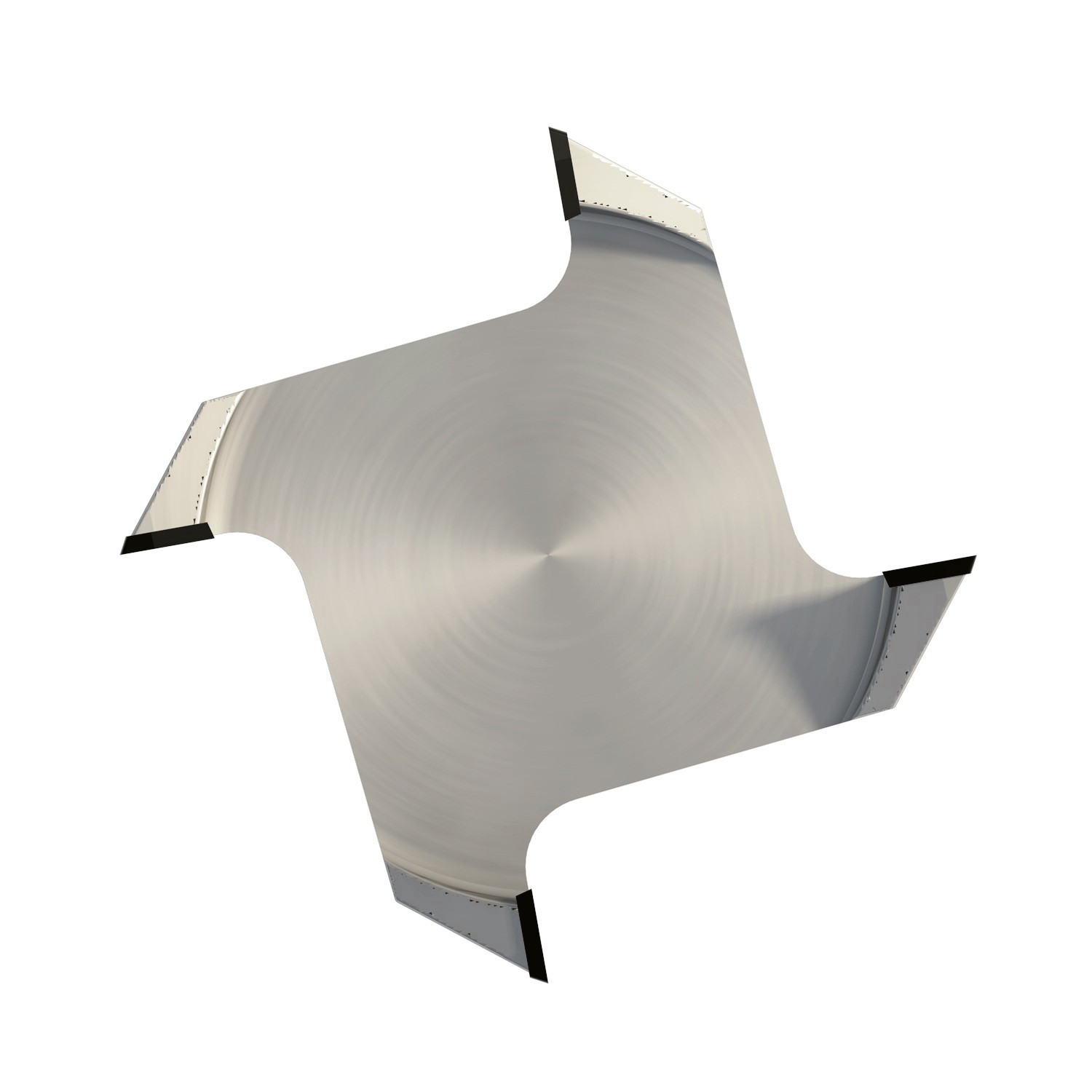

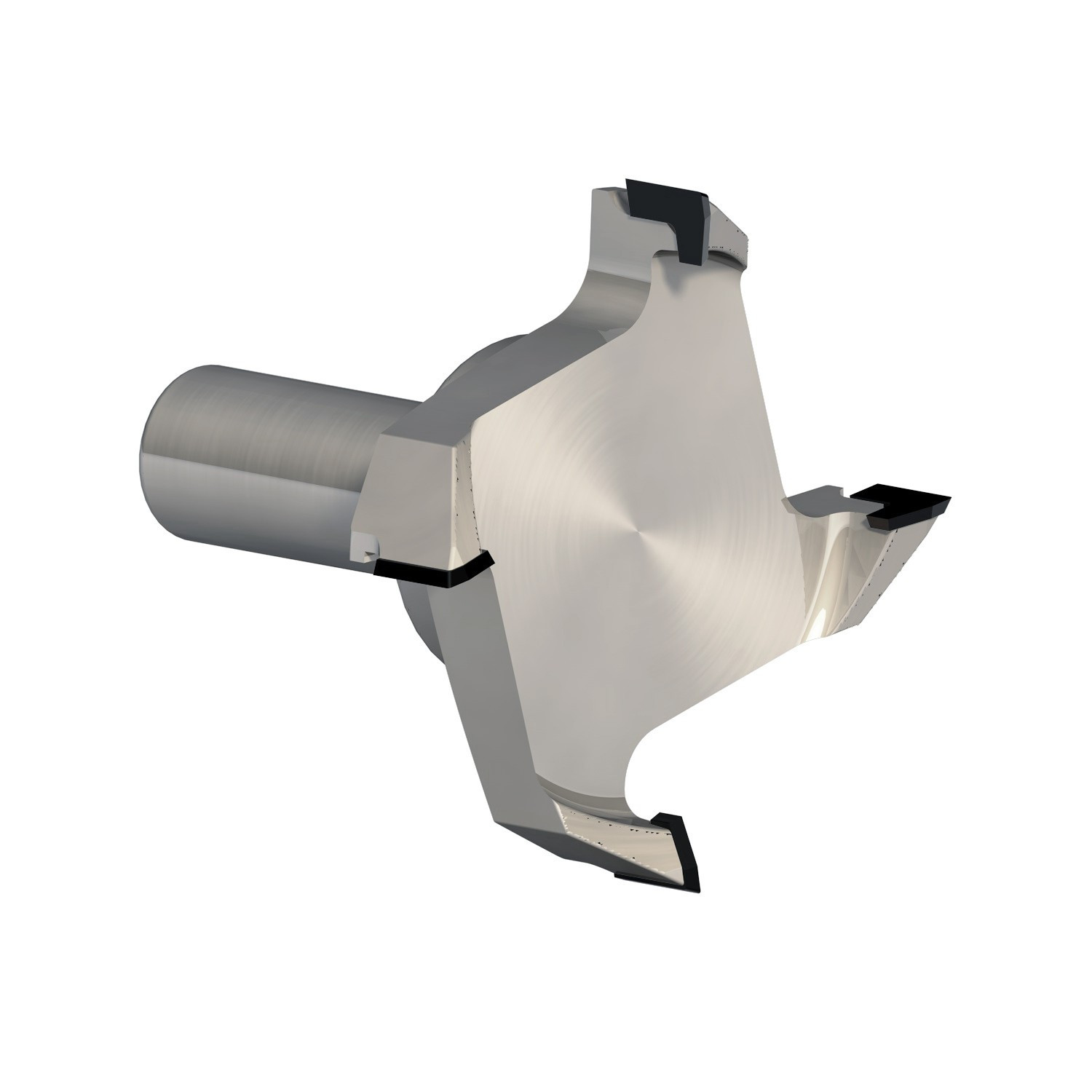

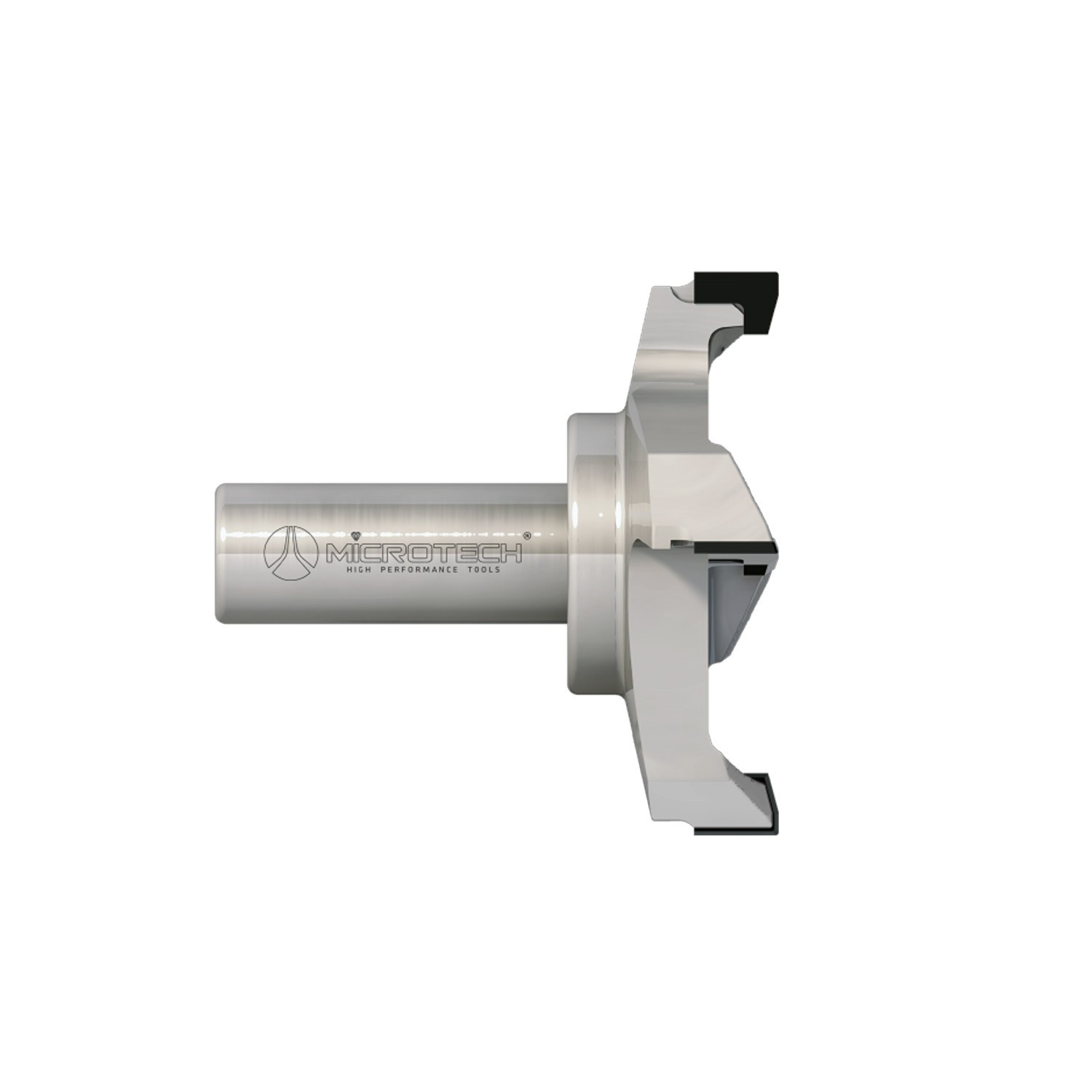

Diamond surfacing cutter for planing and rebates

Product Code: FPD2056
Serie: REBATING SHANK CUTTERS
VIMA tool for working

Diamond surfacing cutter designed for accurate planing of panels and for cutting clean rebates on compact materials. The 0° axial angle and the R0.5 edge radius help minimize visible surfacing marks and deliver a more uniform finish, even on coated or delicate surfaces.

• PCD H4.5mm for long life and consistent results
• 0° axial angle for stable, controlled surfacing
• R0.5 radius to reduce marks and improve finish quality

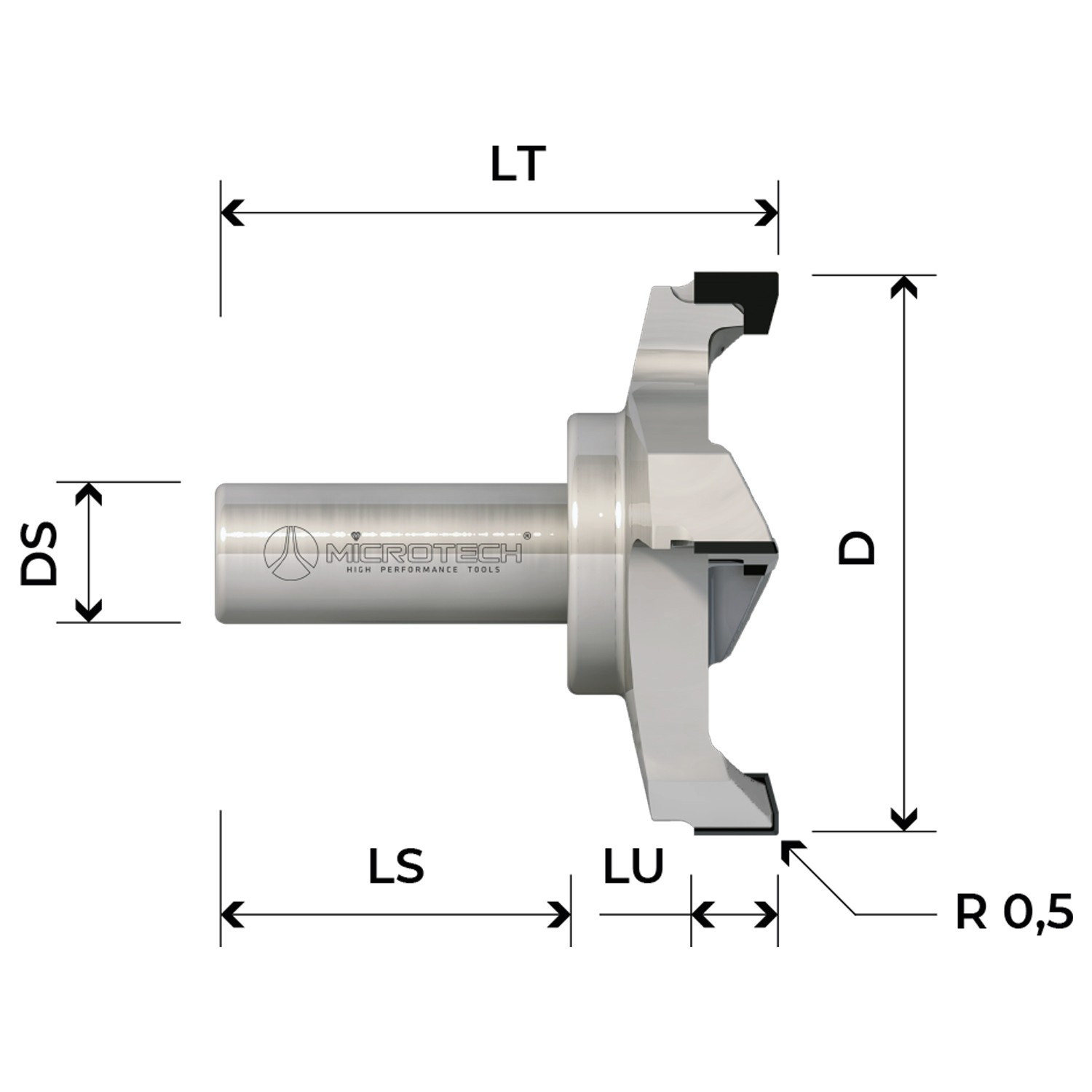

D (Ø)
LU – Useful cutting length
DS (shank Ø)
LS (shank length)
LT (total length)
Z TOT.
R
ROT.

  • 100% Money-Back Guarantee
    100% Money-Back Guarantee
  • Fast support via WhatsApp +39 349 7760165
    Fast support via WhatsApp +39 349 7760165
  • FREE Shipping on all orders over €69 within Italy
    FREE Shipping on all orders over €69 within Italy
  • Orders placed before 2:00 PM (with items in stock) are shipped the same day
    Orders placed before 2:00 PM (with items in stock) are shipped the same day
SKU: FPD2056001

Scroll the TABLE left and right
Reference D (Ø) LU – Useful cutting length DS (shank Ø) LS (shank length) LT (total length) Z TOT. R ROT. Quantity Availability Price Volume discounts Cart
FPD2056001 60,00 12 20,00 50 80,00 4 0,50 DX 10+ Product available in stock, H24 shipping. €341.60 €273.28 -
cart
FPD2056002 80,00 12 20,00 50 80,00 4 0,50 DX 0 In production, delivery is estimated to arrive in 3/5/10 business-days. €341.60 €273.28 -
cart
FPD2056003 100,00 12 20,00 50 85,00 4 0,50 DX 10 Product available in stock, H24 shipping. €380.64 €304.51 -
cart
FPD2056004 100,00 12 20,00 50 85,00 6 0,50 DX 2 Product available in stock, H24 shipping. €477.02 €381.62 -
cart
FPD2056005 60,00 12 12,00 40 75,00 3 0,50 DX 7 Product available in stock, H24 shipping. €291.58 €233.26 -
cart
FPD2056006 40,00 12 12,00 40 70,00 3 - DX 0 In production, delivery is estimated to arrive in 3/5/10 business-days. €285.48 €228.38 -
cart

VAT included if applicable. EU customers registered in VIES and non-EU customers will see prices excluding VAT after registration and approval by an administrator.

WhatsApp support +39 349 7760165     semaforo-verde.png  Products available in stock, H24 shipping.     semaforo-giallo.png  Delivery is estimated to arrive in 3/5/10 days.

WhatsApp support +39 349 7760165

semaforo-verde.png Products available in stock, H24 shipping

semaforo-giallo.png Delivery is estimated to arrive in 3/5/10 days

Description

The diamond surfacing cutter FPD2056 is built to plane large faces and create precise rebates with either manual or mechanical feed. With PCD H4.5mm DIA edges, it offers excellent wear resistance, while the 0° axial angle supports stable contact during surfacing operations.

Main features:

  • PCD H4.5mm for extended life and consistent performance
  • 0° axial angle for uniform surfacing on wide areas
  • R0.5 side radius to limit visible pass marks
  • Steel body for rigidity and accurate finishing
  • Suitable for MAN and MEC feed for planing and rebates

Benefits:

Cleaner finish, less rework and higher productivity on panels and compact materials. The R0.5 radius helps avoid pronounced lines and improves the visual quality of the surfaced area.

Suitable for Aluminium, Drywall, Corian, Fiber cement, Gypsum fiberboard, HPL, Hardwood, Softwood, MDF HDF, Laminated MDF HDF, Double sided laminated MDF HDF, Plastic materials, Plywood, Laminated plywood, Double sided laminated plywood, Plexiglass, Chipboard, Laminated chipboard, Double sided laminated chipboard.

Product Details
VIMA tool for working
FPD2056001
21 Items

Data sheet

H PCDH 4,5MM
CUTTING TYPEDIA
TYPE OF PLUNG TIPNO DRILL
AXIAL ANGLE0°
TOOL BODY TYPESTEEL
FEEDING SYSTEMMAN
MEC
TYPE OF PROCESSINGPLANING
WORKABLE MATERIALSAluminum
Corian
Drywall
Fiber cement
HPL
Hard wood
Laminate plywood
Light wood
MDF HDF
MDF HDF double-sided laminated
MDF HDF laminated
Particle board
Particle board double face laminate
Particle board laminate
Plaster fiber
Plastic
Plexiglass
Plywood
Plywood double face laminate

Specific References

mpnFPD2056001
