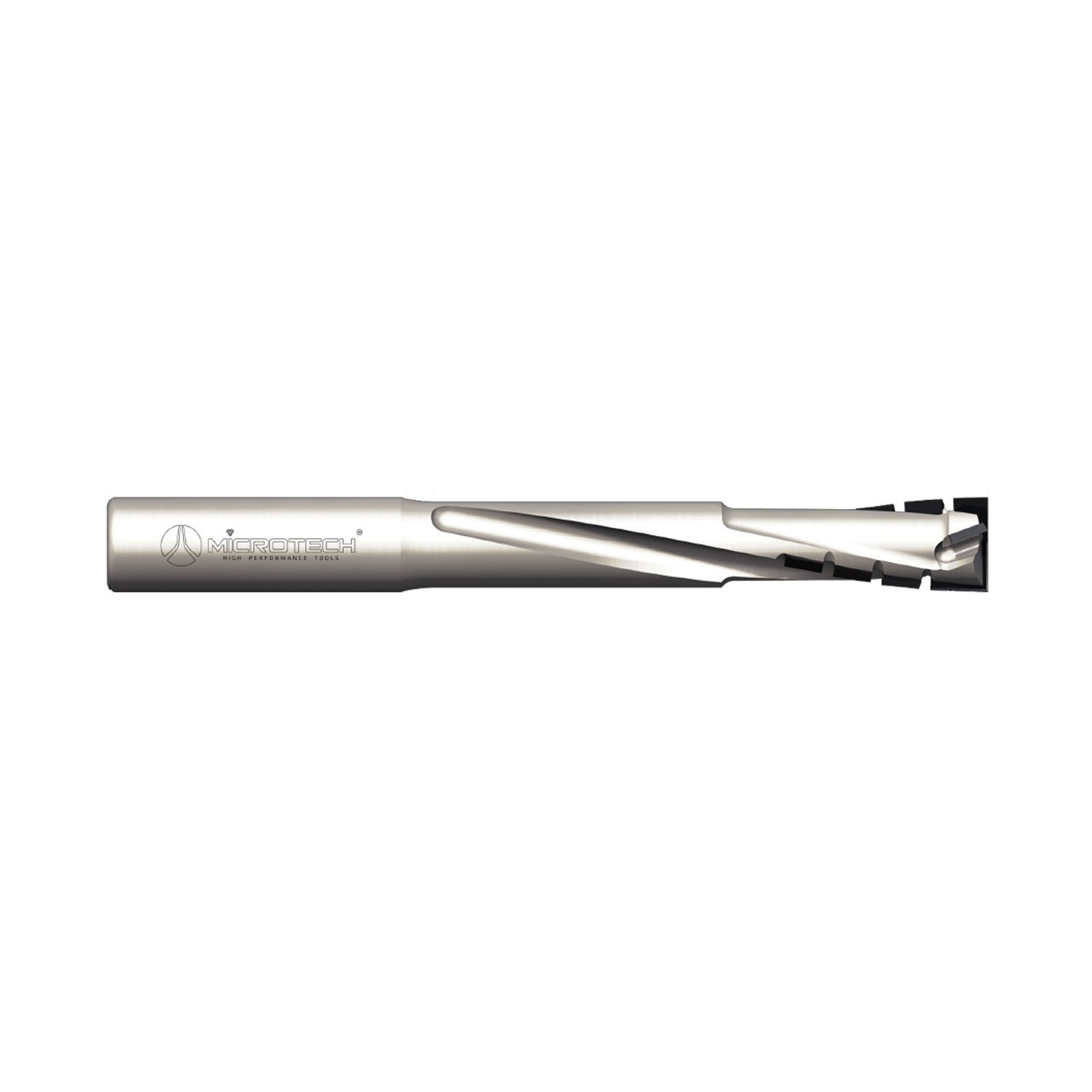

PCD diamond cutter for door lock mortises Z2+2 heavy metal body

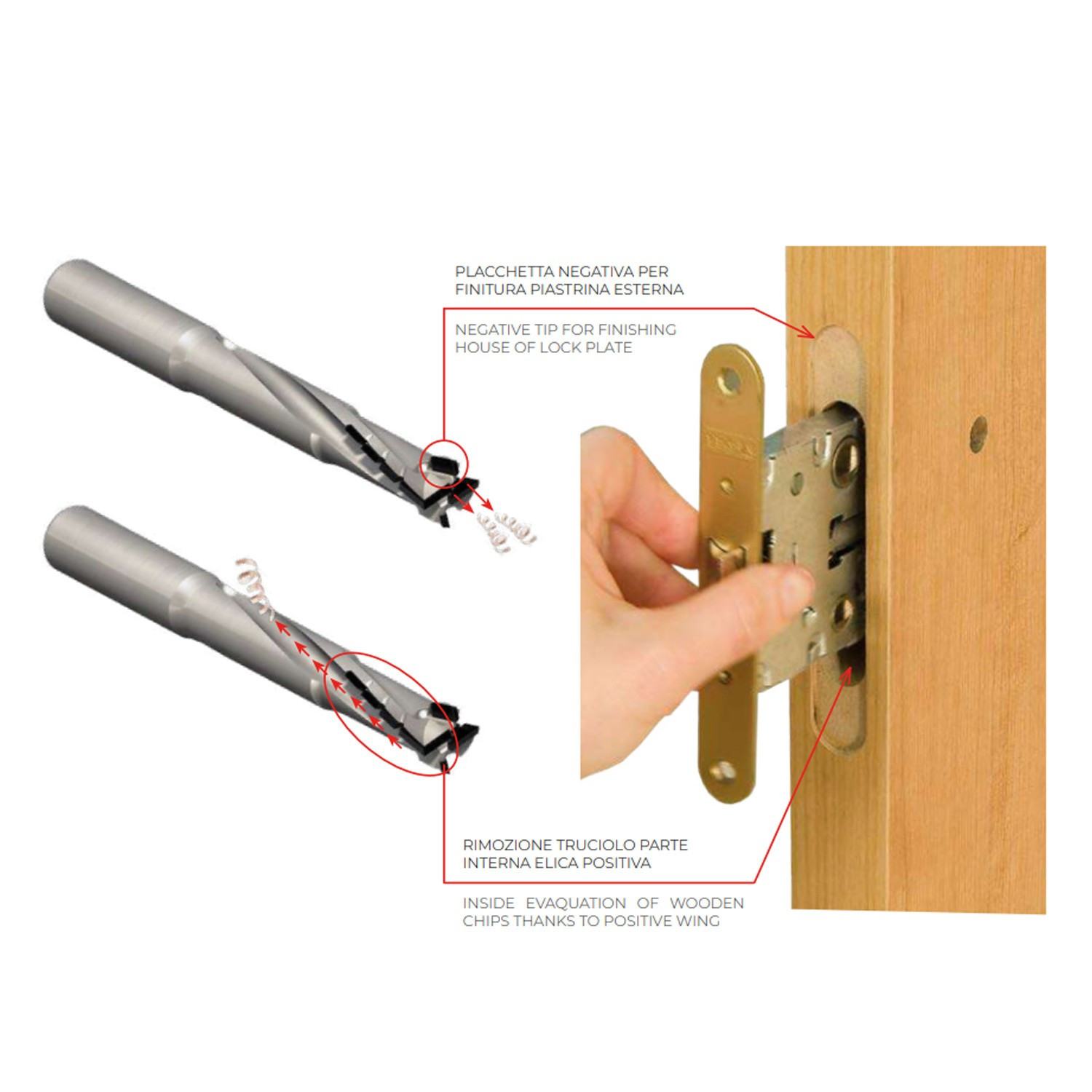

The FPD2052PCD is a PCD diamond cutter for door lock mortises, developed for professional CNC applications with mechanical feed. The Z2+2 configuration with chip breaker delivers excellent surface quality on the external lock plate area while ensuring high material removal inside the mortise.

The heavy metal body provides strong rigidity and significantly reduces vibration during machining, extending tool life and improving process stability. The tool is PCD tipped and plunge-capable, ramp interpolation entry is recommended to preserve performance over time.

Technical features:

• PCD diamond cutting edges H 3.5 mm
• Z2+2 configuration with chip breaker
• Dedicated geometry for door lock mortising
• Heavy metal body for high rigidity
• Mechanical feed on CNC machines

Operational advantages:

This PCD cutter for door locks ensures precise mortises, clean lock plate edges and reliable performance in intensive production cycles, reducing rework and scrap.

Machinable materials:

Hardwood, softwood, MDF HDF, laminated MDF HDF, double-sided laminated MDF HDF, plywood, laminated plywood, double-sided laminated plywood, chipboard, laminated chipboard, double-sided laminated chipboard.
