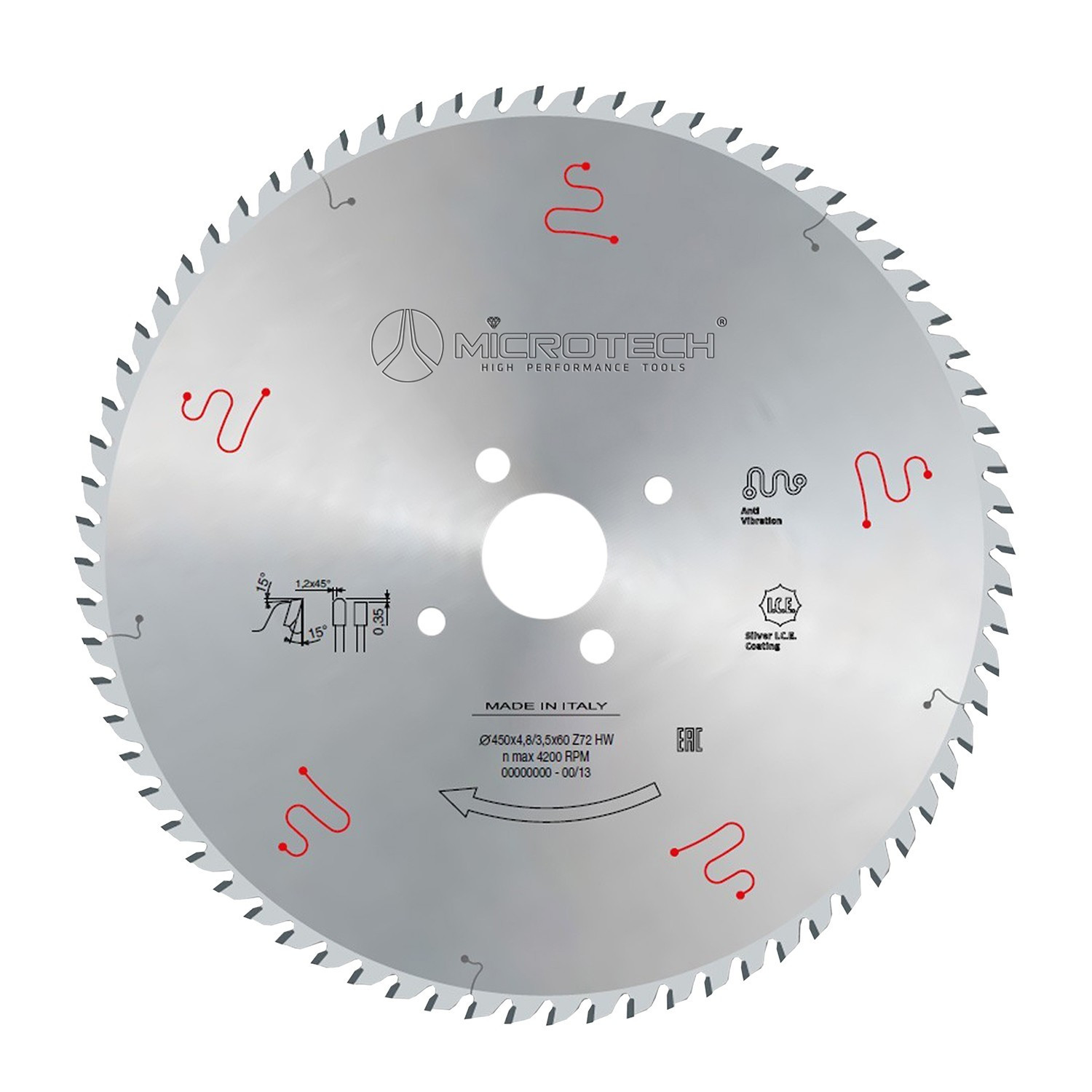

HW circular blade for panel saws

Product Code: LAM1520

LAM1520

SERIES: TOPCUT 8

HW (carbide) circular blade designed for industrial panel saws, suitable for cutting single panels or bundles using a scoring blade. Ensures precision, stability and excellent finishing on wood-based, composite and plastic materials.

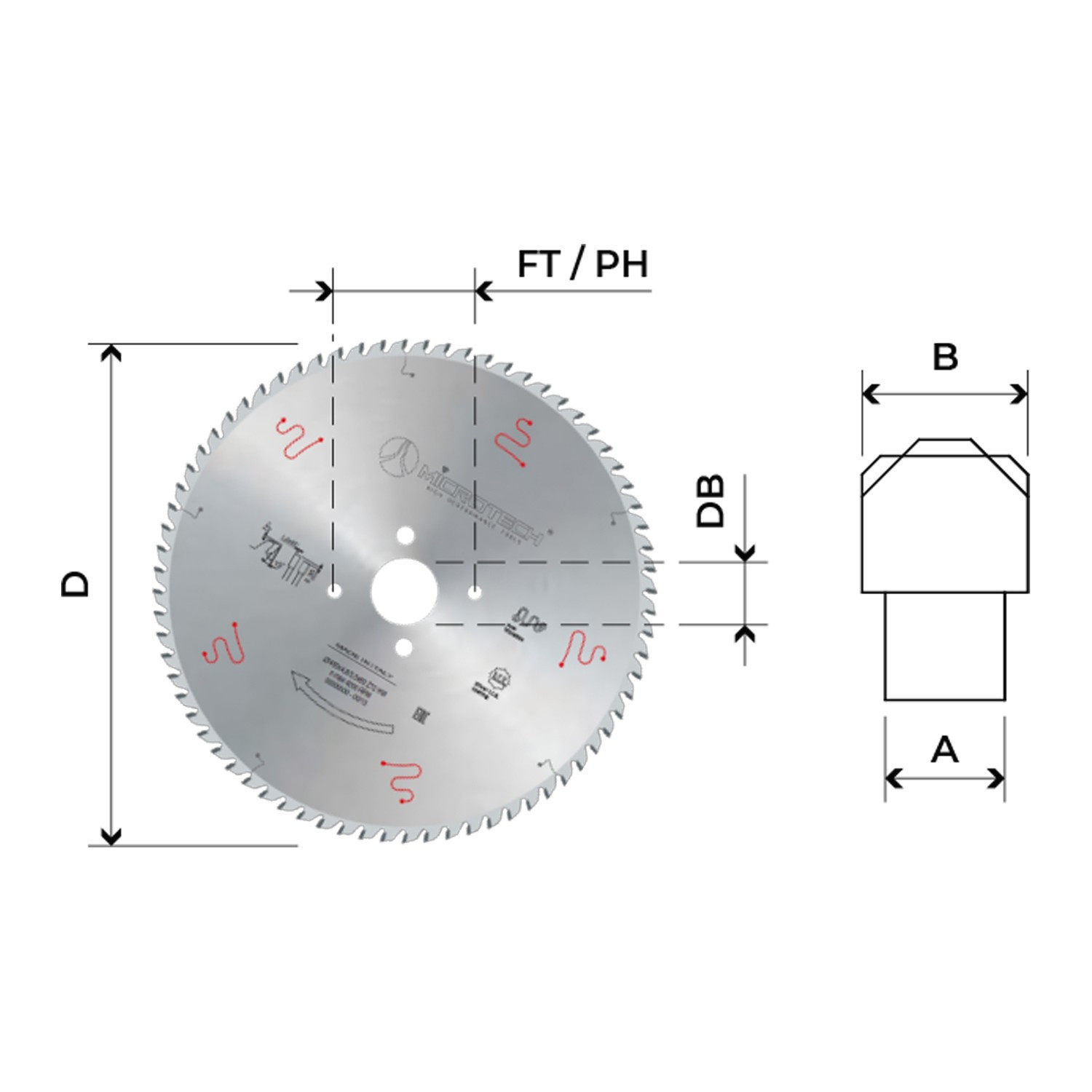

D (Ø)

DB (hole Ø)

B (thicn.)

A (tickn.)

FT / PH

Z TOT.

ALFA

100% Money-Back Guarantee
Fast support via WhatsApp +39 349 7760165
FREE Shipping on all orders over €69 within Italy
Orders placed before 2:00 PM (with items in stock) are shipped the same day

Scroll the TABLE left and right

Image	Reference	D (Ø)	DB (hole Ø)	B (thicn.)	A (tickn.)	FT / PH	Z TOT.	MACCHINA	ALFA	Quantity	Price	Volume discounts	Cart
-	LAM1520001	300,00	30	4.4	3,20	2/7/42 +2/9,5/45,5 +2/10/60	60	-	10°	10+	~~€134.20~~ €87.23	-	cart
-	LAM1520002	300,00	65	4.4	3,20	2/9/110	60	SELCO	10°	10+	~~€134.20~~ €87.23	-	cart
-	LAM1520003	300,00	75	4.4	3,20	4/15/105 + 3/7/100	60	-	10°	10+	~~€145.18~~ €94.37	-	cart
-	LAM1520004	300,00	80	4.4	3,20	2/14/110+4/9/100	60	GABBIANI	10°	0	~~€134.20~~ €87.23	-	cart
-	LAM1520005	300,00	30	4.4	3,20	2/7/42 +2/9,5/45,5 +2/10/60	72	-	10°	10+	~~€156.16~~ €101.50	-	cart
-	LAM1520007	300,00	80	4.4	3,20	2/14/110+4/9/100	72	GABBIANI	10°	9	~~€156.16~~ €101.50	-	cart
-	LAM1520008	320,00	50	4.4	3,20	4/13/80	60	GIBEN	10°	0	~~€168.36~~ €109.43	-	cart
-	LAM1520009	320,00	65	4.4	3,20	2/9/110	60	SELCO	10°	10+	~~€152.50~~ €99.13	-	cart
-	LAM1520010	320,00	80	4.4	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	60	-	10°	10+	~~€168.36~~ €109.43	-	cart
-	LAM1520011	320,00	50	4.4	3,20	4/13/80	72	GIBEN	10°	7	~~€179.34~~ €116.57	-	cart
-	LAM1520012	320,00	75	4.4	3,20	-	72	GIBEN/MACMAZZA	10°	10+	~~€179.34~~ €116.57	-	cart
-	LAM1520014	330,00	50	4.4	3,20	4/13/80	60	GIBEN	10°	10+	~~€168.36~~ €109.43	-	cart
-	LAM1520015	350,00	30	4.25	3,20	2/7/42 +2/9,5/45,5 +2/10/60	72	-	10°	0	~~€165.92~~ €107.85	-	cart
-	LAM1520016	350,00	30	4.4	3,20	2/7/42 +2/9,5/45,5 +2/10/60	54	-	10°	5	~~€131.76~~ €85.64	-	cart
-	LAM1520017	350,00	75	4.4	3,20	-	54	-	10°	10+	~~€131.76~~ €85.64	-	cart
-	LAM1520018	350,00	80	4.4	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	54	-	10°	10+	~~€131.76~~ €85.64	-	cart
-	LAM1520019	350,00	30	4.4	3,20	2/7/42 +2/9,5/45,5 +2/10/60	72	-	10°	10+	~~€150.06~~ €97.54	-	cart
-	LAM1520020	350,00	50	4.4	3,20	4/13/80	72	GIBEN	10°	0	~~€165.92~~ €107.85	-	cart
-	LAM1520021	350,00	60	4.4	3,20	2/14/100	72	HOLZMA	10°	10+	~~€165.92~~ €107.85	-	cart
-	LAM1520022	350,00	65	4.4	3,20	2/9/110	72	SELCO	10°	10+	~~€165.92~~ €107.85	-	cart
-	LAM1520023	350,00	75	4.4	3,20	4/15/105 + 3/7/100	72	-	10°	10+	~~€150.06~~ €97.54	-	cart
-	LAM1520024	350,00	80	4.4	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	72	-	10°	10	~~€150.06~~ €97.54	-	cart
-	LAM1520026	355,00	30	4.4	3,20	2/7/42 +2/9,5/45,5 +2/10/60	72	-	10°	10+	~~€195.20~~ €126.88	-	cart
-	LAM1520027	355,00	65	4.4	3,20	2/9/110	72	SELCO	10°	10+	~~€195.20~~ €126.88	-	cart
-	LAM1520028	355,00	75	4.4	3,20	4/15/105 + 3/7/100	72	-	10°	3	~~€195.20~~ €126.88	-	cart
-	LAM1520029	355,00	80	4.4	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	72	-	10°	10+	~~€195.20~~ €126.88	-	cart
-	LAM1520030	360,00	50	4.4	3,20	4/13/80	72	GIBEN	10°	0	~~€198.86~~ €129.26	-	cart
-	LAM1520031	360,00	65	4.6	3,20	2/9/110	72	SELCO	10°	0	~~€184.22~~ €119.74	-	cart
-	LAM1520032	370,00	30	4.4	3,20	-	72	SCHELLING	10°	10+	~~€184.22~~ €119.74	-	cart
-	LAM1520033	380,00	50	4.4	3,20	4/13/80	72	GIBEN	10°	10+	~~€187.88~~ €122.12	-	cart
-	LAM1520034	380,00	60	4.4	3,20	2/14/100	72	HOLZMA	10°	2	~~€170.80~~ €111.02	-	cart
-	LAM1520036	380,00	80	4.4	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	72	-	10°	10+	~~€187.88~~ €122.12	-	cart
-	LAM1520037	380,00	60	4.8	3,50	2/14/100	72	HOLZMA	10°	10+	~~€207.40~~ €134.81	-	cart
-	LAM1520039	400,00	30	4.25	3,20	22191	72	-	10°	0	~~€187.88~~ €122.12	-	cart
-	LAM1520040	400,00	30	4.4	3,20	22191	60	-	10°	10+	~~€151.28~~ €98.33	-	cart
-	LAM1520041	400,00	75	4.4	3,20	4/15/105	60	GIBEN / HOMAG	10°	10+	~~€151.28~~ €98.33	-	cart
-	LAM1520042	400,00	80	4.4	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	60	-	10°	10+	~~€151.28~~ €98.33	-	cart
-	LAM1520043	400,00	30	4.4	3,20	22191	72	-	10°	10+	~~€170.80~~ €111.02	-	cart
-	LAM1520044	400,00	60	4.4	3,20	-	72	ANTHON	10°	0	~~€187.88~~ €122.12	-	cart
-	LAM1520045	400,00	65	4.4	3,20	-	72	SELCO	10°	3	~~€187.88~~ €122.12	-	cart
-	LAM1520046	400,00	75	4.4	3,20	4/15/105	72	GIBEN / HOMAG	10°	10+	~~€170.80~~ €111.02	-	cart
-	LAM1520047	400,00	80	4.4	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	72	-	10°	10+	~~€170.80~~ €111.02	-	cart
-	LAM1520048	400,00	80	4.6	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	72	-	10°	10+	~~€178.12~~ €115.78	-	cart
-	LAM1520050	420,00	80	4.4	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	72	-	10°	2	~~€214.72~~ €139.57	-	cart
-	LAM1520051	420,00	60	4.8	3,50	2/14/125	72	HOLZMA	10°	10+	~~€230.58~~ €149.88	-	cart
-	LAM1520054	430,00	65	4.4	3,20	-	72	SELCO	10°	10+	~~€224.48~~ €145.91	-	cart
-	LAM1520055	430,00	75	4.4	3,20	4/15/105	72	GIBEN	10°	10+	~~€203.74~~ €132.43	-	cart
-	LAM1520056	430,00	80	4.4	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	72	-	10°	10+	~~€203.74~~ €132.43	-	cart
-	LAM1520059	430,00	70	4.8	3,50	-	72	SELCO	10°	10+	~~€241.56~~ €157.01	-	cart
-	LAM1520060	450,00	30	4.4	3,20	22161	72	SCHELLING	10°	0	~~€207.40~~ €134.81	-	cart
-	LAM1520062	450,00	75	4.4	3,20	-	72	MACMAZZA	10°	6	~~€218.38~~ €141.95	-	cart
-	LAM1520063	450,00	80	4.4	3,20	2/14/110 +2/7/110+4/19/120+2/9/130	72	-	10°	10+	~~€207.40~~ €134.81	-	cart
-	LAM1520065	450,00	60	4.8	3,50	2/14/125	72	HOLZMA	10°	1	~~€241.56~~ €157.01	-	cart
-	LAM1520066	450,00	80	4.8	3,50	2/14/110 +2/7/110+4/19/120+2/9/130	72	-	10°	10+	~~€241.56~~ €157.01	-	cart
-	LAM1520067	460,00	30	4.4	3,20	2/13/94	72	SCHELLING	10°	3	~~€237.90~~ €154.64	-	cart
-	LAM1520068	470,00	70	4.4	3,20	-	72	SELCO	10°	10+	~~€248.88~~ €161.77	-	cart
-	LAM1520069	470,00	75	4.4	3,20	4/15/105	72	GIBEN	10°	10+	~~€237.90~~ €154.64	-	cart
-	LAM1520070	470,00	75	4.4	3,20	4/15/105	96	GIBEN	10°	3	~~€278.16~~ €180.80	-	cart
-	LAM1520071	480,00	30	4.4	3,20	22191	72	SCHELLING	10°	10+	~~€237.90~~ €154.64	-	cart
-	LAM1520077	500,00	60	4.8	3,50	2/19/120+2/11/115	72	HOLZMA	10°	0	~~€264.74~~ €172.08	-	cart

VAT included if applicable. EU customers registered in VIES and non-EU customers will see prices excluding VAT after registration and approval by an administrator.

Prices include VAT   Products available in stock, 3/5 shipping day. Delivery is estimated to arrive in 6/10 days.

WhatsApp support +39 349 7760165

Products available in stock, H24 shipping

Delivery is estimated to arrive in 3/5/10 days

Description
Product Details

Description

The LAM1520 TOPCUT 8 is a high-performance HW (carbide) circular blade engineered for cutting single sheets or panel bundles with a scorer. Its FZ/TR tooth geometry, LOW NOISE body and positive rake provide smooth feed, reduced vibration and superior finishing on MDF/HDF, multilayer boards, plastics and composite sheets. Ideal for production lines requiring speed, accuracy and clean edges.

Main features:

Durable HW carbide cutting edge
FZ/TR geometry for precise cutting
LOW NOISE body for reduced vibration
Suitable for single panel or bundle cutting with scorer
Excellent on plastics, composites and wood panels
Designed for intensive mechanical feed

Benefits:

Delivers high finishing quality with reduced chipping, ensuring consistent results even at high feed speed. Ideal for woodworking industries and panel processing.

Suitable for aluminium composite, MDF/HDF, multilayer boards, chipboard, plastics and coated panels.

Product Details

BrandMicrotech

ReferenceLAM1520001

In stock47 Items

Data sheet

CUTTING TYPE	HW
SHARPENING GEOMETRY	FZ/TR
LOW NOISE	LOW NOISE
FEEDING SYSTEM	MEC
TYPE OF PROCESSING	SIZING
CUTTING ANGLE	POSITIVE
WORKABLE MATERIALS	Alucobond Aluminum Alupanel Bakelite Drywall Fiber cement Hard wood Laminate plywood Light wood MDF HDF MDF HDF double-sided laminated MDF HDF laminated Particle board Particle board double face laminate Plaster fiber Plastic Plywood Plywood double face laminate
