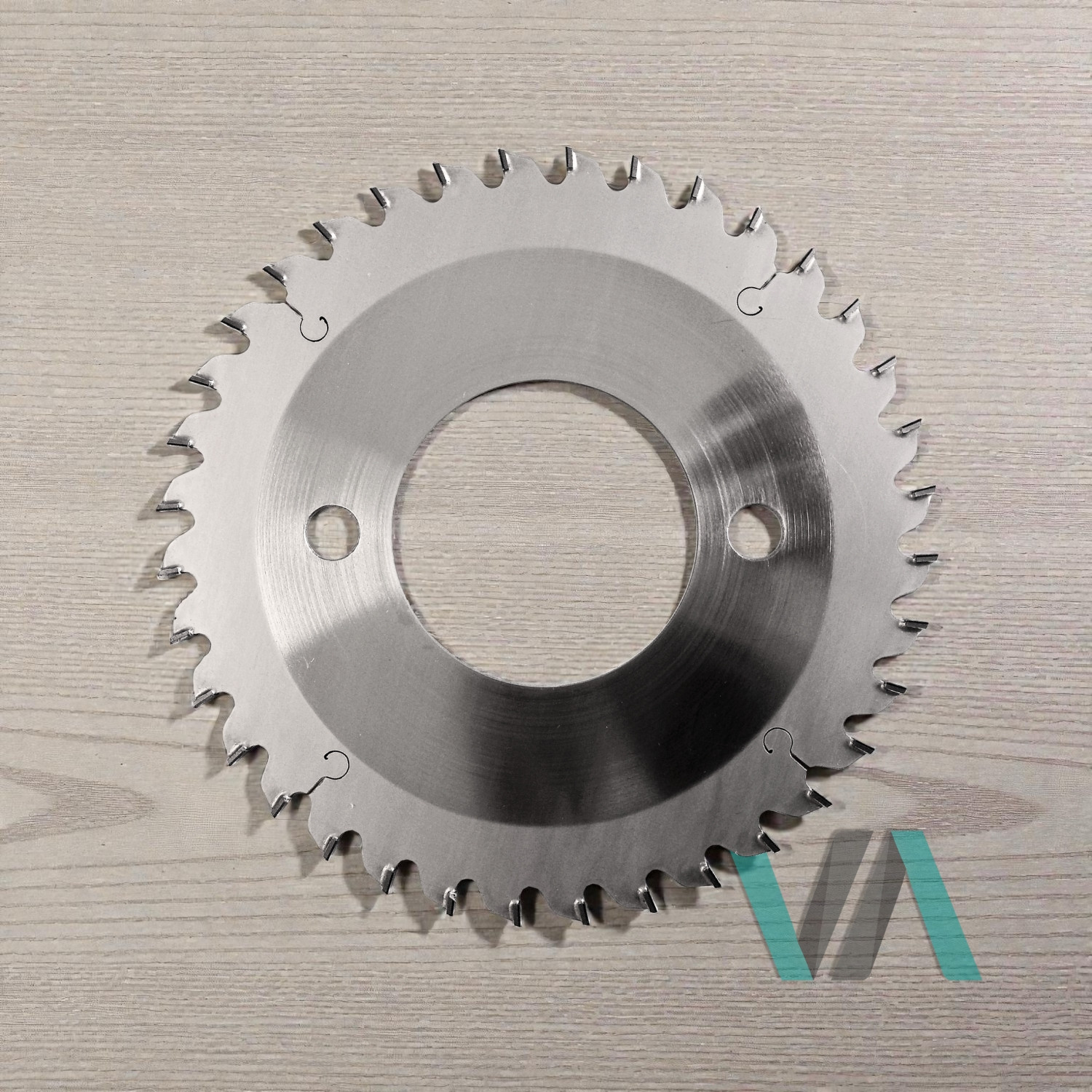

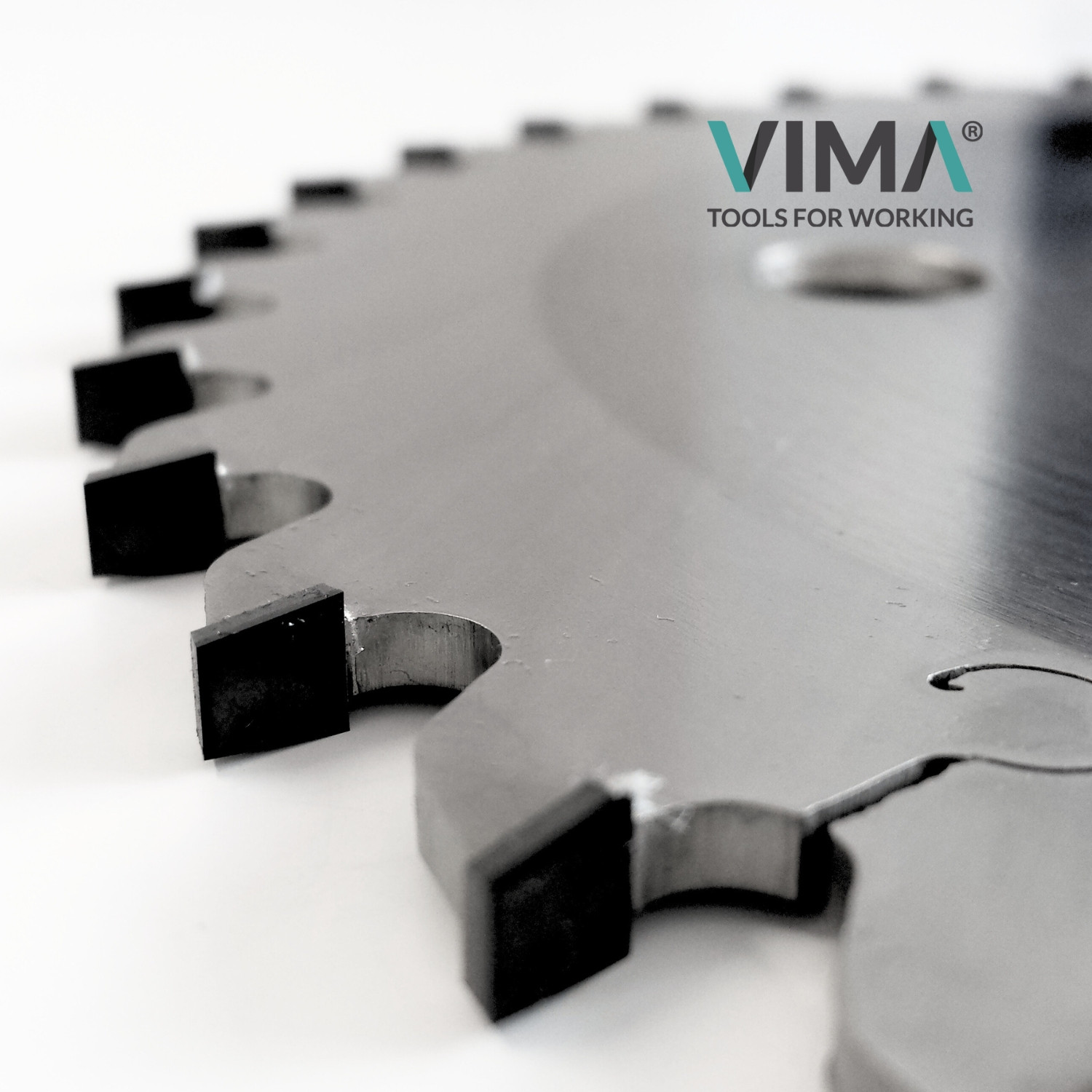

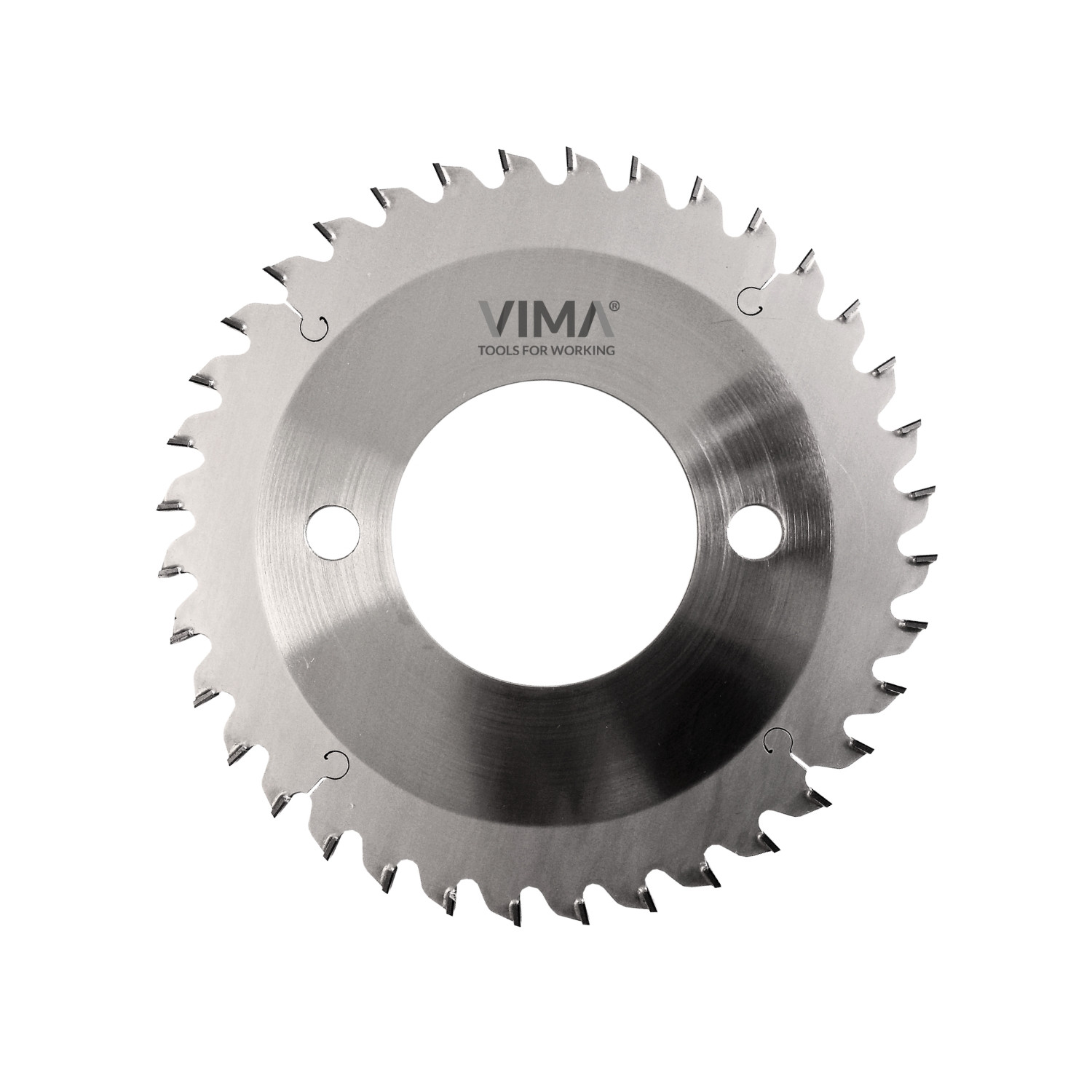

PCD H4 diamond scoring blade

Product Code: LAM1005

Serie: TOPCUT

PCD H4 diamond scoring blade engineered for stable, chip-free scoring on bilaminated, MDF and coated panels. Suitable for horizontal panel saws with height-adjustable scoring units.

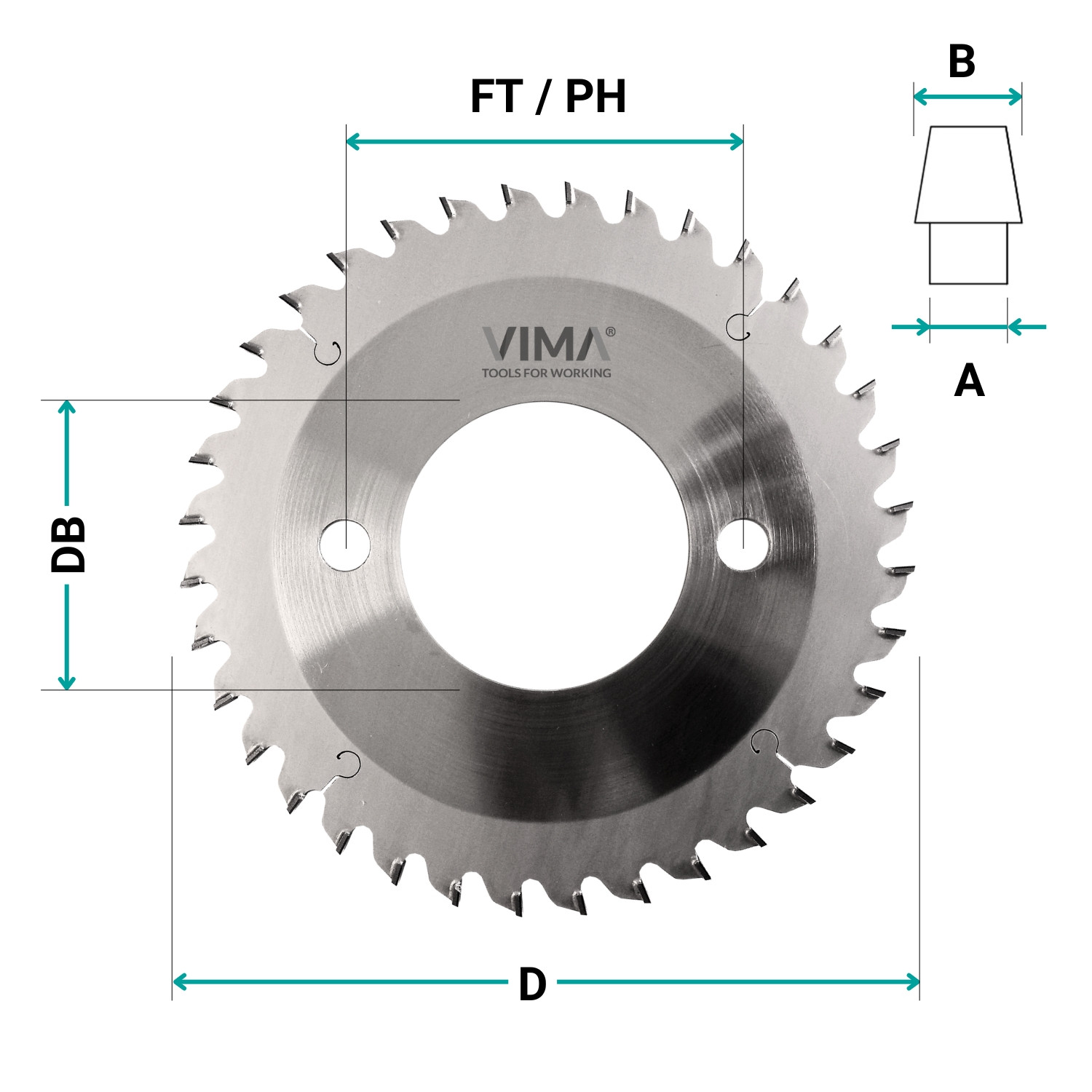

D (Ø)

DB (hole Ø)

B (thicn.)

A (tickn.)

Z TOT.

ALFA

100% Money-Back Guarantee
Fast support via WhatsApp +39 349 7760165
FREE Shipping on all orders over €69 within Italy
Orders placed before 2:00 PM (with items in stock) are shipped the same day

Scroll the TABLE left and right

Reference	D (Ø)	DB (hole Ø)	B (thicn.)	A (tickn.)	FT / PH	Z TOT.	MACCHINA	ALFA	Quantity	Price	Volume discounts	Cart
LAM1005001	80,00	20	3.1/4.3	2,20	-	12	-	5°	0	~~€219.60~~ €153.72	-	cart
LAM1005002	80,00	22	3.1/4.3	2,20	-	12	-	5°	0	~~€219.60~~ €153.72	-	cart
LAM1005003	100,00	20	3.1/4.3	2,20	-	24	SCHELLING	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005004	100,00	22	3.1/4.3	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005005	110,00	20	3.1/4.3	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005006	110,00	22	3.1/4.3	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005007	115,00	20	3.1/4.3	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005008	115,00	22	3.1/4.3	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005009	120,00	20	2.8/4	2,20	-	24	SCHELLING	5°	1	~~€368.44~~ €257.91	-	cart
LAM1005010	120,00	22	2.8/4	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart

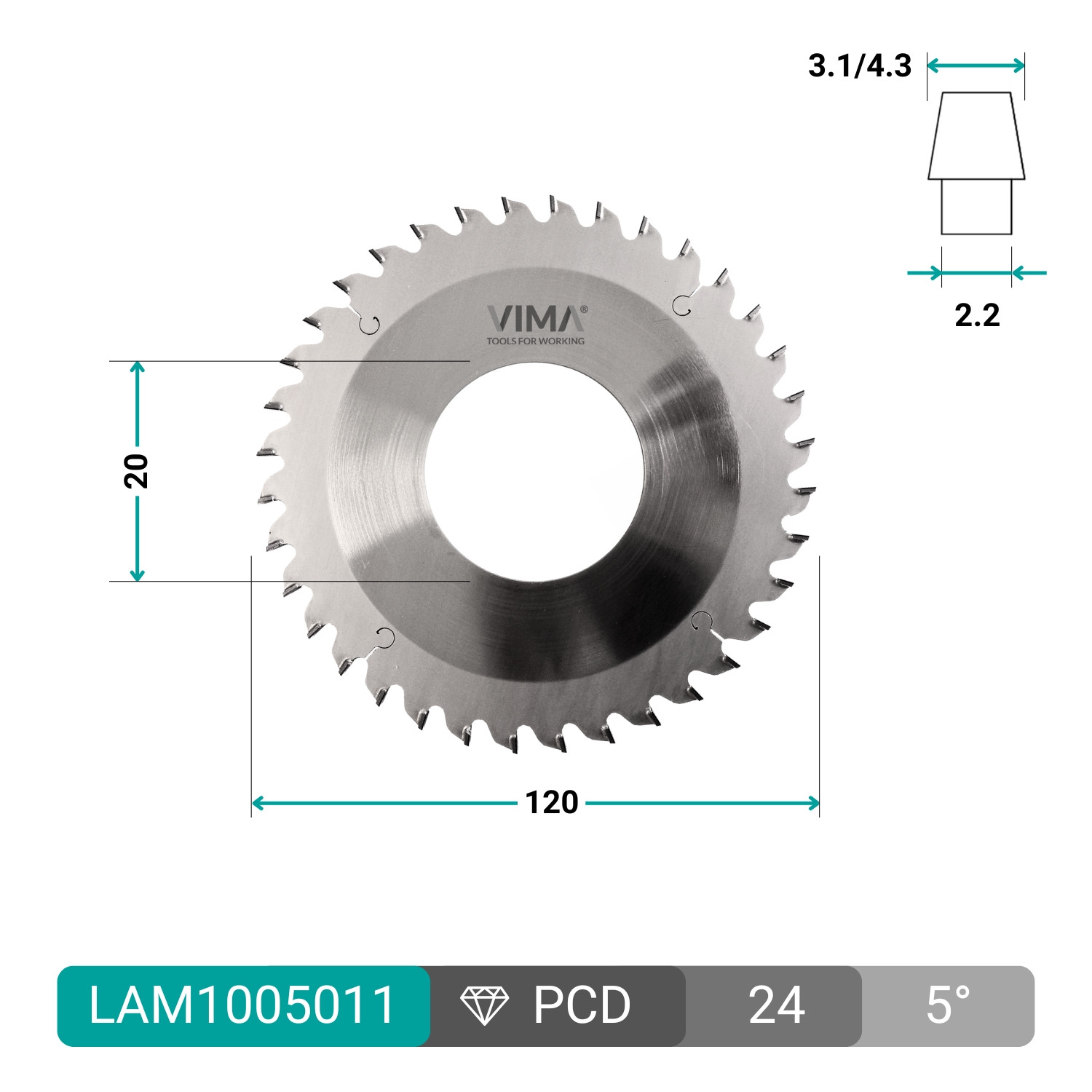

LAM1005011	120,00	20	3.1/4.3	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005012	120,00	22	3.1/4.3	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005013	120,00	20	3.4/4.6	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005014	125,00	20	3.1/4.3	2,20	-	24	PANHANS 693 EURO 5	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005015	125,00	22	3.1/4.3	2,20	-	24	MARTIN	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005016	125,00	20	3.4/4.6	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005018	125,00	20	3.4/4.6	2,20	-	24	PANHANS 693 EURO 5	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005021	125,00	45	3.4/4.6	2,20	-	24	GIBEN - HOMAG	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005022	140,00	16	3.4/4.6	2,20	1(6/33)	28	SCHEER FM	5°	0	~~€418.46~~ €292.92	-	cart
LAM1005024	140,00	45	3.4/4.6	2,20	-	28	EUROMAC	5°	0	~~€418.46~~ €292.92	-	cart
LAM1005025	140,00	45	3.4/4.6	2,20	-	24	-	5°	0	~~€368.44~~ €257.91	-	cart
LAM1005028	150,00	30	3.4/4.6	2,20	-	36	SCM	5°	0	~~€517.28~~ €362.10	-	cart
LAM1005031	150,00	45	3.4/4.6	2,20	-	36	SCM	5°	0	~~€517.28~~ €362.10	-	cart
LAM1005032	160,00	20	3.4/4.6	2,20	-	36	LANGZAUNER	7°	0	~~€517.28~~ €362.10	-	cart

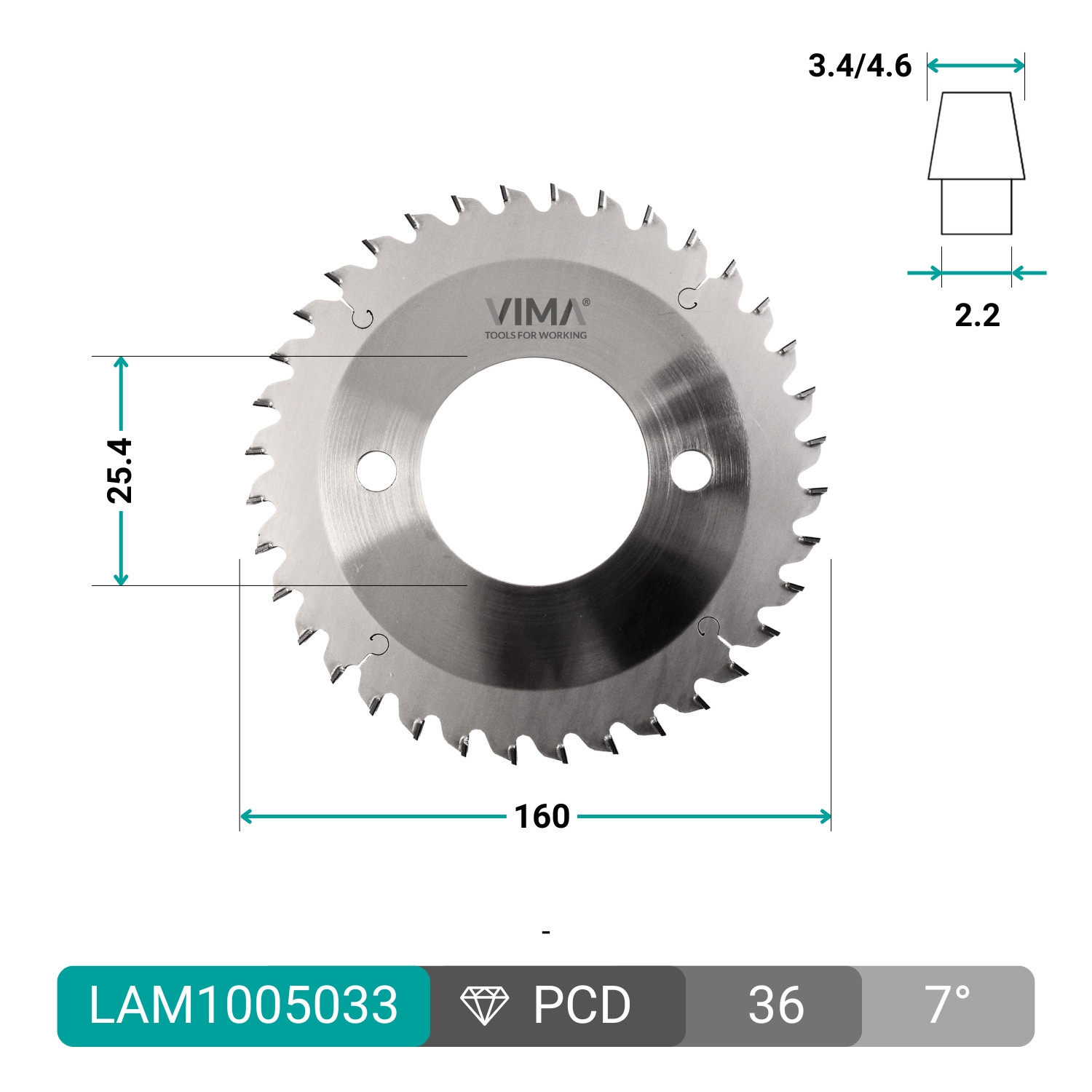

LAM1005033	160,00	25,4	3.4/4.6	2,20	-	36	-	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005034	160,00	30	3.4/4.6	2,20	-	36	LANGZAUNER	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005036	160,00	55	3.4/4.6	2,20	3(7/66)+3(6/84)	36	GABBIANI	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005037	160,00	60	3.4/4.6	2,20	3(7/80)	36	-	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005038	160,00	45	3.4/4.6	2,20	3(11/70)	36	GIBEN	7°	1	~~€517.28~~ €362.10	-	cart
LAM1005039	160,00	55	3.4/4.6	2,20	3(7/66)+3(9/72)	36	GABBIANI	7°	0	~~€517.28~~ €362.10	-	cart

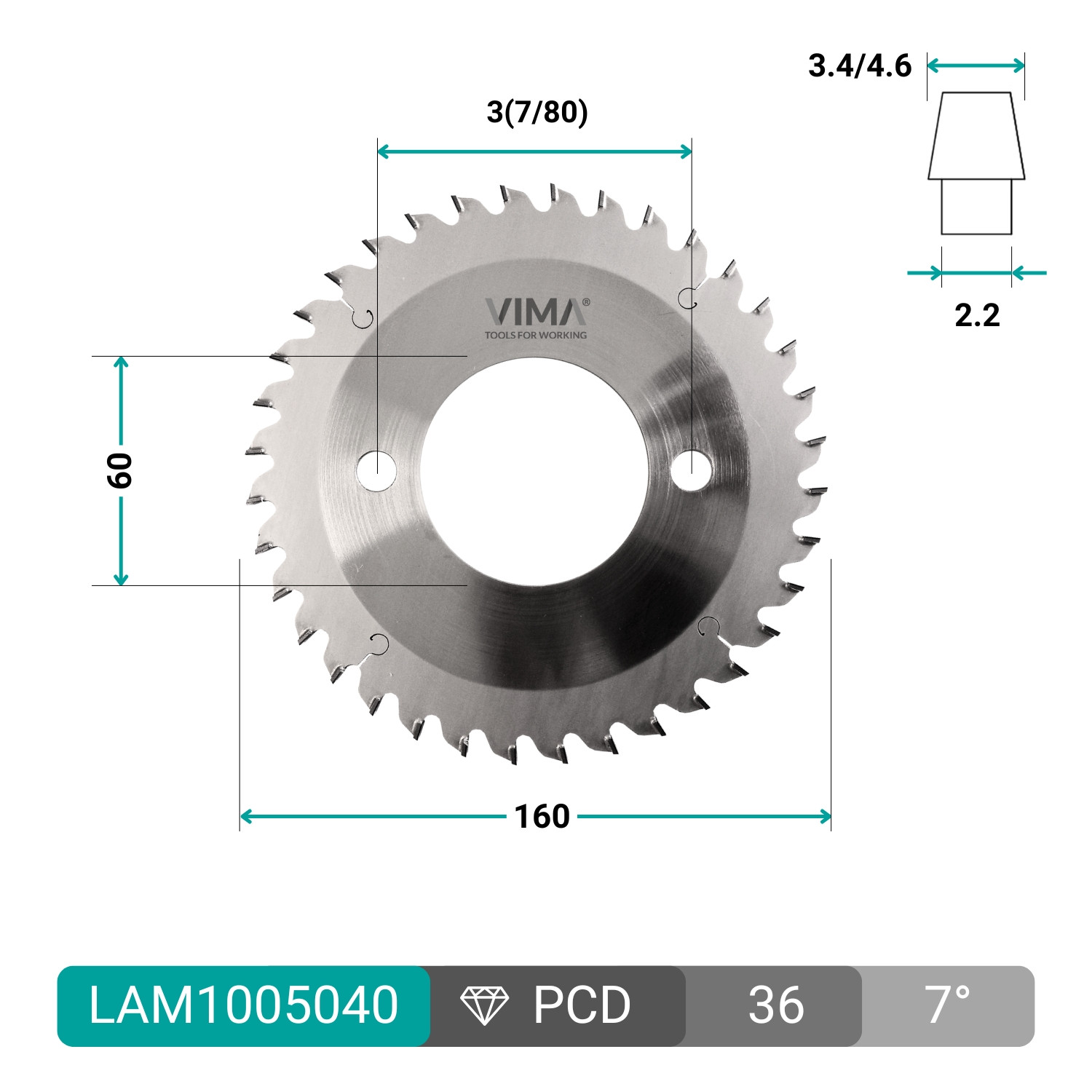

LAM1005040	160,00	60	3.4/4.6	2,20	3(7/80)	36	-	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005041	180,00	16	3.4/4.6	2,20	1(6/33)	42	SCHEER FM	7°	0	~~€591.70~~ €414.19	-	cart
LAM1005042	180,00	25,4	3.4/4.6	2,20	-	36	-	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005043	180,00	20	4.3/5.5	3,20	-	28	SCHELLING - ANTHON	7°	0	~~€418.46~~ €292.92	-	cart
LAM1005044	180,00	30	4.3/5.5	3,20	2(7/42)+2(10/60)	28	PANHANS 693	7°	0	~~€418.46~~ €292.92	-	cart
LAM1005045	180,00	45	4.3/5.5	3,20	-	36	HOLZMA	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005046	180,00	50	4.3/5.5	3,20	3(13/80)	36	GIBEN	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005047	180,00	20	4.3/5.5	3,20	-	36	SCHELLING - ANTHON	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005049	180,00	55	4.3/5.5	3,20	3(7/66)	36	GABBIANI	7°	2	~~€517.28~~ €362.10	-	cart

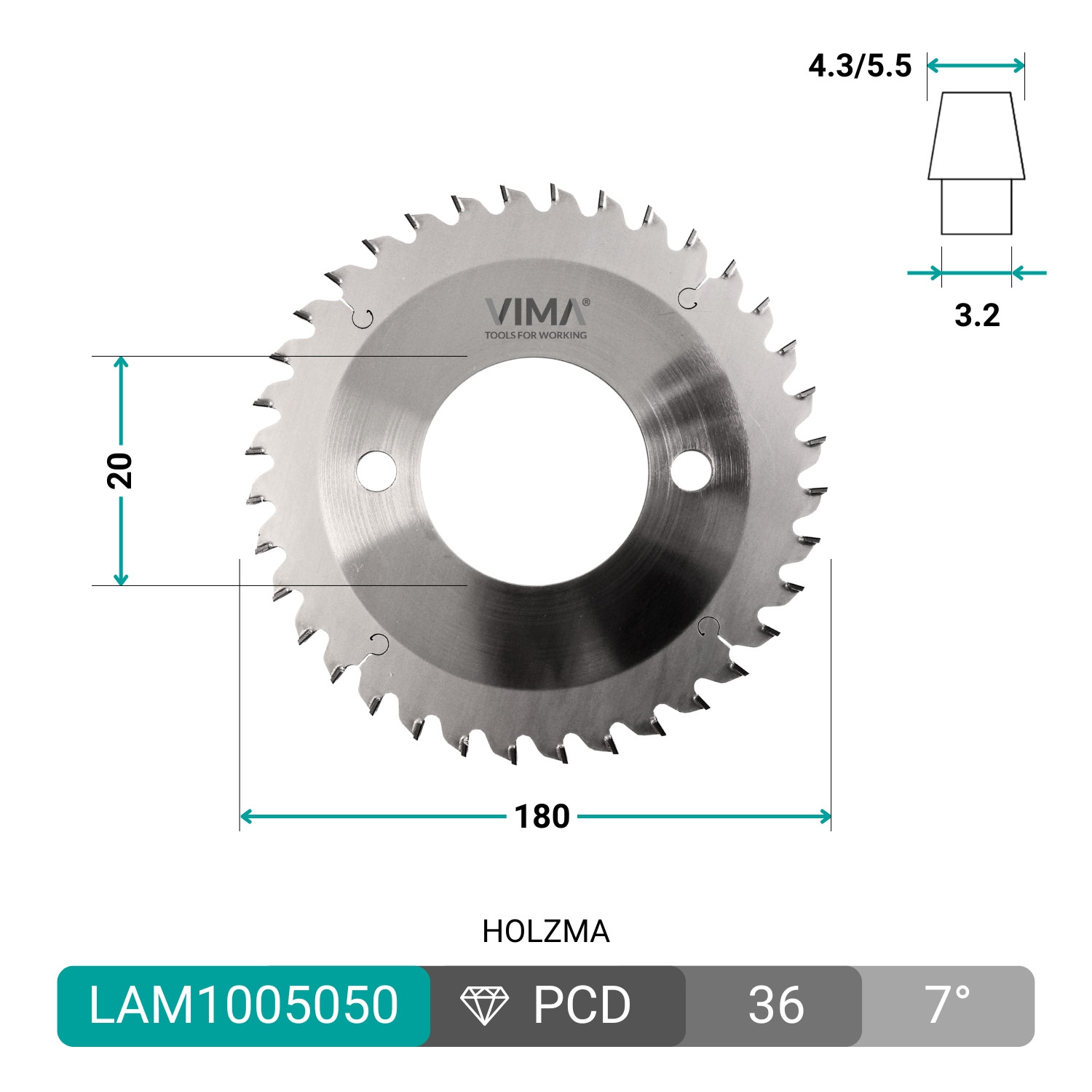

LAM1005050	180,00	20	4.3/5.5	3,20	-	36	HOLZMA	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005051	180,00	20	4.3/5.5	3,20	-	36	ANTHON LNC	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005055	200,00	45	4.3/5.5	3,20	-	36	HOLZMA	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005056	200,00	50	4.3/5.5	3,20	3(13/80)	36	GIBEN SMART	7°	0	~~€517.28~~ €362.10	-	cart

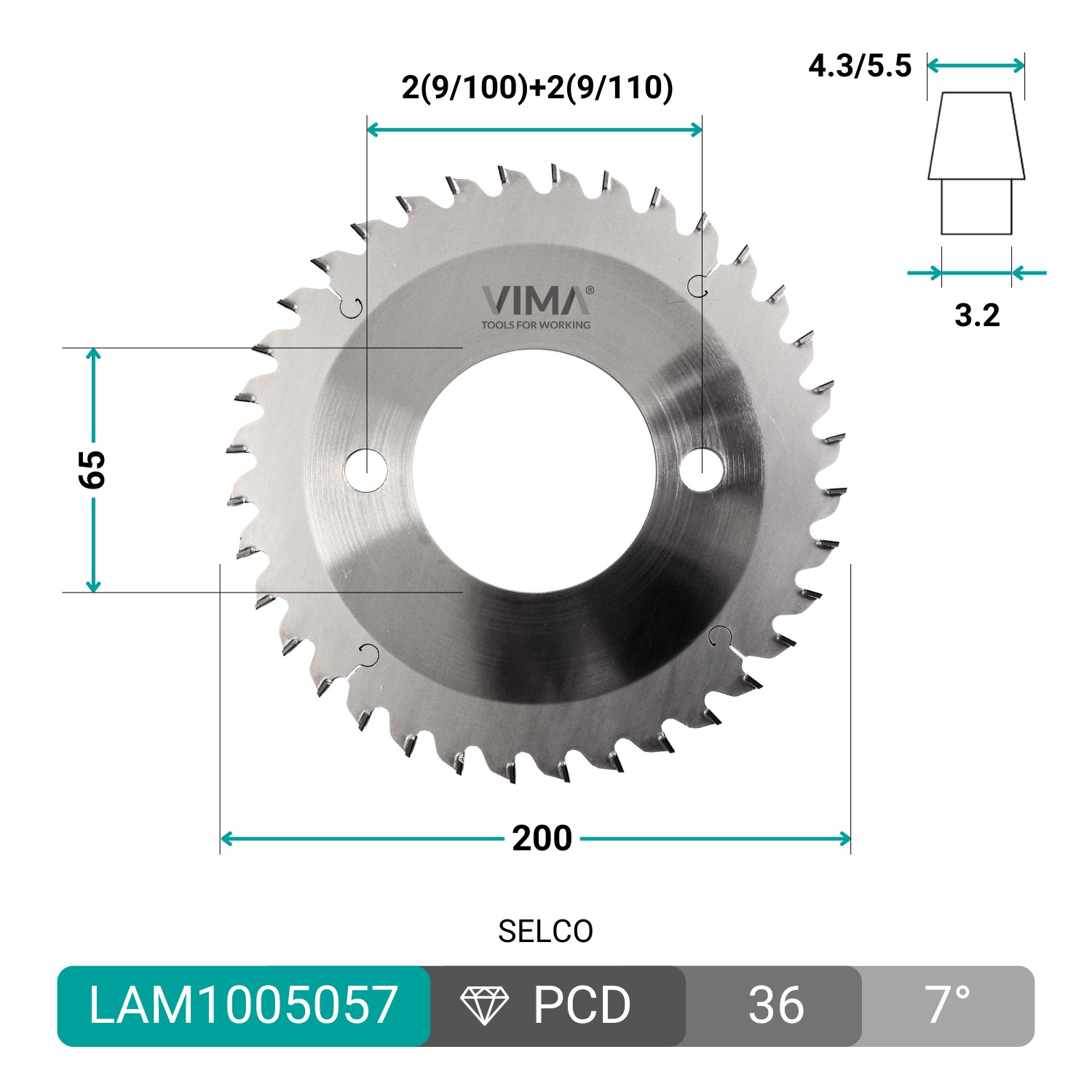

LAM1005057	200,00	65	4.3/5.5	3,20	2(9/100)+2(9/110)	36	SELCO	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005058	200,00	80	4.3/5.5	3,20	2(14/110)	36	GABBIANI	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005059	200,00	22	4.3/5.5	3,20	-	36	-	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005060	200,00	65	4.3/5.5	3,20	2(8,5/110)	36	SELCO	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005061	200,00	20	4.3/5.5	3,20	-	36	-	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005063	200,00	30	4.3/5.5	3,20	2(9/60)	36	SCHEER	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005065	200,00	65	4.3/5.5	3,20	2(9/100)+2(9/110)	36	SELCO	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005066	200,00	20	4.3/5.5	3,20	-	36	SCHELLING	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005069	200,00	20	4.3/5.5	3,20	-	36	SCHELLING	7°	0	~~€517.28~~ €362.10	-	cart
LAM1005071	215,00	50	4.3/5.5	3,20	2(7/80)	42	GIBEN	7°	0	~~€591.70~~ €414.19	-	cart
LAM1005072	215,00	50	4.3/5.5	3,20	3(15/80)	42	GIBEN	7°	0	~~€591.70~~ €414.19	-	cart

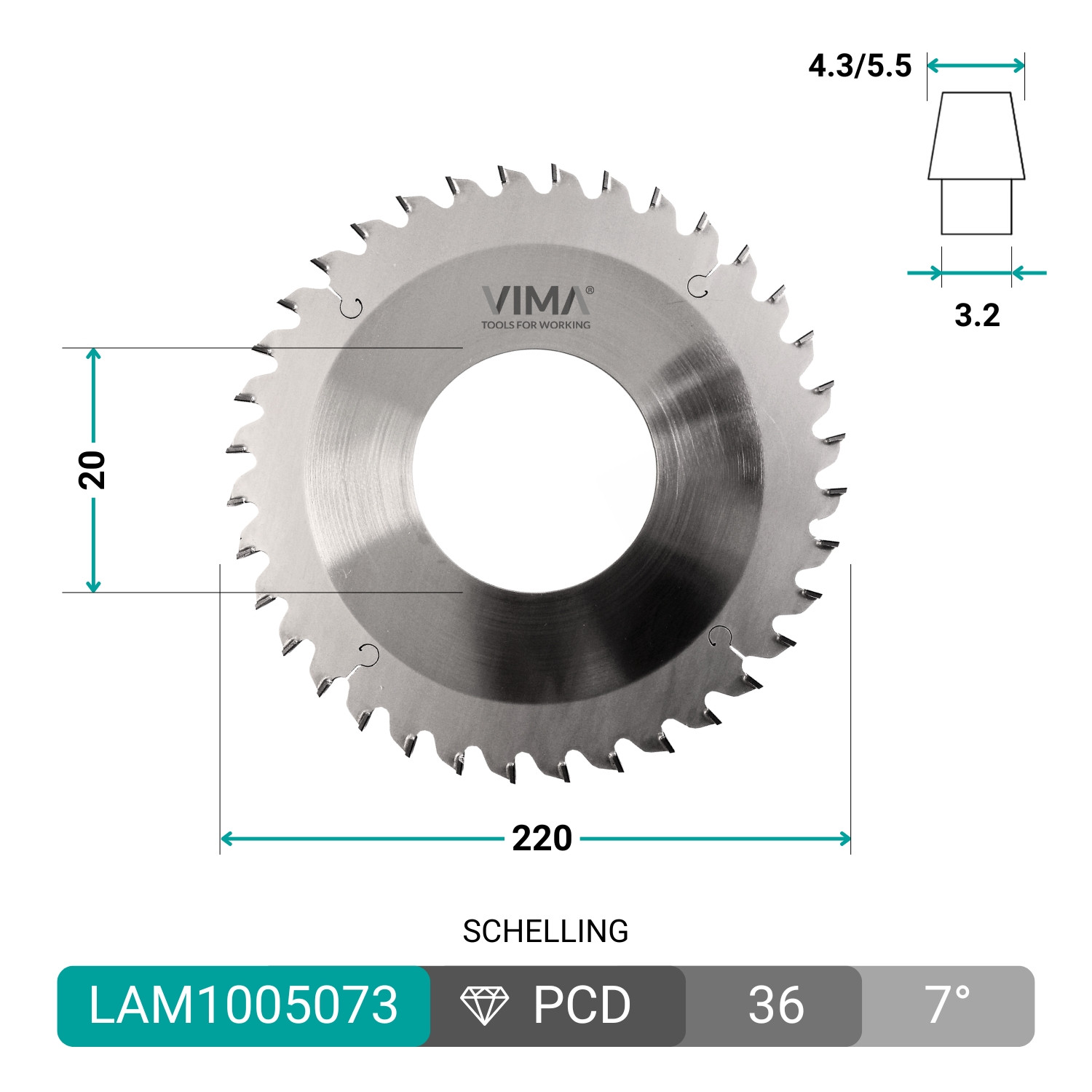

LAM1005073	220,00	20	4.3/5.5	3,20	-	36	SCHELLING	7°	0	~~€517.28~~ €362.10	-	cart

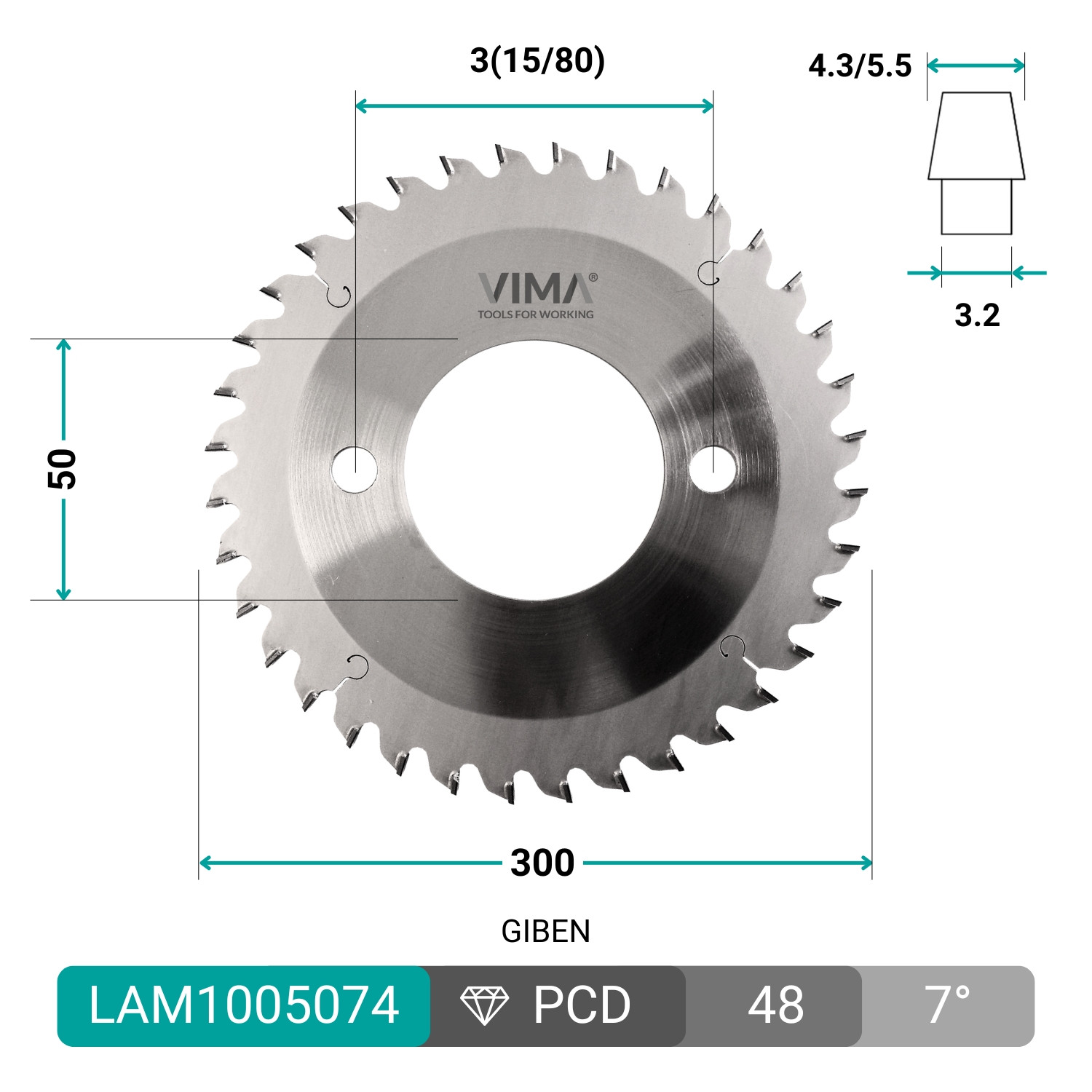

LAM1005074	300,00	50	4.3/5.5	3,20	3(15/80)	48	GIBEN	7°	0	~~€666.12~~ €466.28	-	cart
LAM1005075	300,00	65	4.3/5.5	3,20	2(9/110)	72	SELCO	7°	0	~~€963.80~~ €674.66	-	cart
LAM1005076	300,00	80	4.3/5.5	3,20	2(14/110)	72	-	7°	0	~~€963.80~~ €674.66	-	cart

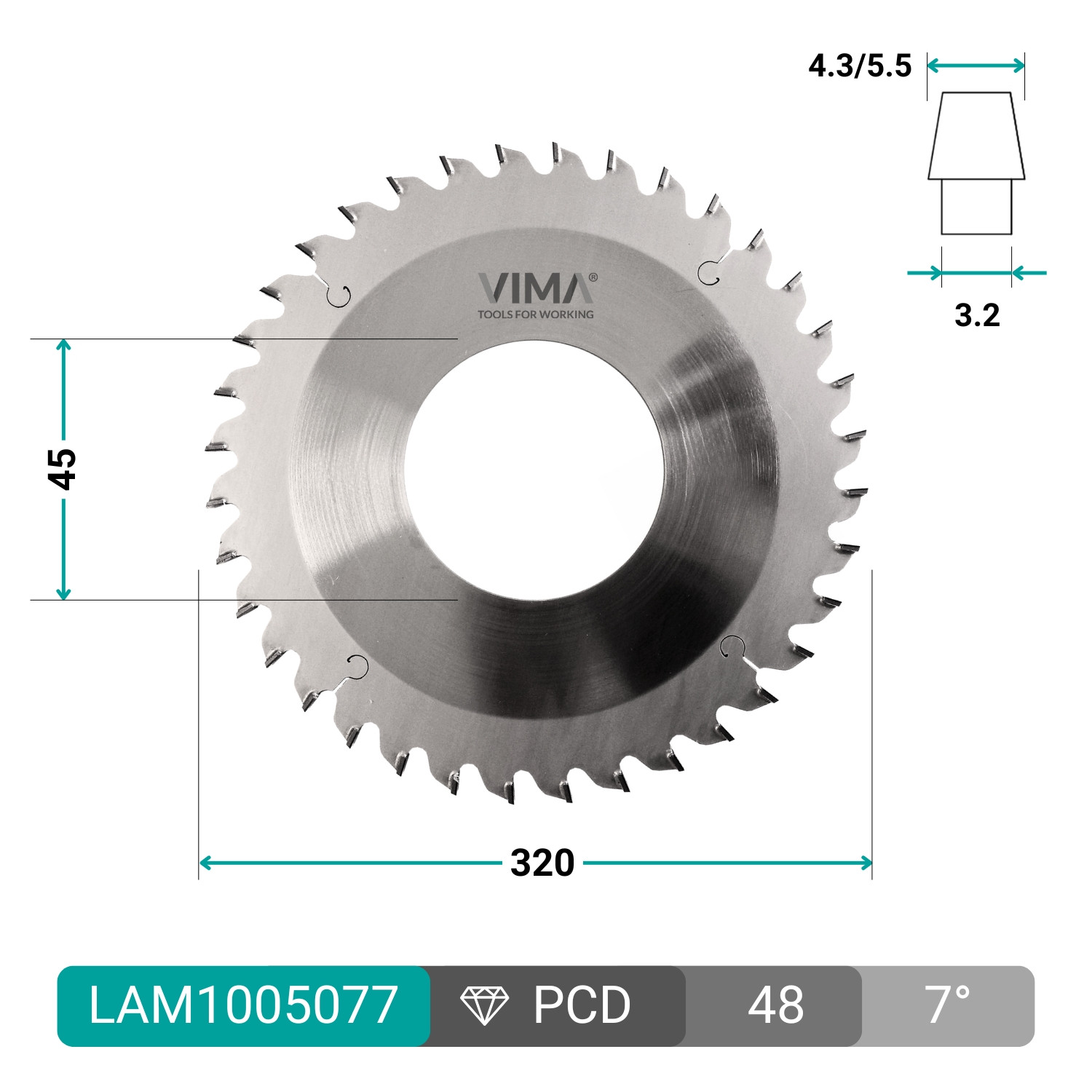

LAM1005077	320,00	45	4.3/5.5	3,20	-	48	-	7°	0	~~€666.12~~ €466.28	-	cart
LAM1005079	320,00	50	4.3/5.5	3,20	3(15/80)	48	-	7°	0	~~€666.12~~ €466.28	-	cart
LAM1005080	340,00	45	4.7/5.9	3,50	3(14/65)	72	HOLZMA	7°	0	~~€963.80~~ €674.66	-	cart

VAT included if applicable. EU customers registered in VIES and non-EU customers will see prices excluding VAT after registration and approval by an administrator.

WhatsApp support +39 349 7760165 Products available in stock, H24 shipping. Delivery is estimated to arrive in 3/5/10 days.

WhatsApp support +39 349 7760165

Products available in stock, H24 shipping

Delivery is estimated to arrive in 3/5/10 days

Description
Product Details

Description

The LAM1005 TOPCUT 2 series is a PCD H4 diamond scoring blade developed for professional pre-scoring of laminated boards, MDF, HDF, chipboard, plastics and composite materials. The 4 mm PCD height ensures long service life, while the conical sharpening delivers controlled and progressive cutting ideal for decorative or coated surfaces. Low-noise behavior improves stability and reduces vibration under MAN and MEC feed conditions.

Main features:

4 mm PCD diamond layer for long durability
Conical geometry for chip-free scoring
Positive cutting angle for stable penetration
Low-noise performance
Suitable for height-adjustable scoring units
Ideal for laminated and coated panels
Industrial-grade construction Made in Italy

Benefits:

The PCD H4 scoring blade ensures clean edges, extended lifespan and excellent accuracy on bilaminated or abrasive materials.

Compatible materials: aluminum, Alucobond, Alupanel, Bakelite, carbon fiber CRFC, drywall, Dibond, fiber cement, HPL, kevlar, MDF, HDF, laminated boards, chipboard, plastics, plexiglass and painted surfaces.

Product Details

BrandMicrotech

ReferenceLAM1005001

In stock0 Items

Data sheet

H PCD	H 4MM
CUTTING TYPE	DIA
SHARPENING GEOMETRY	KON
LOW NOISE	LOW NOISE
FEEDING SYSTEM	MAN MEC
TYPE OF PROCESSING	SIZING
CUTTING ANGLE	POSITIVE
WORKABLE MATERIALS	Alucobond Aluminum Alupanel Bakelite CRFC Carbon Dibond Drywall Fiber cement HPL Kevlar Laminate plywood Light wood MDF HDF MDF HDF double-sided laminated MDF HDF laminated Painted Particle board Particle board double face laminate Particle board laminate Plaster fiber Plastic Plexiglass Plywood Plywood double face laminate

PCD H4 diamond scoring blade
