STARCUT

Helical PCD router bit designed for contouring on pantographs and CNC machines. The 30° axial angle ensures superior edge finishing and excellent surface quality on coated panels.

• PCD inserts H 4.5 mm, regrindable up to 8 times
• Z2+2 geometry for precise, stable contours
• 30° axial angle for high-quality finishes

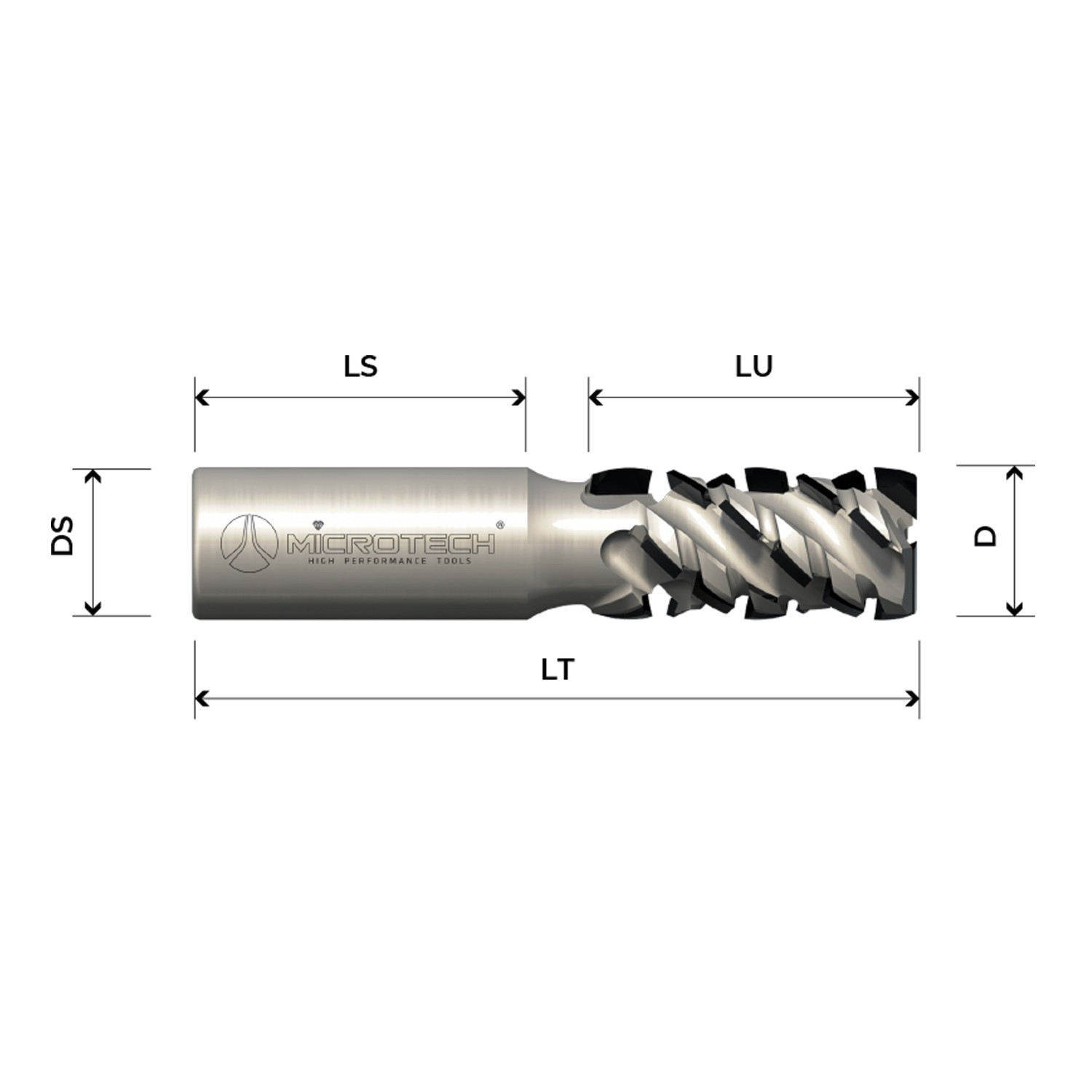

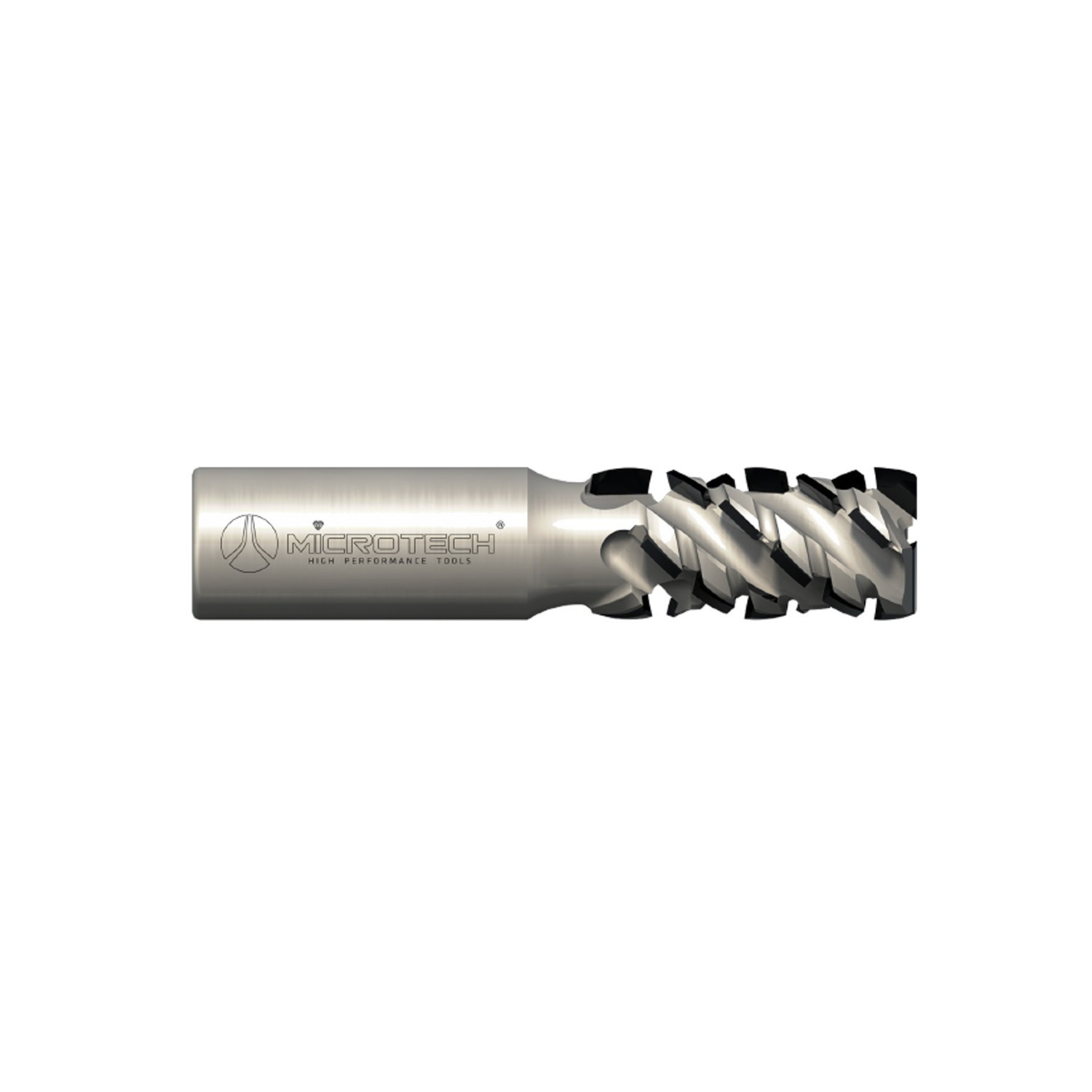

Z2+2 PCD CNC router bit with a 45° axial angle, designed for high-precision contouring on wood-based panels and engineered materials. Polycrystalline diamond delivers premium finishing and extended tool life, even on abrasive substrates.

• PCD cutting edge H 4.5 mm for long service life
• 45° axial angle for clean, stable finishing
• Ideal for MDF, plywood and coated panels

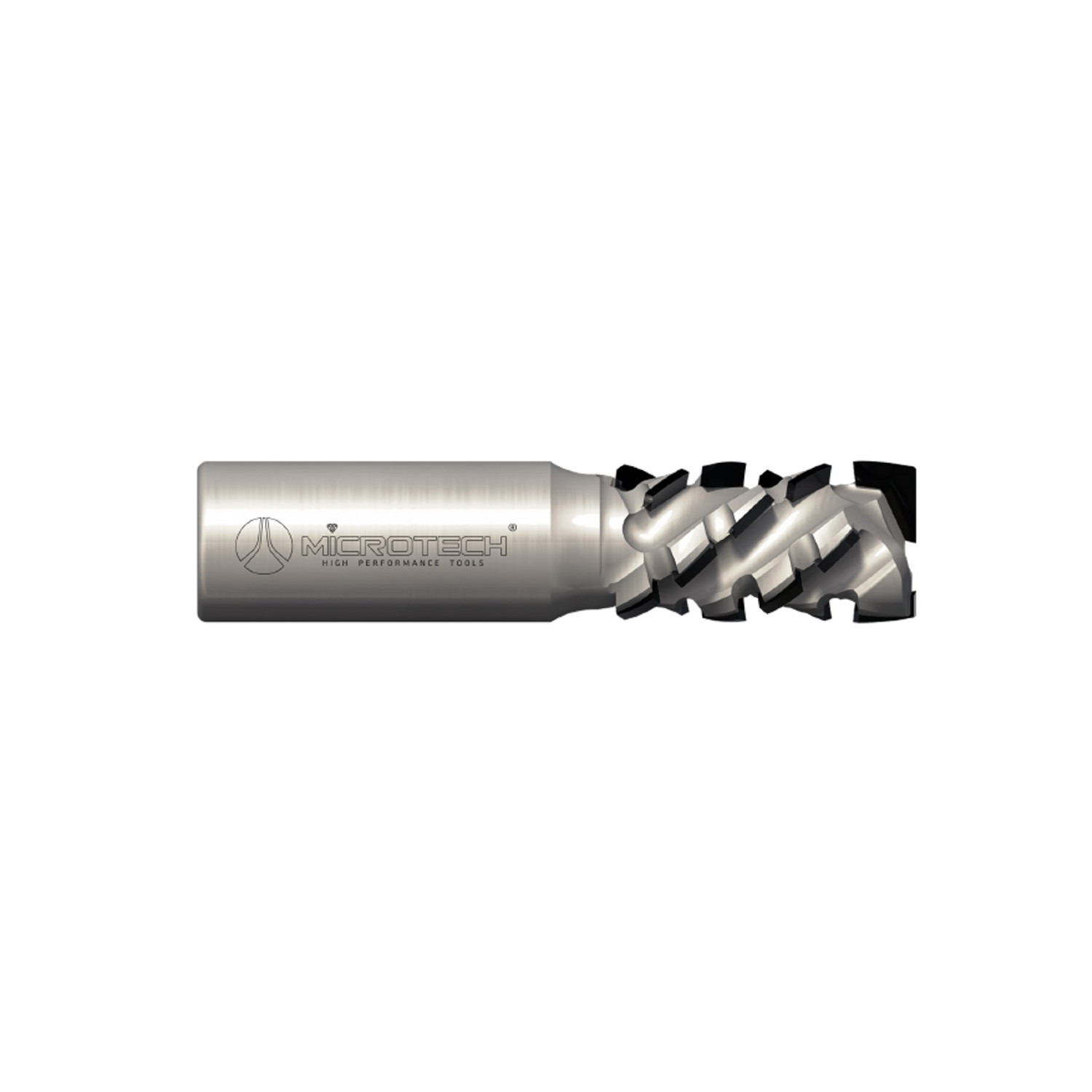

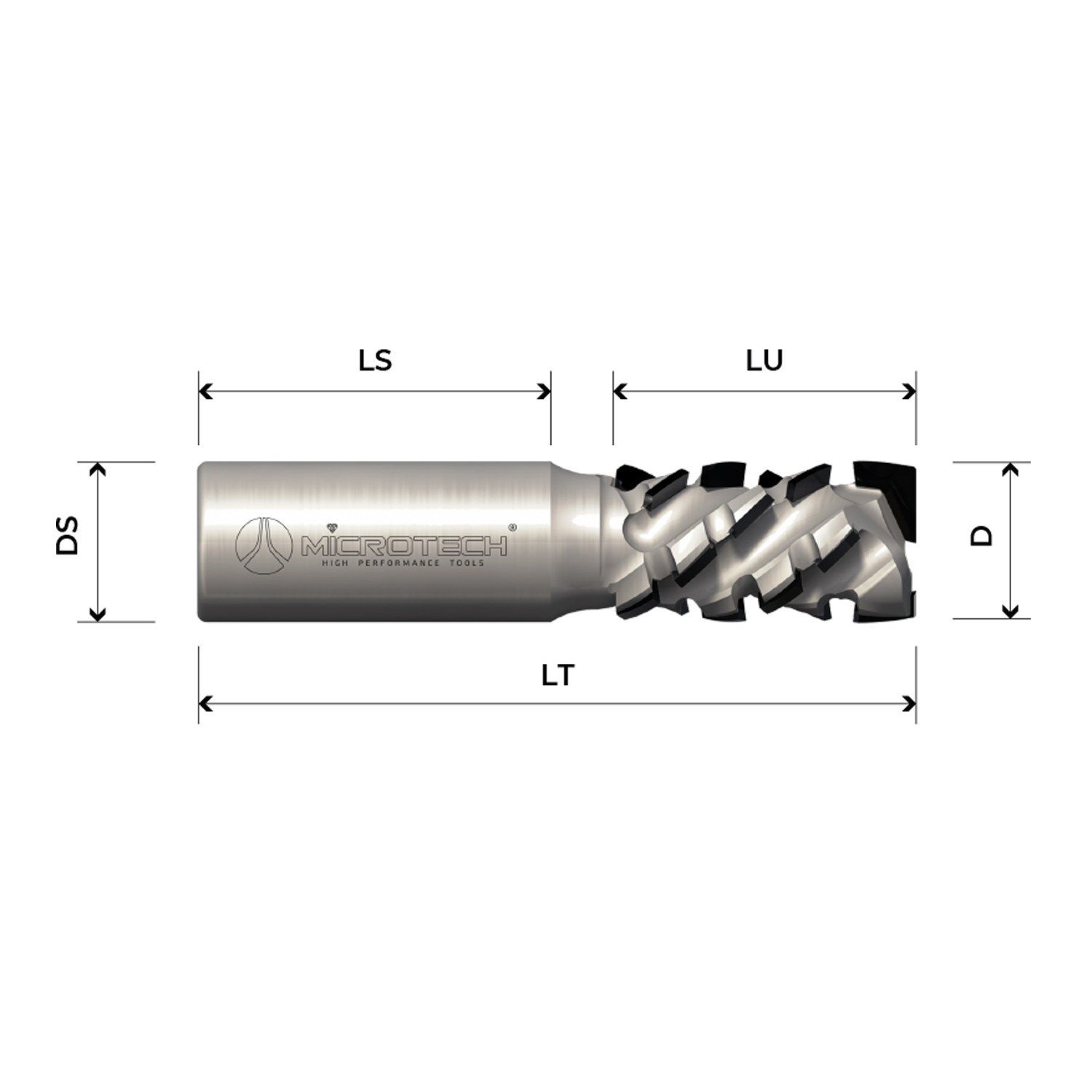

PCD diamond pantograph router bit H 4.5 mm designed for high-precision CNC contouring on wood-based panels and engineered materials.

• Regrindable PCD cutting edge for long service life
• 45° axial angle for a clean finish
• Ideal for MDF, chipboard and plywood

PCD diamond cutter with right/left double rotation designed for contouring laminated panels where high surface quality on both sides is required. The combination of positive and negative cutting edges ensures balanced cutting action, stability and reduced chipping.

• PCD inserts 4.5 mm regrindable up to 8 times
• Right/left double rotation for superior top and bottom finish
• Special steel body for rigidity and precision

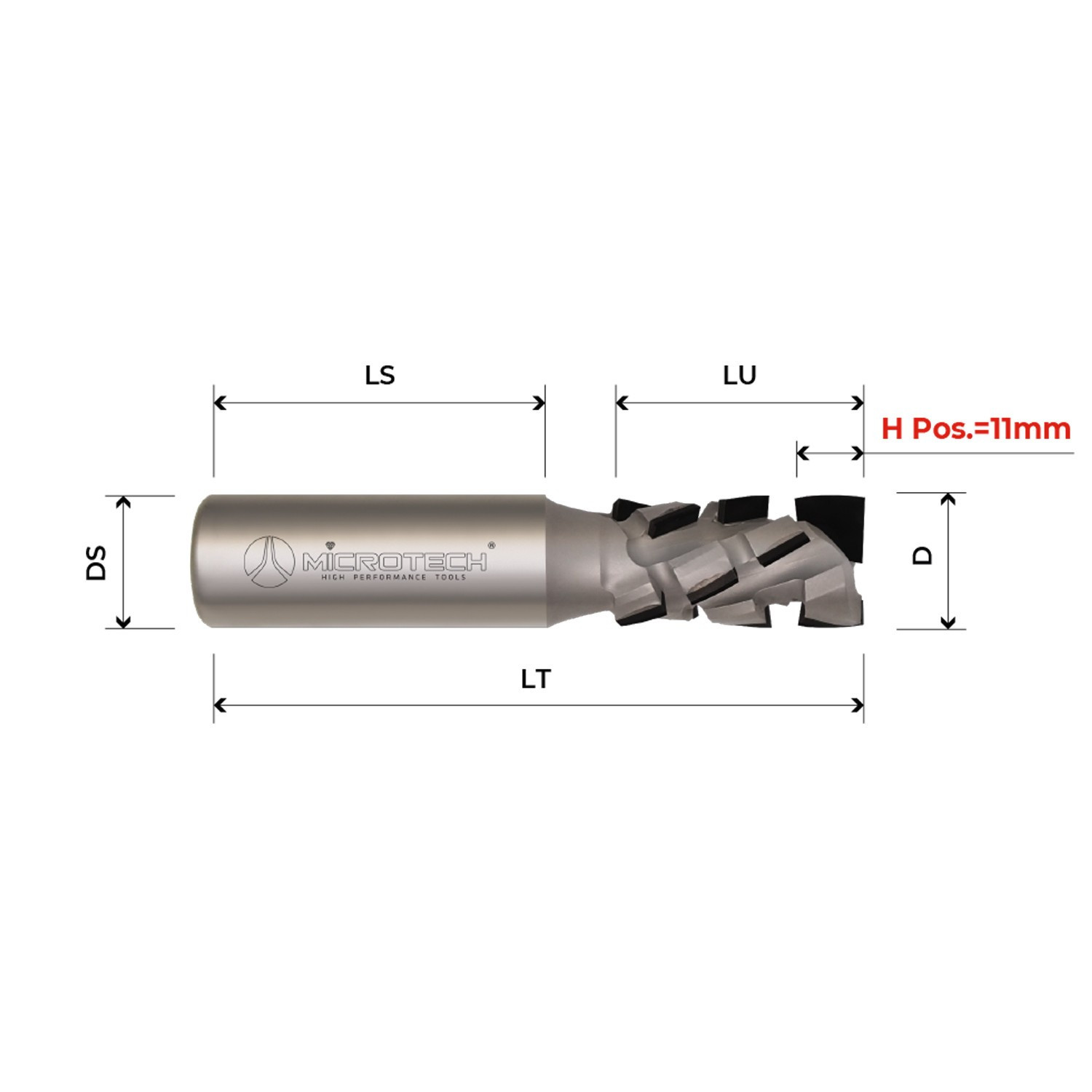

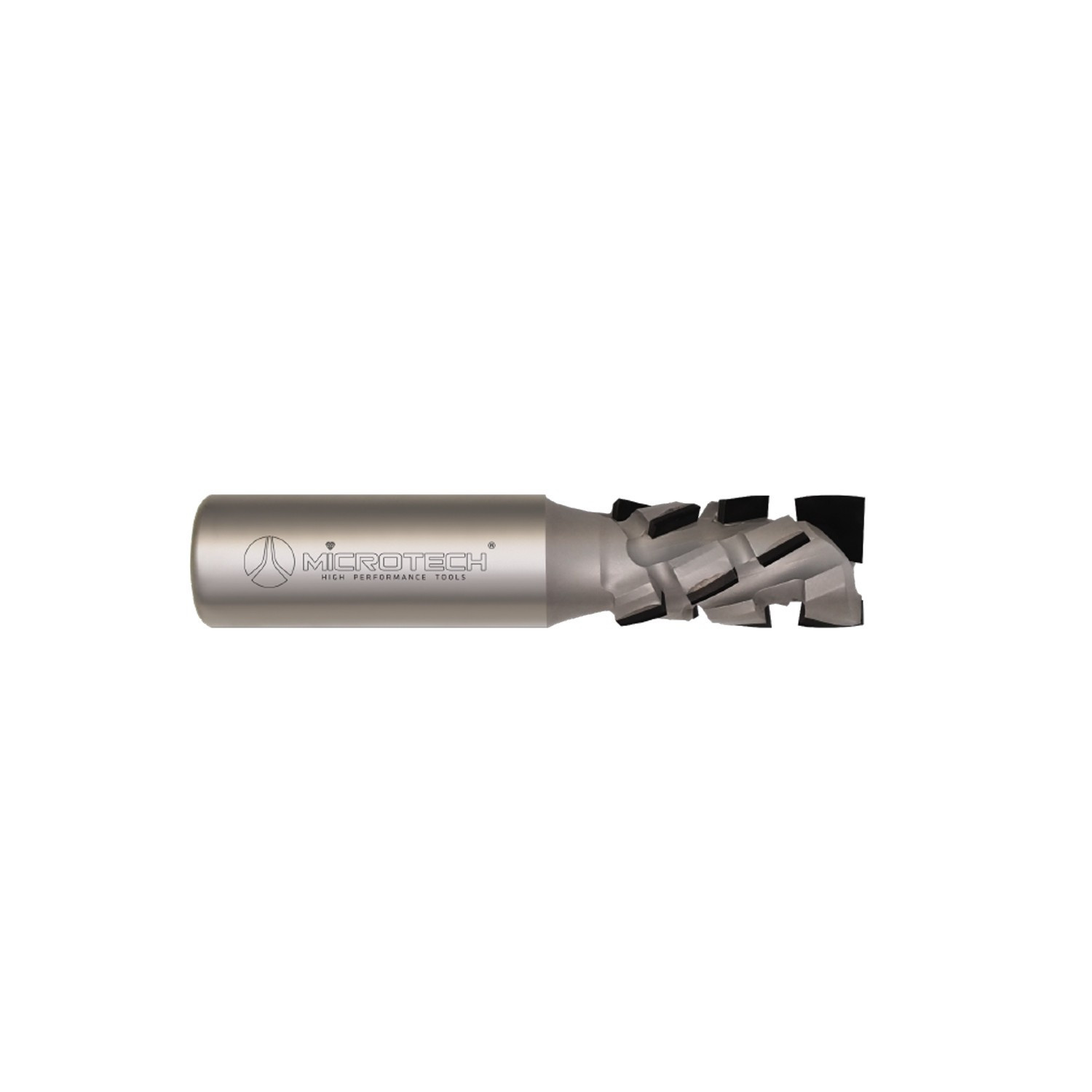

PCD helical diamond router bit Z2+2 designed for machining thin panels with mechanical feed. The 5mm positive pulling lead insert improves entry, while the following negative inserts increase stability and control, delivering excellent finishes on delicate and coated surfaces.

• PCD H4.5mm resharpenable up to 8 times for long tool life
• 5mm positive lead PCD for clean cutting on thin panels
• 30° axial angle and 4 helical divisions for finish and chip evacuation

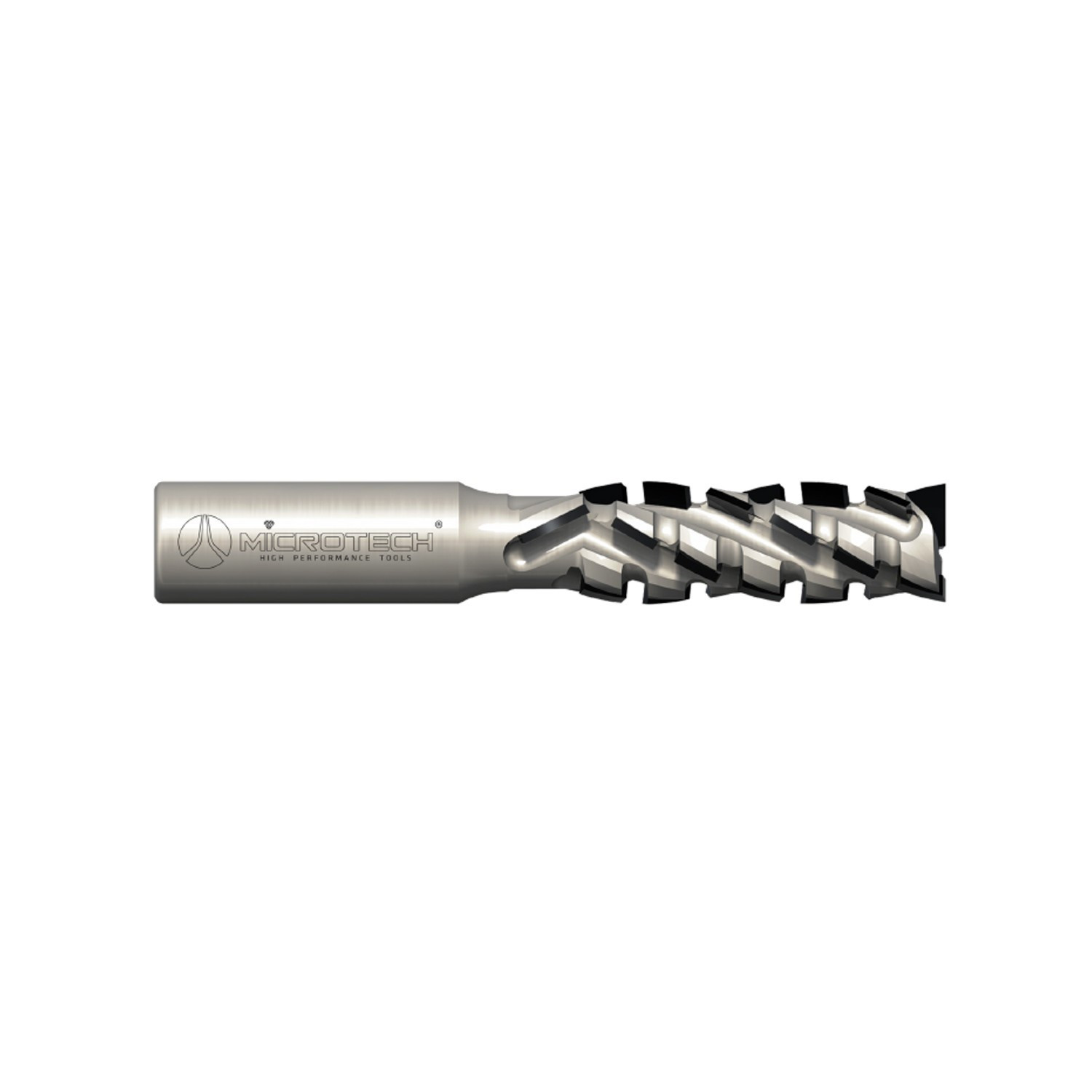

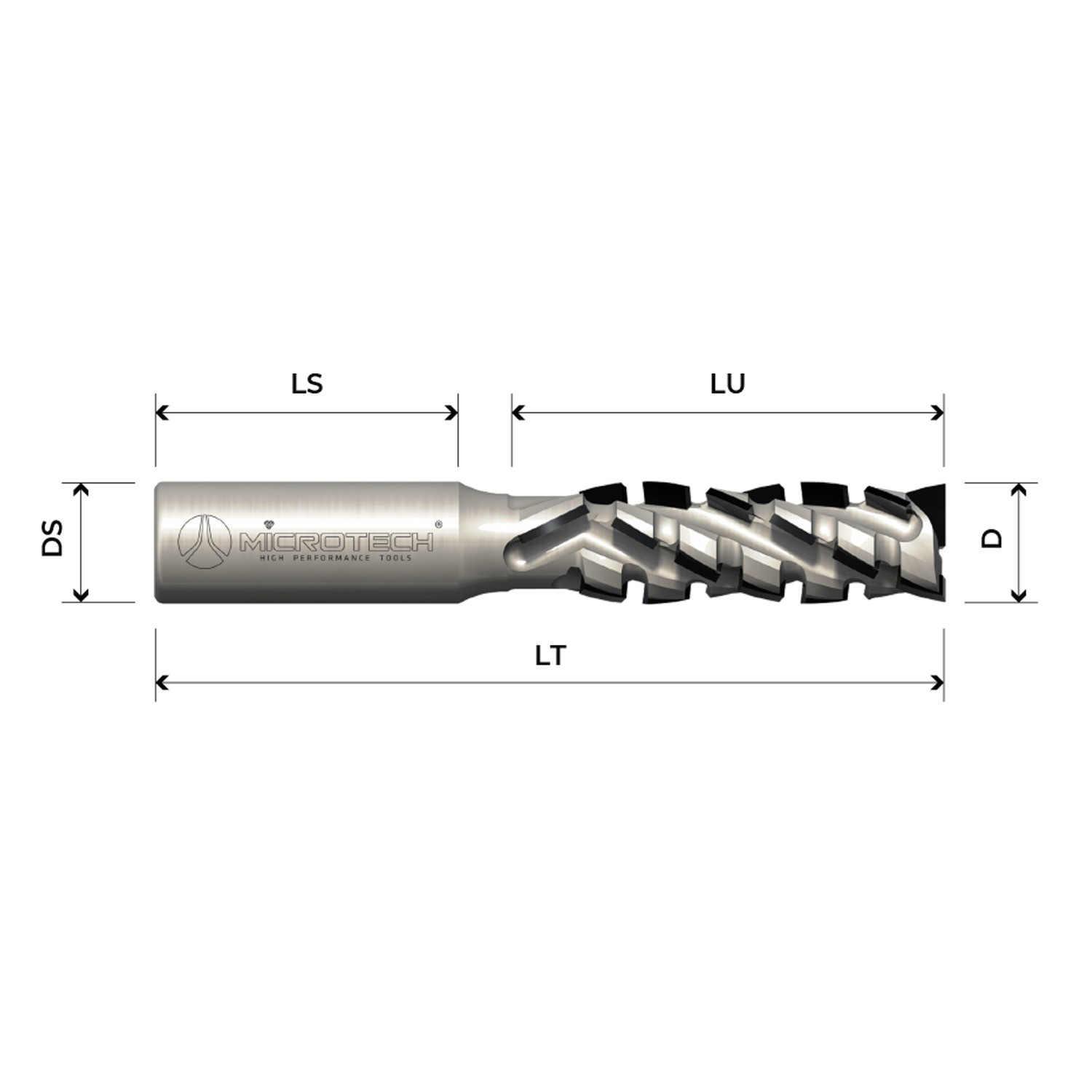

Helical CNC PCD router bit designed for contouring on pantographs and CNC machines. The predominantly positive axial geometry combined with a 30° axial angle promotes efficient chip evacuation toward the shank and superior surface finishes on panels.

• PCD inserts H 4.5 mm, regrindable up to 8 times
• Z2+2 geometry for stable, precise contours
• 30° axial angle for high-quality finishing

PCD diamond tool developed for edge finishing and trimming on laminated panels where high edge quality is required. The helical layout with centre-converging symmetry and 40° axial angle delivers stable cutting and a uniform surface even in intensive CNC cycles.

• PCD inserts H 4.5 mm regrindable up to 8 times
• 8 helical divisions with symmetric geometry for consistent finish
• Steel body for rigidity and accuracy with mechanical feed
